6-11

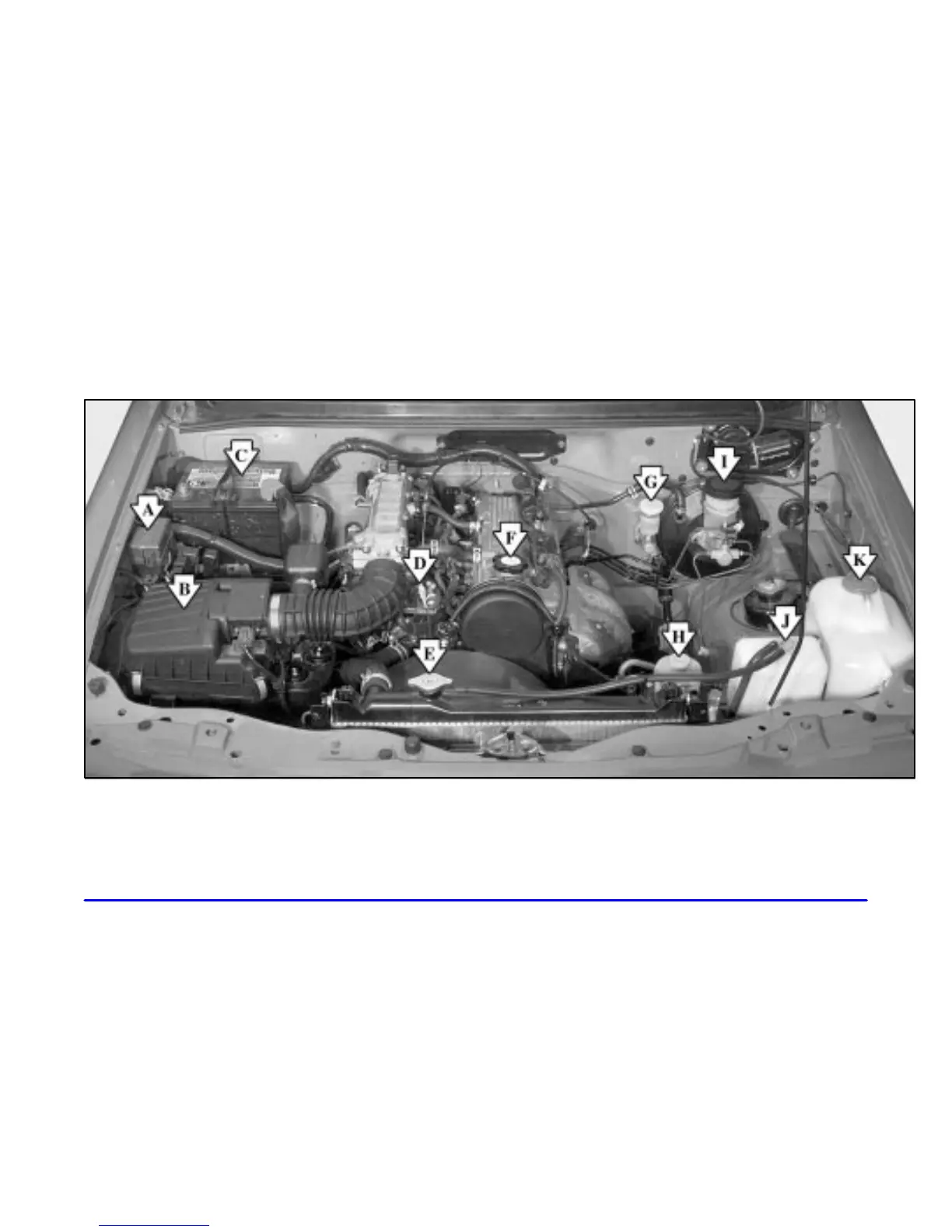

Engine Compartment Overview
When you open the hood on the 1.6L engine, you’ll see:
A. Main Fuse Box
B. Engine Air/Cleaner Filter
C. Battery
D. Engine Oil Dipstick
E. Radiator Pressure Cap
F. Engine Oil Fill Cap
G. Clutch Master Cylinder
Reservoir (If Equipped)
H. Power Steering Fluid Reservoir
I. Brake Fluid Reservoir
J. Engine Coolant Recovery Tank
K. Windshield Washer Reservoir
