5-30 Instruments and Controls

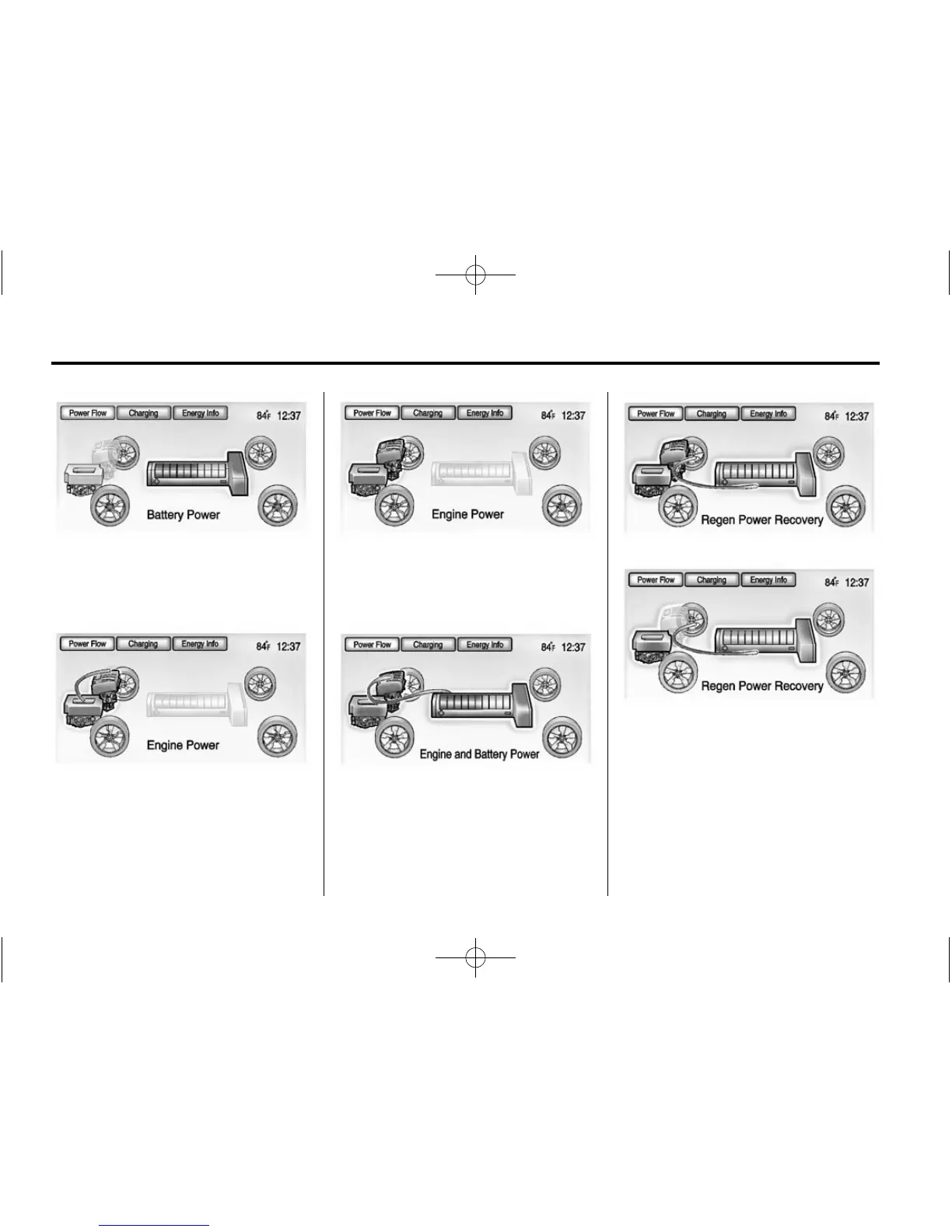

Battery Power ‐ Vehicle is stationary
in electric mode and no power is
flowing to the wheels.
Engine Power ‐ Engine is active
with energy flowing to the wheels.
Engine Power ‐ Vehicle is stationary
in extended range mode and no
power is flowing to the wheels.
Engine and Battery Power ‐ Both
the engine and battery are active
with energy flowing to the wheels.
Regen Power Recovery ‐ Power
from the wheels returns to the
battery during regenerative braking
or coasting.
