10-28 Vehicle Care
8. Reconnect the wiring harness
connector.
9. Install the cover on the back of
the headlamp assembly by
turning it clockwise.
10. Install the air cleaner assembly
by lowering the three retention
posts into the grommets.
11. Install the engine air cleaner/
filter assembly cover. See
Engine Air Cleaner/Filter on
page 10‑12.

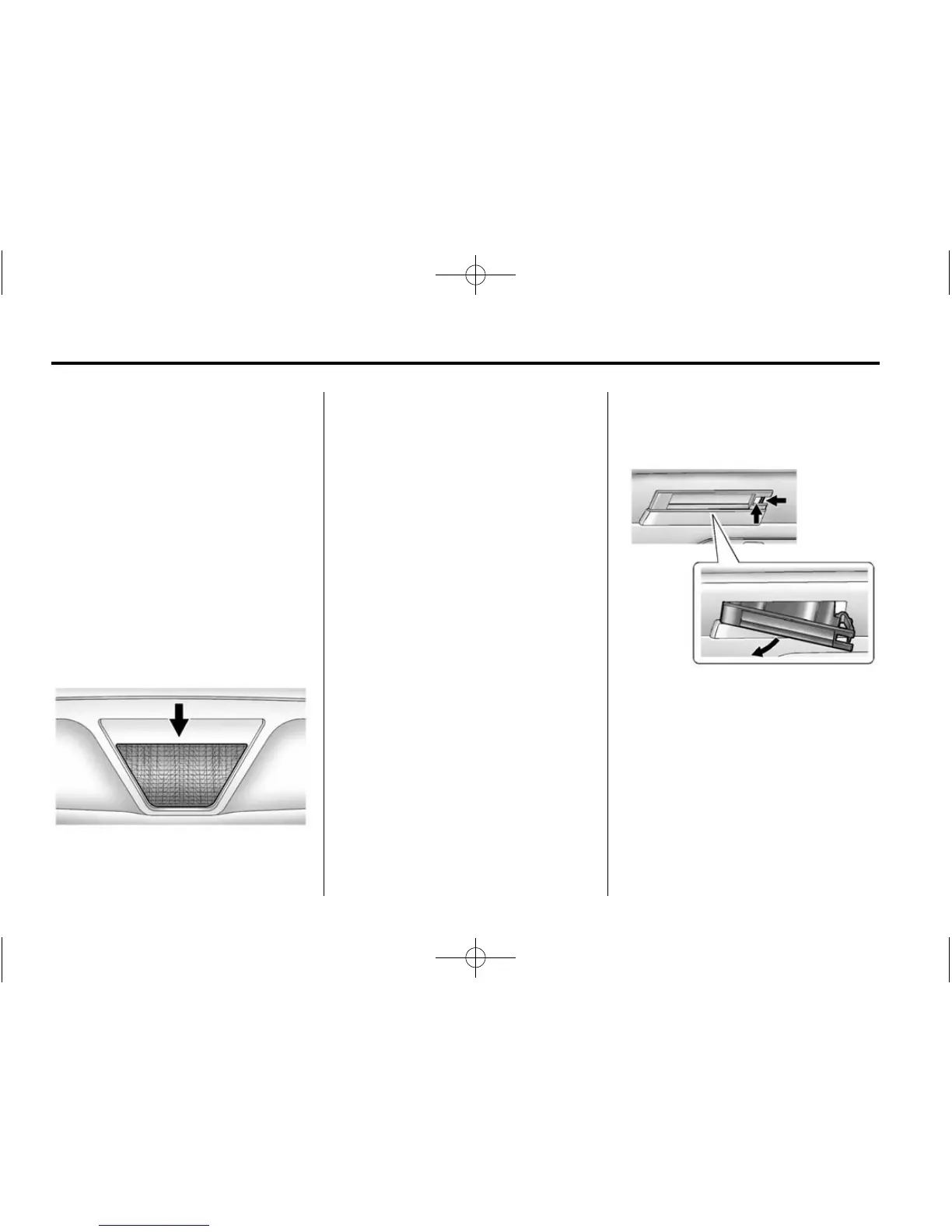

Back-Up Lamps
The back-up lamp is in the rear
fascia.
To replace a bulb:
1. Remove the three inboard
screws from the aero panel
located under the rear fascia.
2. Push up on the aero panel to
locate the bulb socket.
3. Turn the bulb socket
counterclockwise to remove it
from the bulb assembly.
4. Pull the bulb from the bulb
socket.
5. Push a new bulb straight into the
bulb socket.
6. Reinstall the bulb socket by
lining up the tabs in the lamp
assembly and turn it clockwise
to lock it into place.
7. Replace the three inboard
screws from the aero panel.
License Plate Lamp
To replace one of these bulbs:
1. Press the spring clip on the right
end of the lamp assembly to the
left to unlock the lamp assembly.
2. Pull down on the lamp assembly
to remove it from the fascia.
