Chicago Pneumatic CP2003 - Page 2

Model
Free speed
Torque
Dimension
LxHxA
Weight
Air Consumption
Air Inlet
Inner Hose
Dia.
Sound pressure
L
pA
Soundpower
L
wA
Vibrations
Min Max at load
a
hd
K
1 2 3 4 5 6 7 8 9 10 11
[min-1] [Nm]
[Nm]
[inch]
[mm]
[lb]
[kg]
[l/min]
[SCFM]
[inch]
[inch]
[mm]
[dB(A)] [dB(A)] [m/s²] [m/s²]
CP2003 1,100 0.3 - 0.4 1.1 - 1.5
7.7 x 0.59
197 - 15
0.9
0.4
240
8.5
1/8 BSP
3/8“
9.5
73 84 >2.5 -
CP2005 1,100 0.3 - 0.4 3.2 - 4.3
7.2 x 5.6 x 0.67
182 x 143 x 17
1.8
0.8
390
13.8
1/8 BSP
3/8“
9.5
76 87 >2.5 -
CP2007 1,100 0.3 - 0.4 3.2 - 4.3
9.8 x 0.59
250 x 15
1.3
0.6
390
13.8
1/8 BSP
3/8“
9.5
81 92 >2.5
CP2008 1,100 0.3 - 0.4 3.2 - 4.3
10.8 x0.63
275 x 16
1.5
0.7
390
13.8
1/8 BSP
3/8“
9.5
76 87 >2.5 -
CP2010 1,470 1.5 - 2 4.1 - 5.5
10.0 x 0.67
253 x 17
2
0.9
390
13.8
1/8 BSP
3/8“
9.5
76 87 >2.5 -
CP2011 1,000 1.5 - 2 4.1 - 5.5
10.9 x 0.67
278 x17
2
0.9
13.8
6.5
1/4 BSP
3/8“
9.5
73 84 >2.5 -
Ø 6 mm Min.
Ø 5 mm Min.
Ø 12.5 mm
P Max.
= 6.3 bar
3m

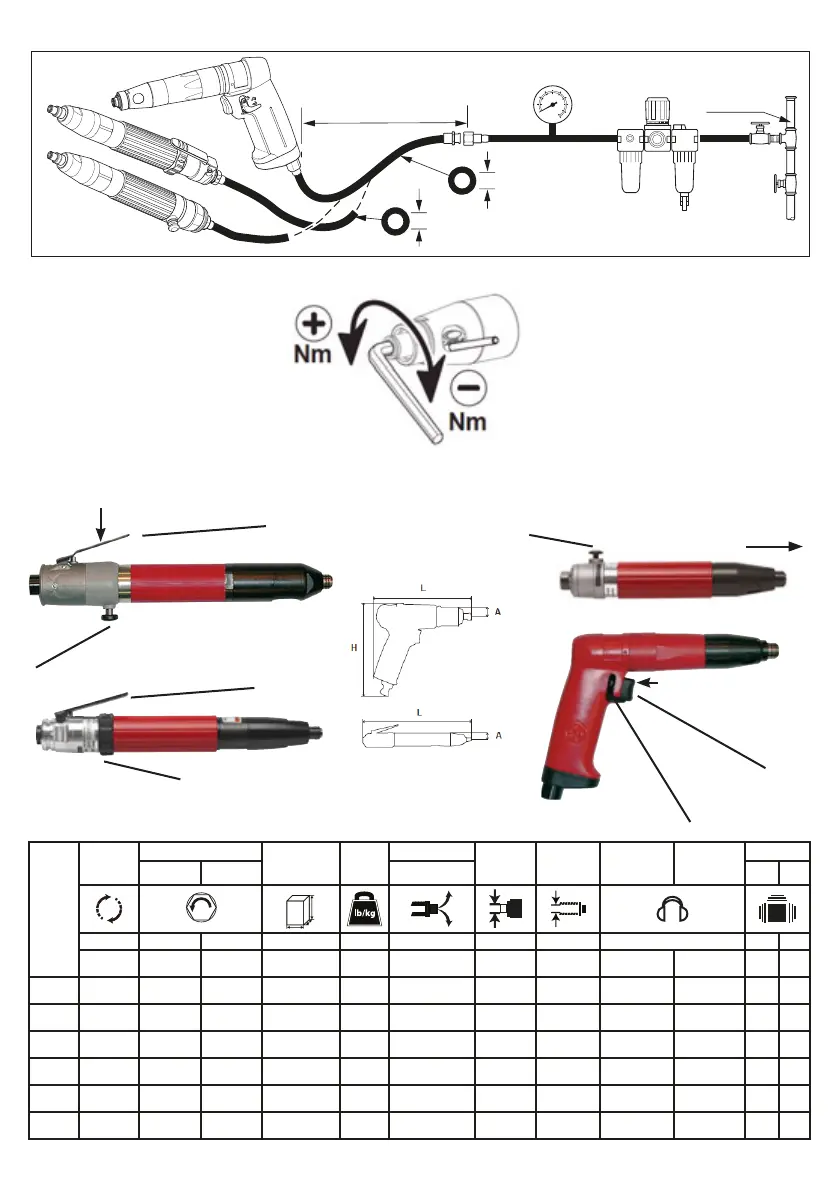

AIR DIAGRAMM
FIG 01
FIG 03
A
A
B
Start
Start
Push-to-start
B
B
A
B
FIG 02
Torque Adjustment / Drehmomenteinstellung / Vääntösuunnan valinta / Ajuste de par torsión / Ρυθμιση ροπης / Naravnavanja
vrtilnega momenta / Val av rotationsriktning / Regolazione della coppia / Réglage du couple/ instelling draaimoment
