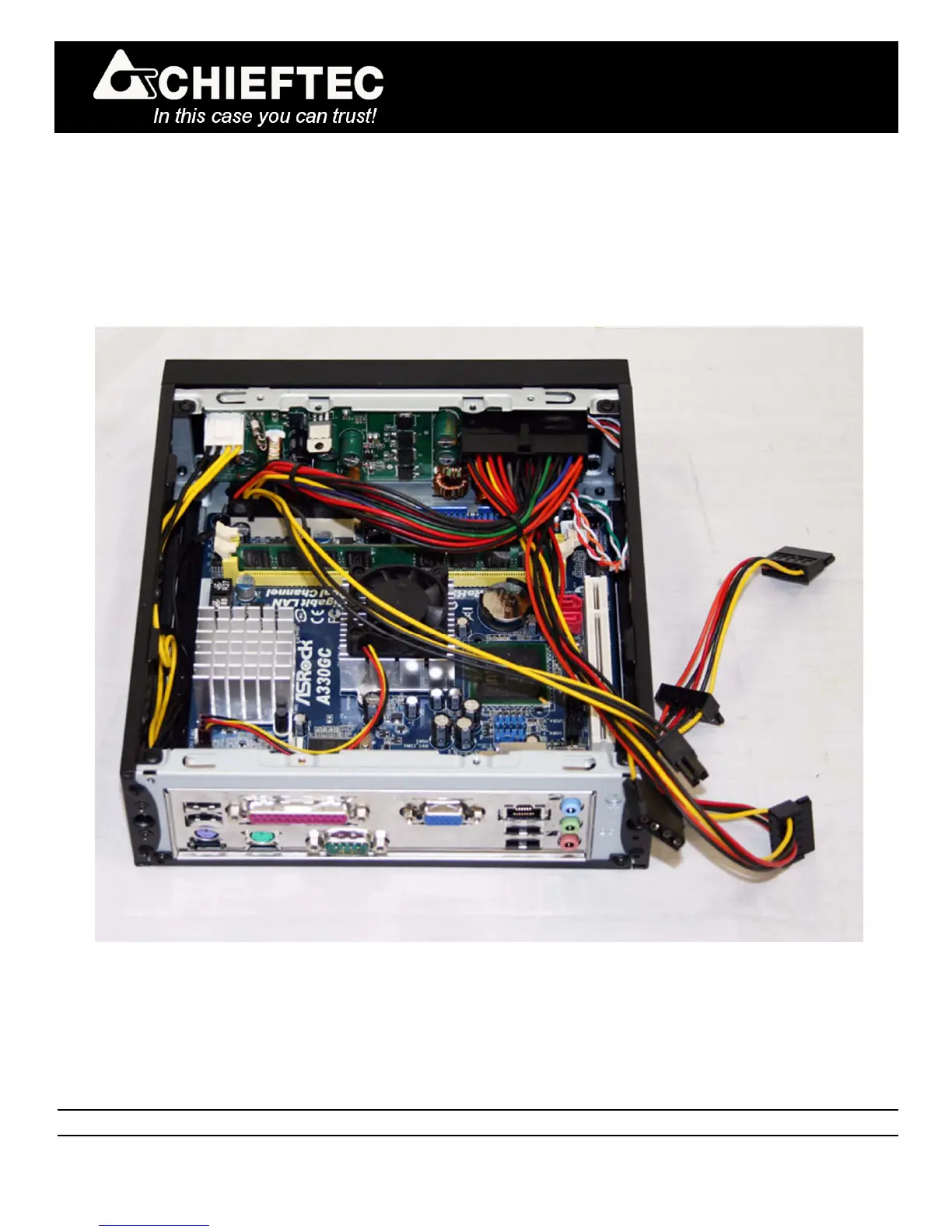

6. Please connect 24PIN power cable with the mainboard & DC-DC board.
COMPACT SERIES
INSTALLATION GUIDE
