21
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
CMV MINI VRF System - Outdoor Unit
5 Outdoor unit wiring diagrams and field wiring

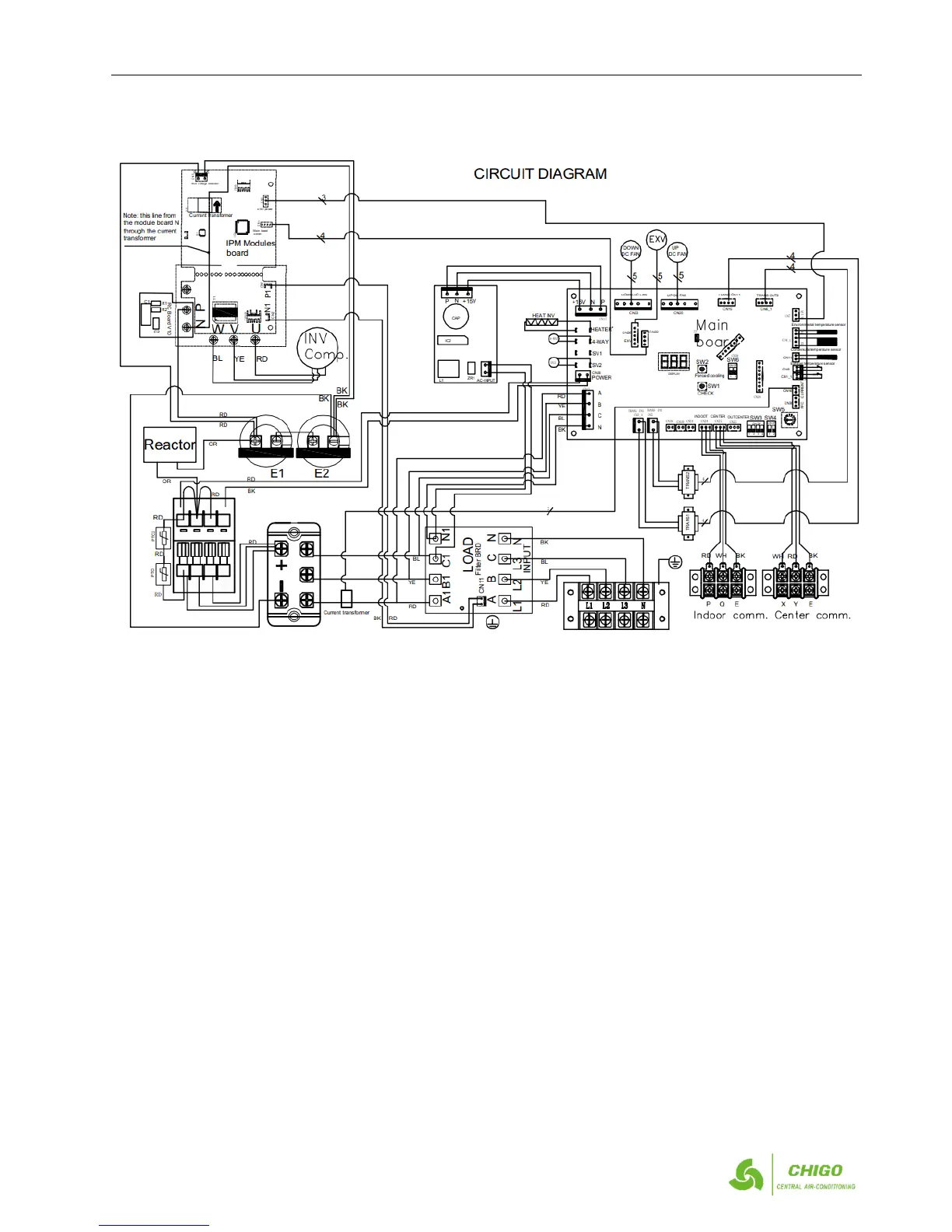

5.1 Outdoor unit electrical control box wiring diagram
10KW,12.5KW,14KW,16KW
Caution: The E1 E2 electrolytic capacitors must finish releasing electricity after outage.
5.2 PCB enlarged view
