Child Craft F32401 - Crib Assembly Steps 3-4; Attach Stationary Side to Foot Assembly; Install the Stretcher

4

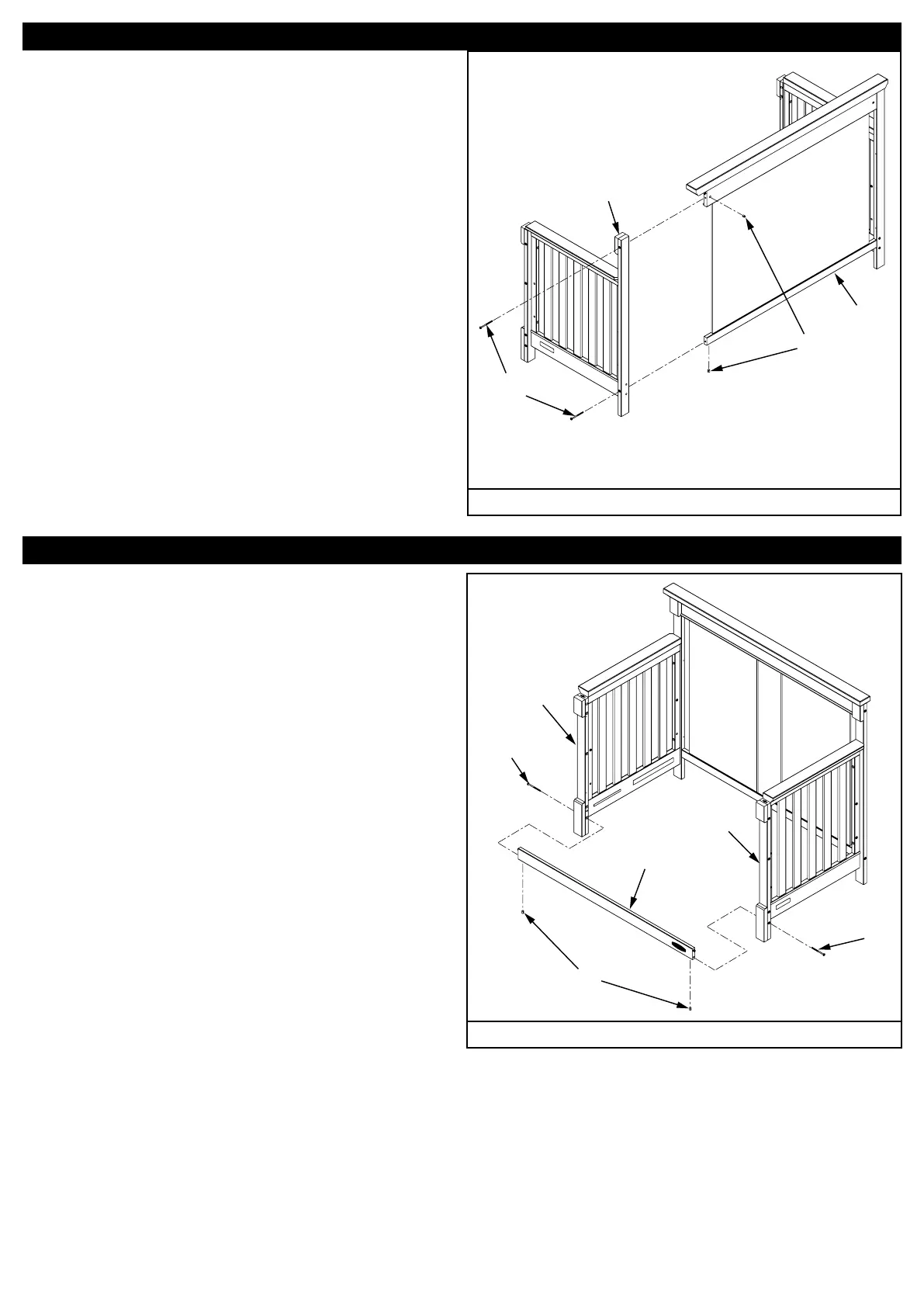

Figure 3
STEP 3
AB20069_G7
S
A
E
N
STEP 4
Figure 4
AB20072_G8
I
S
N
N
G
H
Stationary Side Assembly to Short Foot Assembly:
Place Joint Connector Nuts (S) into holes in the
back of top rail and bottom of bottom rail of
Stationary Side Assembly (A). Align Head Post -
Right (E) with Stationary Side Assembly (A). Insert
Allen Head Bolts (N) into Head Post - Left (E) and
Rotate Joint Connectors Nuts to align threads with
bolts and snug with Allen wrench .
Tighten all Nuts and Bolts securely.
See gure 3.
Assemble Stretcher to crib.
Insert Joint Connector Nuts (S) into Stretcher (I) .
Align and insert dowels on end of stretcher into
holes in Foot Posts (H) and (G).
Insert Allen Head Bolts (N) into Foot Posts
(H) and (G) . Rotate Joint Connectors Nuts to align
threads with bolts and loosely tighten with Allen
wrench.
Tighten all Nuts and Bolts securely.
See gure 4.
