CHINT DSSU666 User Manual

DTSU666 series and DSSU666 series
three phase electronic energy meter
ZTY0.464.1448
User manual
Page 11, Total 21
2:S；
0：active energy pulse; 1: reactive energy pulse; 2：Others.
0～30
Display in turns(second)
0：Timely display；
1～30：Time interval of actual display.
0～30
Backlight lighting time control（minutes）
0：Normally light；
1～30：backlight lighting time without button operation

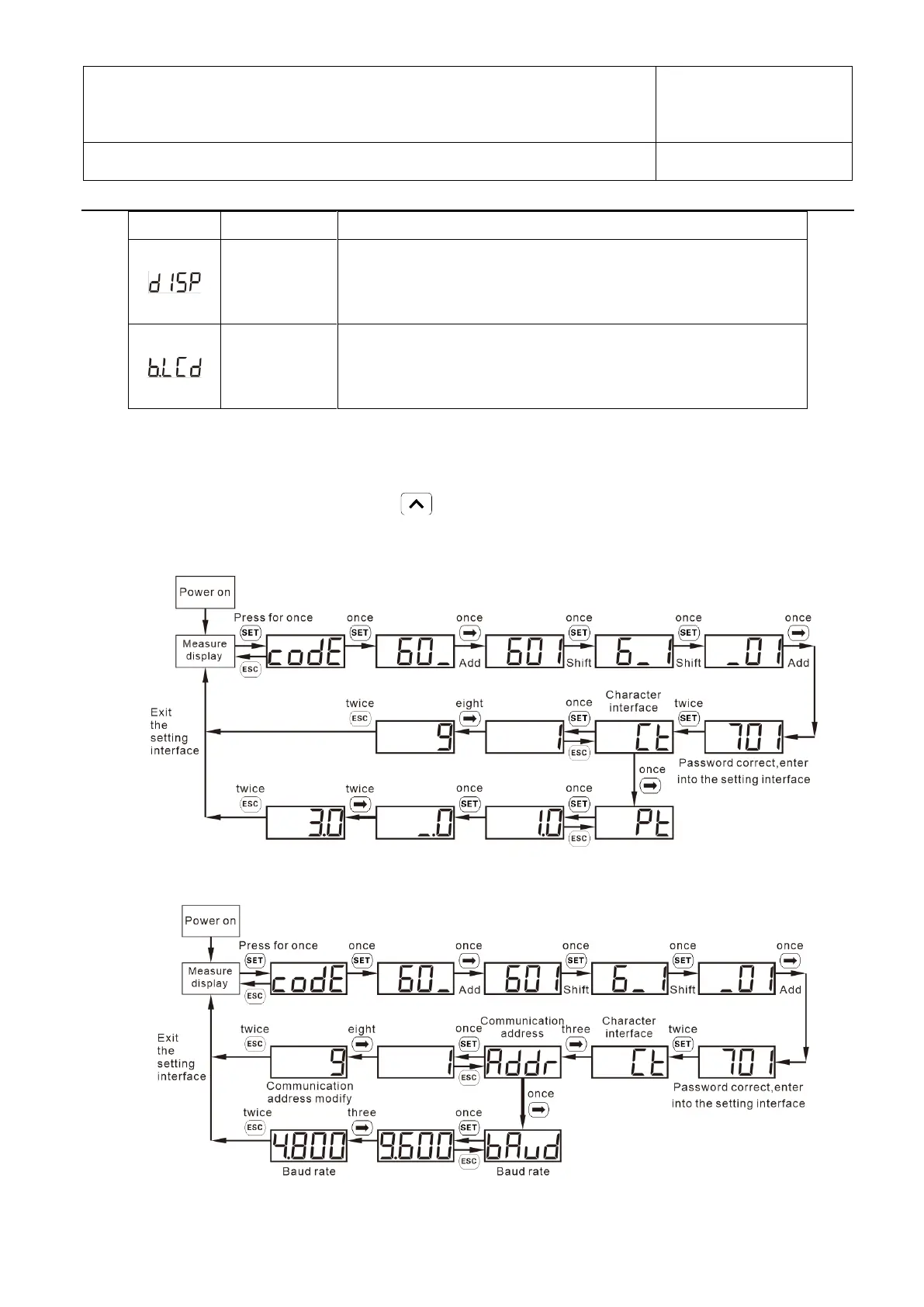

5.2.2.Programming operation
Button description: “SET” button represents “confirmation”, or “cursor shift” (when input digits),
“ESC” button represents “exit”, “→” (“ ”) button represents “add”. The input code is (default
701).
Figure 4 Setting examples for current ratio
