DTSU666 series and DSSU666 series
three phase electronic energy meter
ZTY0.464.1448
User manual
Page 15, Total 21

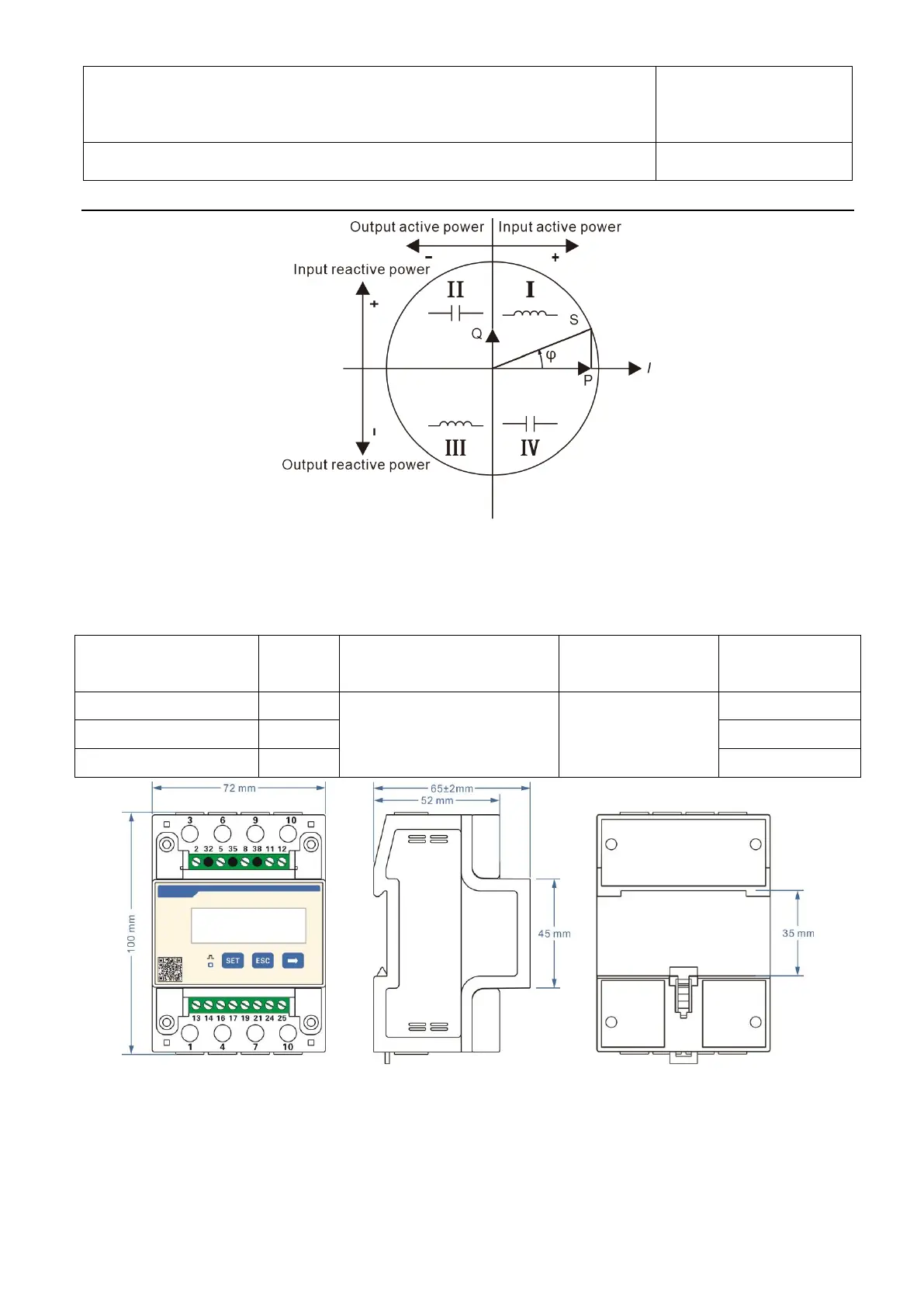

Figure 6 Measurement schematic diagram for energy four quadrants
6. Outline and installation size
Table 12 Installation size
Model
modulus
Outline size (length×
width× height) mm
Installation size
(din rail)
Weight
(g)
DTSU666
4
100×72×65.5
DIN35 Standard
din rail
440
DSSU666
4
440
DTSU666-CT
4
440
Figure 7 Access via CT Outline size diagram (four modulus)
