6.3 ELECTRICAL CONNECTION

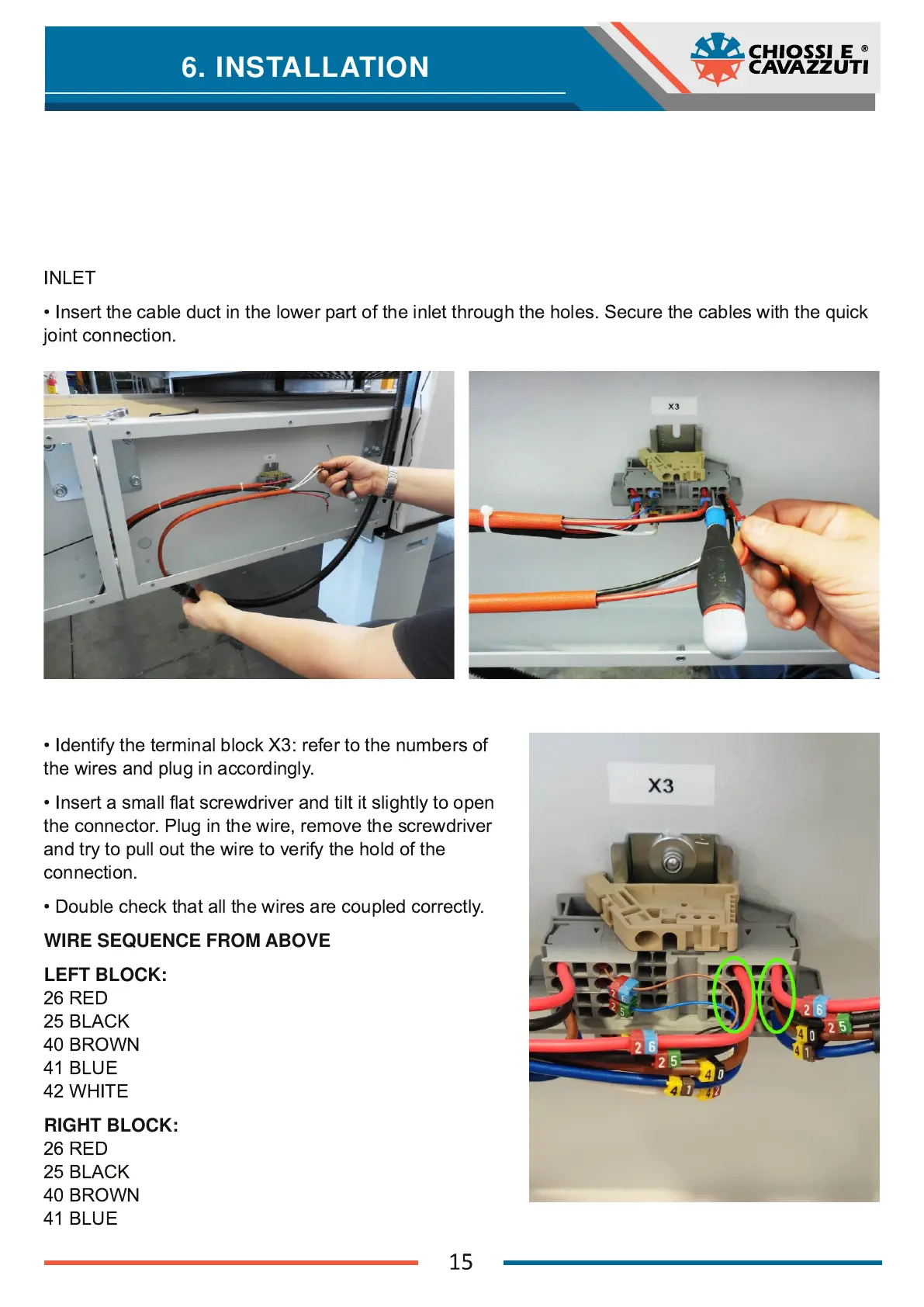

INLET
• Insert the cable duct in the lower part of the inlet through the holes. Secure the cables with the quick
joint connection.
• Identify the terminal block X3: refer to the numbers of
the wires and plug in accordingly.
• Insert a small flat screwdriver and tilt it slightly to open
the connector. Plug in the wire, remove the screwdriver
and try to pull out the wire to verify the hold of the
connection.
• Double check that all the wires are coupled correctly.
WIRE SEQUENCE FROM ABOVE
LEFT BLOCK:
26 RED
25 BLACK
40 BROWN
41 BLUE
42 WHITE
RIGHT BLOCK:
26 RED
25 BLACK
40 BROWN
41 BLUE
6. INSTALLATION
