6.3 ELECTRICAL CONNECTION

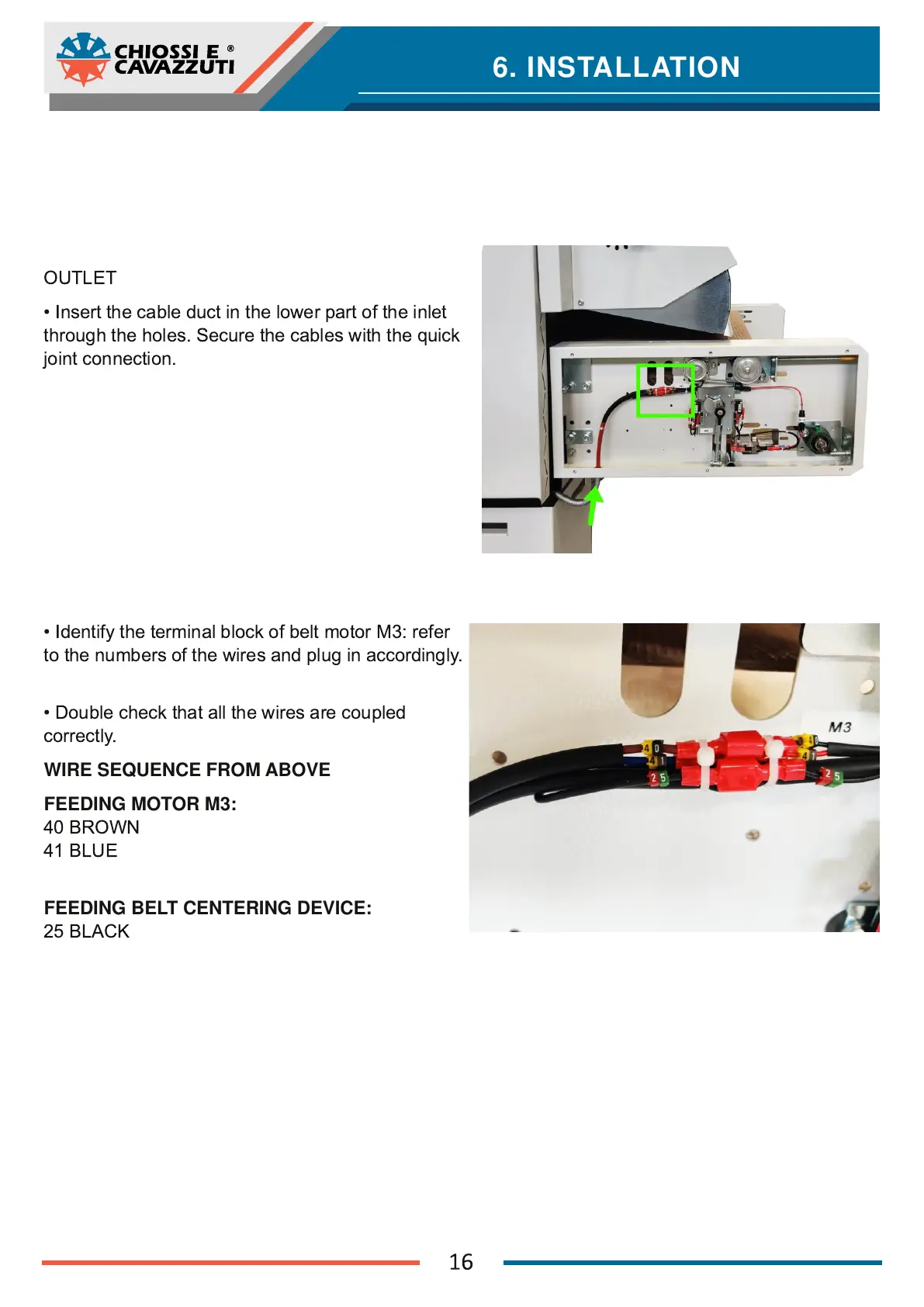

OUTLET
• Insert the cable duct in the lower part of the inlet
through the holes. Secure the cables with the quick
joint connection.
• Identify the terminal block of belt motor M3: refer
to the numbers of the wires and plug in accordingly.
• Double check that all the wires are coupled
correctly.
WIRE SEQUENCE FROM ABOVE
FEEDING MOTOR M3:
40 BROWN
41 BLUE
FEEDING BELT CENTERING DEVICE:
25 BLACK
6. INSTALLATION
