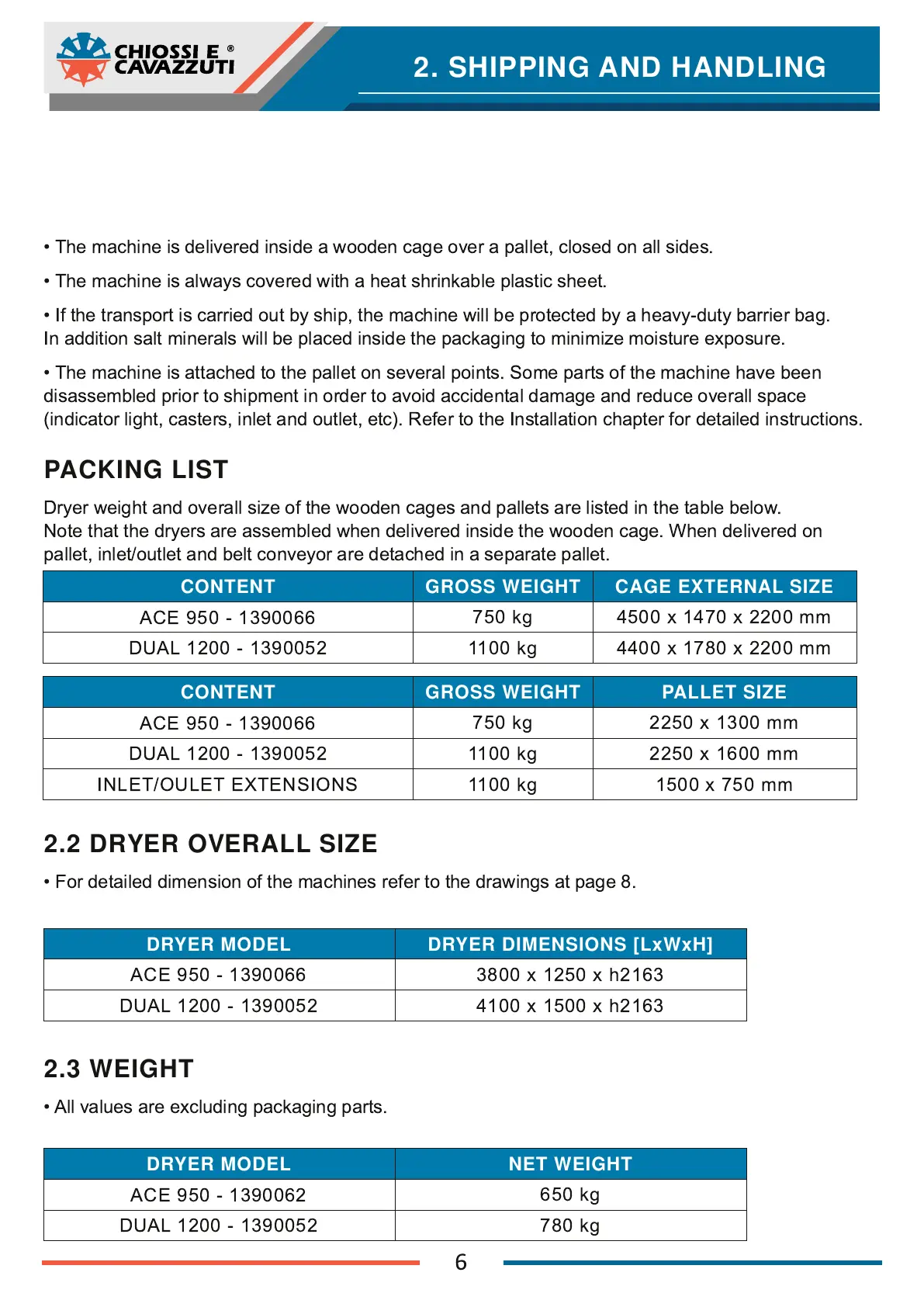

2.1 PACKAGING
• The machine is delivered inside a wooden cage over a pallet, closed on all sides.
• The machine is always covered with a heat shrinkable plastic sheet.
• If the transport is carried out by ship, the machine will be protected by a heavy-duty barrier bag.
In addition salt minerals will be placed inside the packaging to minimize moisture exposure.
• The machine is attached to the pallet on several points. Some parts of the machine have been
disassembled prior to shipment in order to avoid accidental damage and reduce overall space
(indicator light, casters, inlet and outlet, etc). Refer to the Installation chapter for detailed instructions.
PACKING LIST
Dryer weight and overall size of the wooden cages and pallets are listed in the table below.
Note that the dryers are assembled when delivered inside the wooden cage. When delivered on
pallet, inlet/outlet and belt conveyor are detached in a separate pallet.
2.2 DRYER OVERALL SIZE
• For detailed dimension of the machines refer to the drawings at page 8.
2.3 WEIGHT
• All values are excluding packaging parts.
2. SHIPPING AND HANDLING
CONTENT GROSS WEIGHT
750 kg
ACE 950 - 1 390066
CAGE EXTERNAL SIZE
4500 x 1 470 x 2200 mm
DRYER MODEL NET WEIGHT
ACE 950 - 1 390062
650 kg
DRYER MODEL DRYER DIMENSIONS [LxWxH]
ACE 950 - 1 390066
3800 x 1 250 x h21 63
11 00 kg
INLET/OULET EXTENSIONS
1 500 x 750 mm
11 00 kg
DUAL 1 200 - 1 390052 4400 x 1 780 x 2200 mm
DUAL 1 200 - 1 390052 780 kg
DUAL 1 200 - 1 390052 41 00 x 1 500 x h21 63
CONTENT GROSS WEIGHT
750 kg
ACE 950 - 1 390066
PALLET SIZE
2250 x 1 300 mm
11 00 kg
DUAL 1 200 - 1 390052
2250 x 1 600 mm
