CHMER WIRE EDM QUICK START
1.3 PRE-MACHINING SETUP

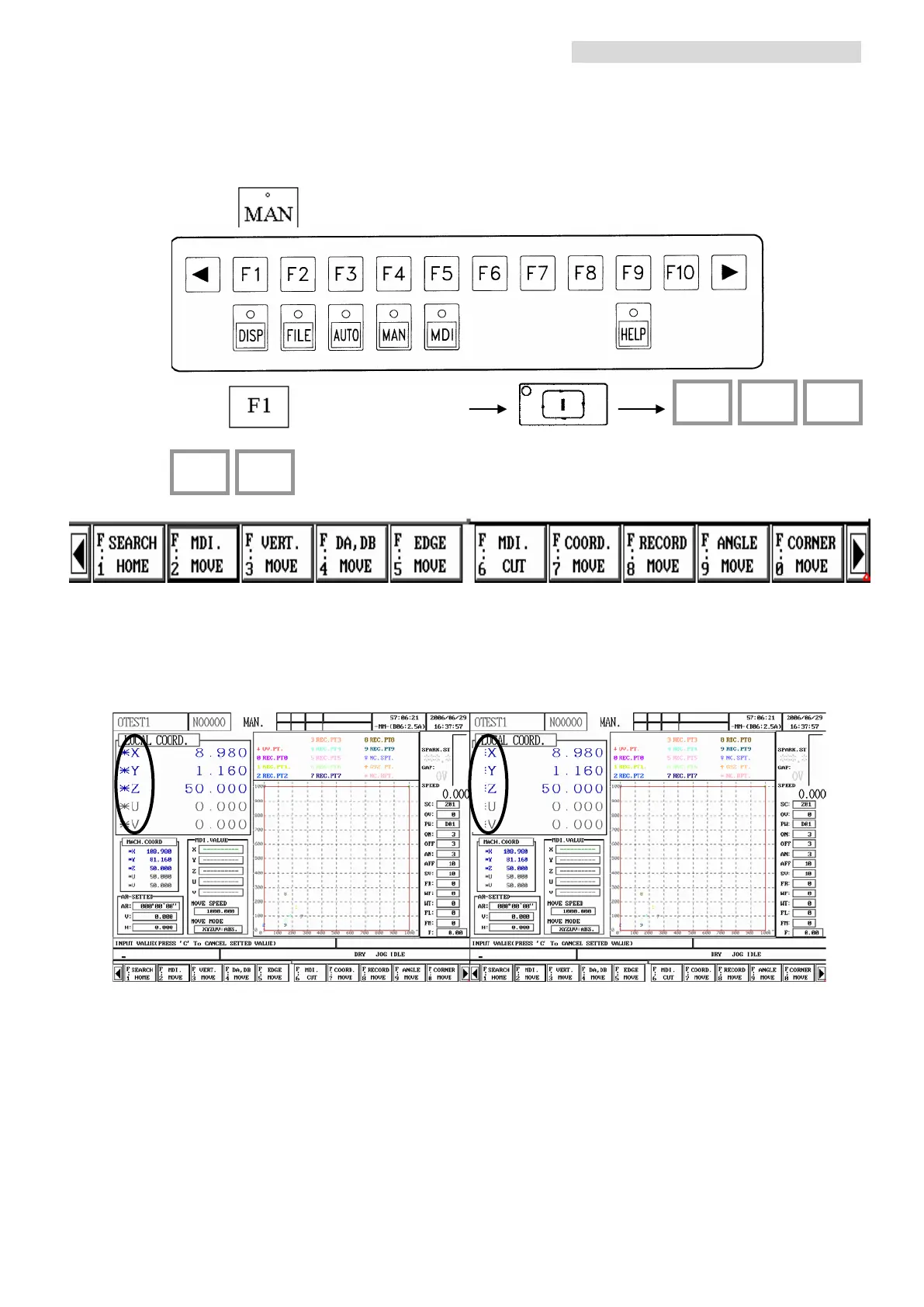

1.3.1 SEARCH HOME
1. Press
2. Press (SEARCH HOME)
3. The star mark, “ * ”, beside an axis name (*X,*Y,*Z,*U,*V) would disappear
after machine point is found. If not, move that one axis with direction key and do
Home Search again.
1.3.2 VERTICAL ALIGNMENT
Use Alignment Jig to find out vertical points after parts replacement such as
upper/lower Head, Diamond Guide or Ceramic Plates. Before executing Vertical
Alignment, the Alignment Jig has to be well located on work-table and connect its
-V
+Z
-X
-Y
-U
Note：Please turn off
AR
function before SEARCH
HOME to avoid Alarm 10500.
