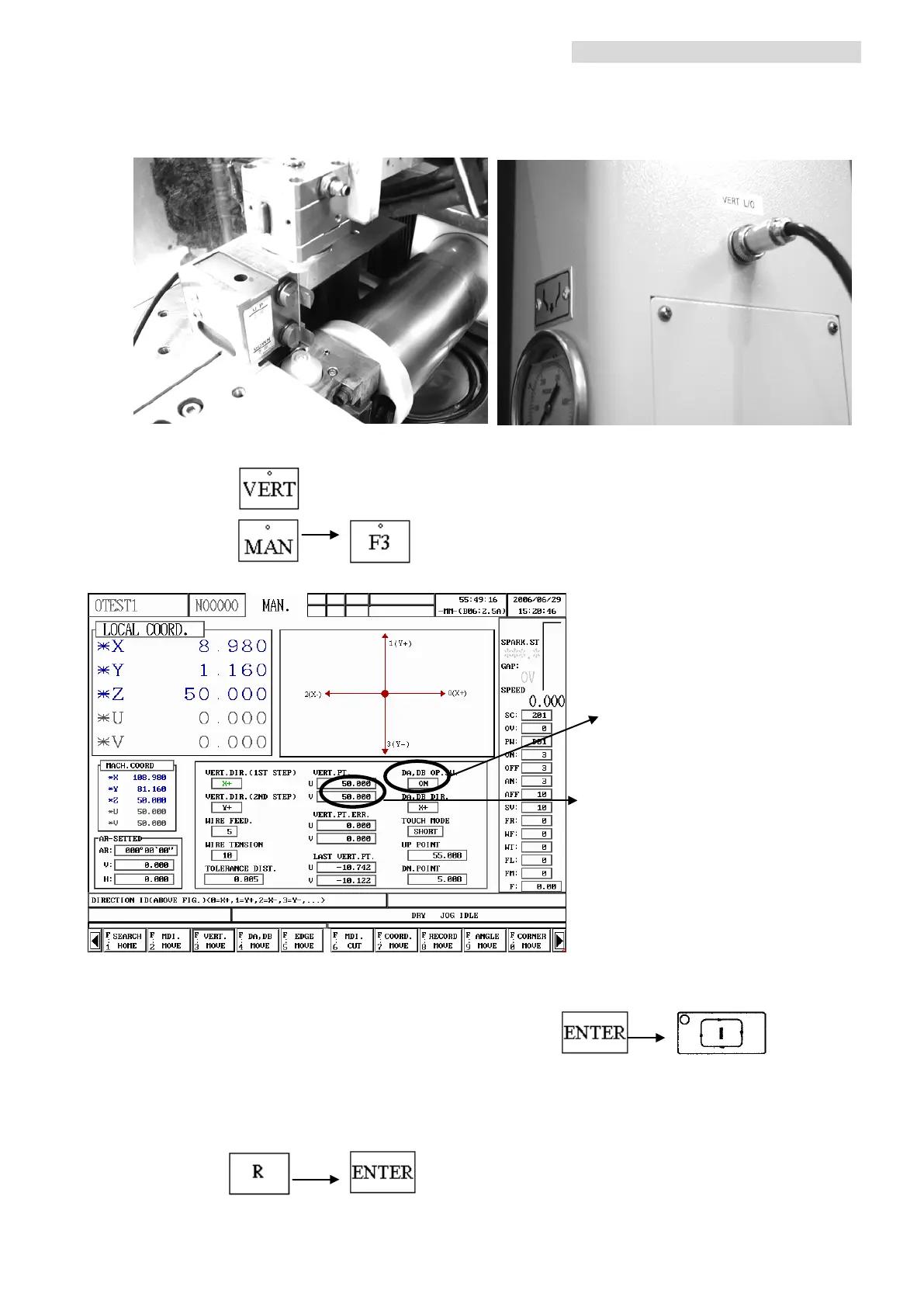

CHMER WIRE EDM QUICK START
signal cable to VER I/O port. Then follow steps listed below：
1.Press twice quickly if its LED not lit on.
2. Press （VERT. MOVE）
2. Align either XU or YV at one time
Select direction【2 (-X) or 1 (+Y)】, press to begin.
3. When vertical points are found (repeat accuracy within 5μ
), alignment process
will stop, and the text of UV will change to color gray from red.
4. Press to reset 5 axes local coordinate value.
- 8 -
