CHMER WIRE EDM QUICK START
Note. Before executing Vertical Alignment：
(1) Turn off DA/DB Switch (DA DB OP. SW=OFF). Important!!
(2) Well dry upper head. Any water drip left will worsen alignment accuracy.
(3) To keep aligning the same axis, select the same direction in 2ND STEP.
Except for using Alignment Jig, L-Block can be used for manually aligning
the axis with spark appears on wire:

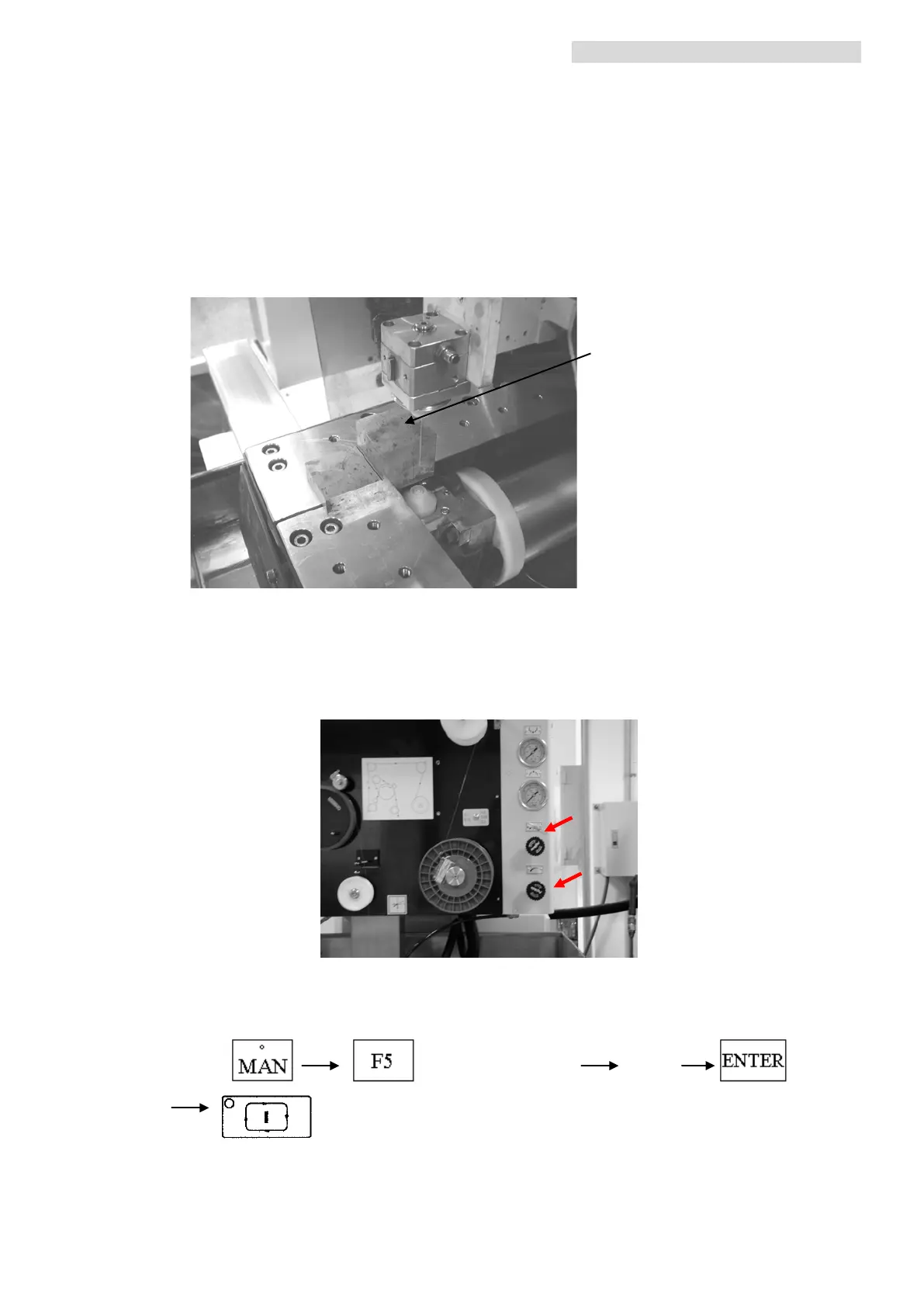

1. Locate L-Block on Work-table and well align it with indicator.
2. Turn (right) off two water knobs to block flush water from upper and lower head.
3. Do EDGE in –X direction：
Press
2(-X)
L-Block
