CHMER WIRE EDM QUICK START

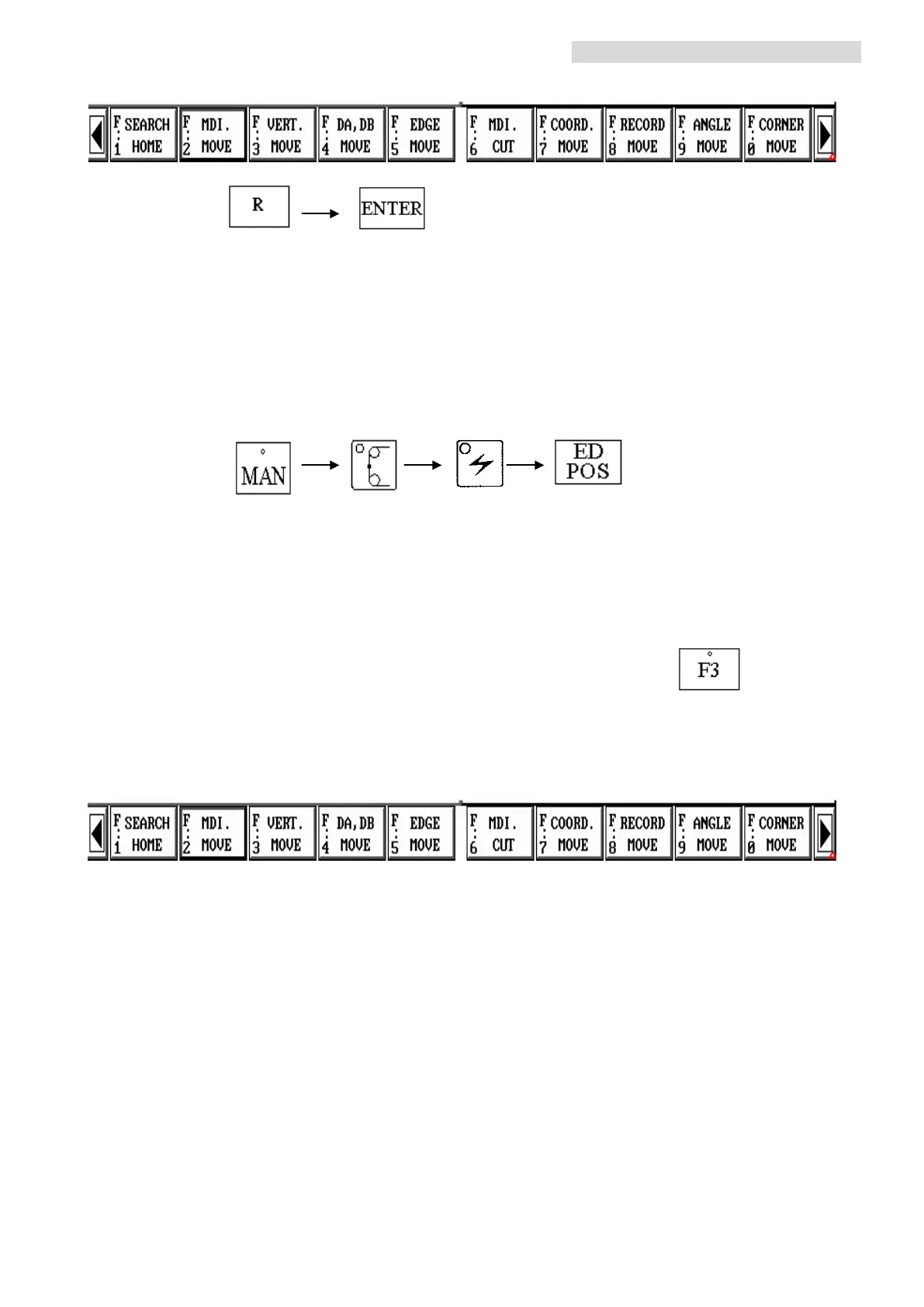

4. Press to reset 5 axes local coordinate value.
5. Set PW=A01.The other S-code items are the same (ON:1,OFF:15,AN:1,AFF:15,
SV:50, FR:10,WF:5,WT:10,WL:0,F:0). (Set WT=10 forΦ0.2wire; set WT=12 for
Φ0.25 wire).
6. Press
7. Move Y and V axis with
ML
or
L
speed until spark appears evenly on wire. Then,
move table back and forth in Y direction.
8. If the spark appears evenly while table moving, write down axis V machine
coordinate value and input them
into VERT. PT. Press (VERT MOVE)
and VERT. PT.
will appear on screen.
