1.3.3 SET UP TAPER DATA: DA/DB
Need to re-setup DA/DB after parts replacement such as upper/lower Head,
Diamond Guide or Ceramic Plates. Please follow steps listed below：
1.Set up Z axis height
(1). Put a L-Block (45mm) on the worktable.

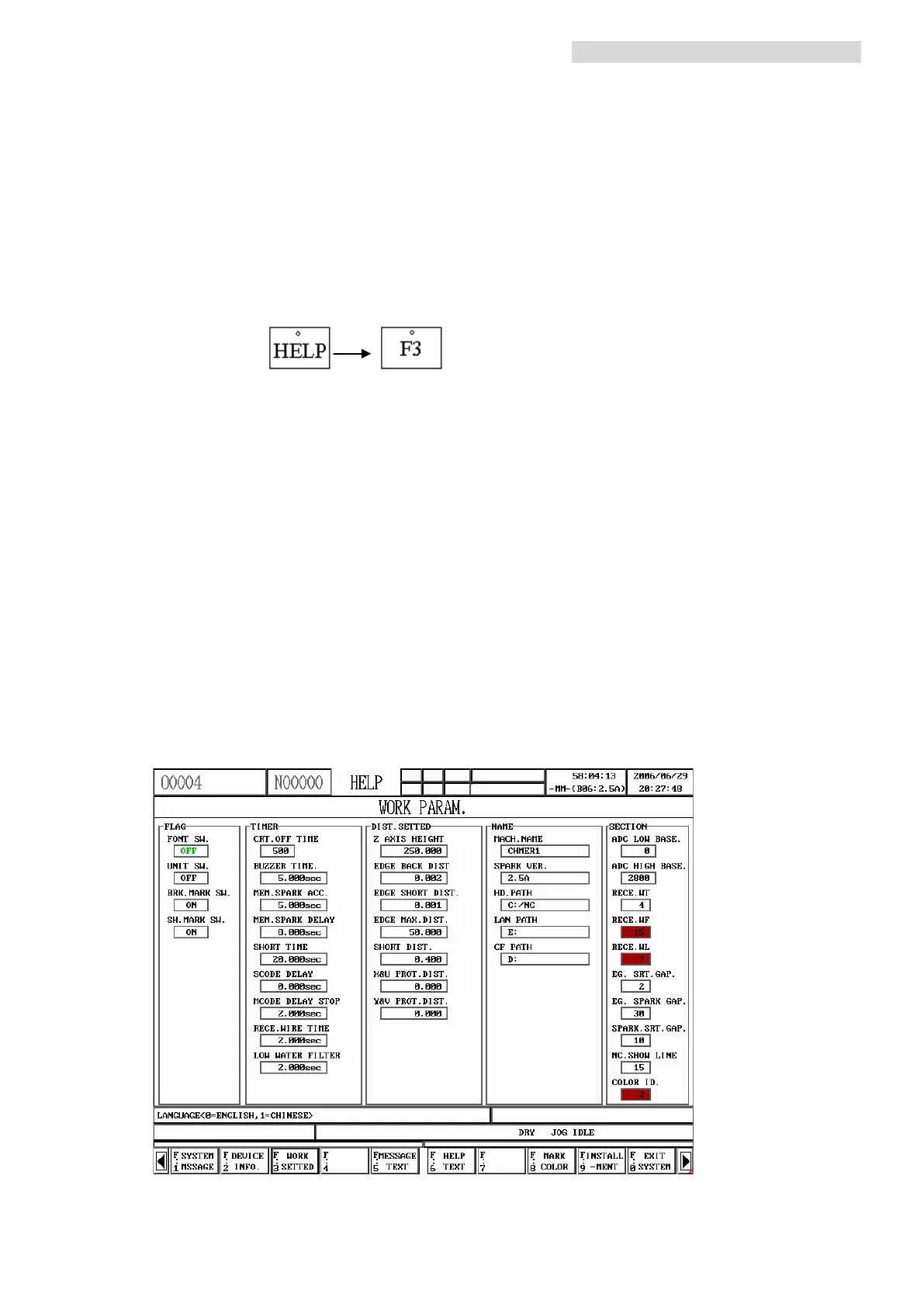

(2). Press a to set
Z HEIGHT=250.0
. Next, do Z axis
search home.
(3). Lower down Z axis slowly to just slightly touch the surface of L-Block.
Keep 0.2mm gap away from upper nozzle.
(4). Now, write down current machine coordinate value of Z axis (assume
H1=46.0)
(5). Use the equation below to get the tolerance value Z1
：
Z1=
（
H2-H1
）
+Z0
Z1=
（
45.00-46.00
）
+250= ─1+250=249.00
(6) Input new Z1 in Z HEIGHT and do
search home again.
