CHMER WIRE EDM QUICK START
(8). When Home Search is done, press twice, and lower Z axis down to
keep a 0.2 mm distance above the 45mm L-Block.
(9). If on the screen, Z coordinate value is not approximately 45.2 mm, then
repeat above step (1).~(8).
2. Setup DA, DB.

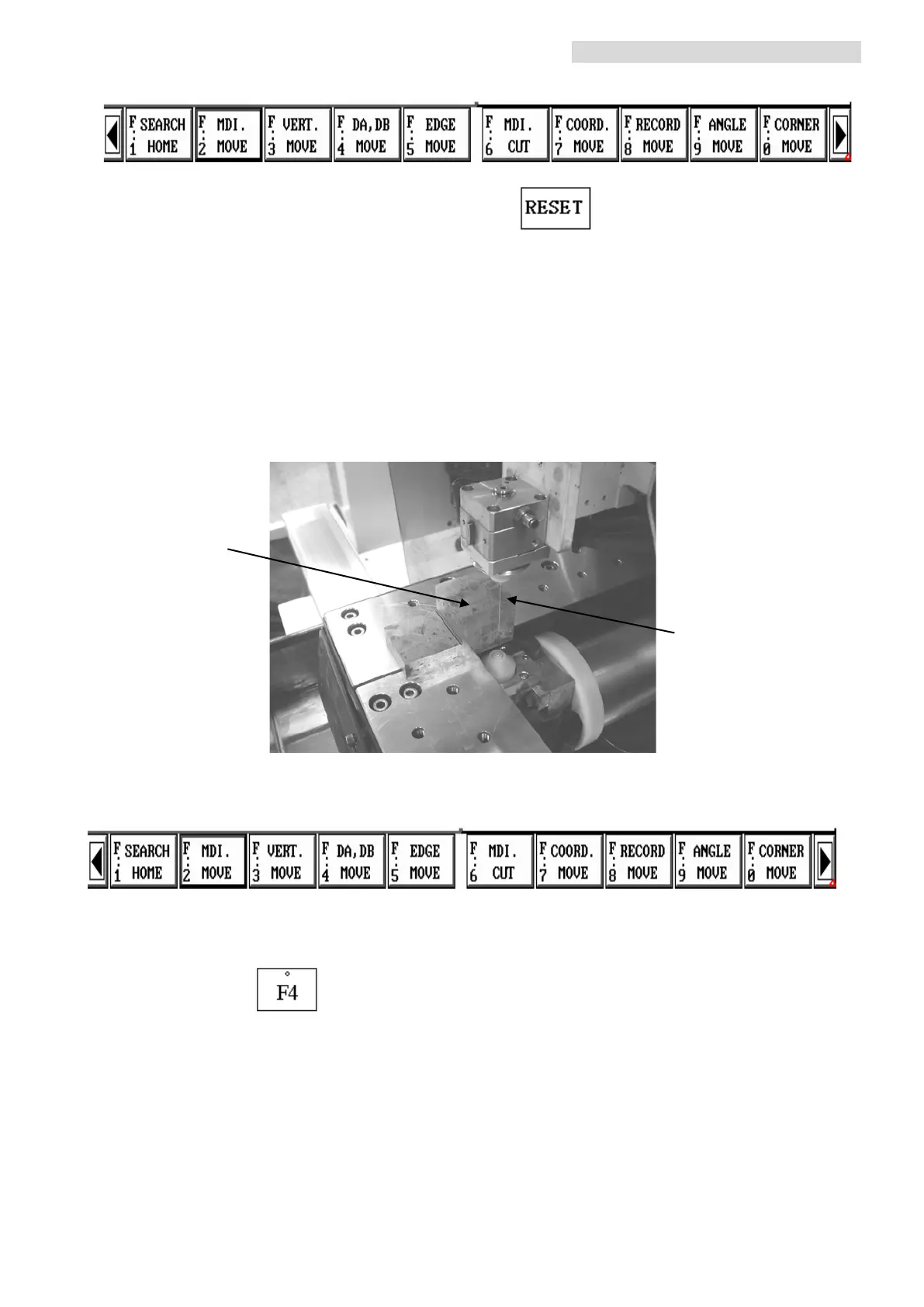

(1) Put L-Block on Work-Table as indicated by figure below.
(2) Edge Find in–X ( please refer to Chapter 4.1, page 32. )
(3) Move the wire away from L-Block in +X for at least 15mm by key panel or
MDI MOVE (refer to Chapter 4.6).
(4) Press （DA, DB MOVE）
(5) Input DA, DB MOVE info：UV MOVE ANGLE=3.000, UP POINT=45.000,
DN POINT=0.000，TOLERANCE ANGLE=0.0050
L-Block
Cutting wire
