Cable installation instructions: SRL, SRM/E, SRP
CWM cable special instructions denoted by *
WARNING: For pipe temperatures over 500˚F (260˚C) or use with MI cable, use High Temp Adapter Kit

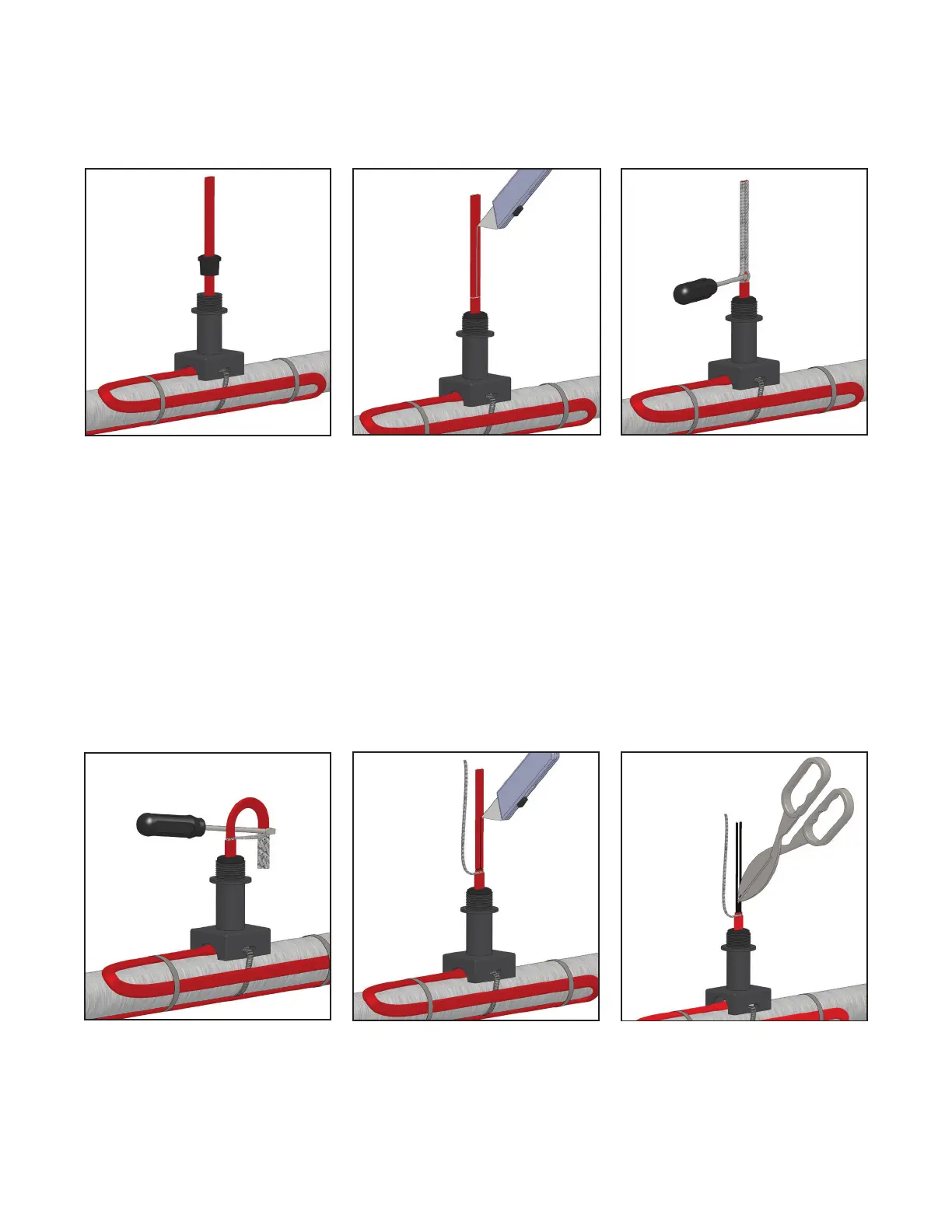

1. Insert heating cable through
pipe standoff and proper grom-
met as shown. 8 inches of cable
should extend past the grom-
met. Strap pipe standoff to pipe
with pipe strap (Chromalox type
PS not included) and attach ex-
tra cable to pipe as appropri-
ate. If the provided RTD is to be
fed through the standoff pipe, a
small slice will need to be made
to the outer edge of the top of
the grommet. For pipes smaller
than 1-1/2” diameter a small
pipe adapter (Chromalox model
SPA not included) is required.
4. While bending the heating ca-
ble, work the cable through the
braid opening. Pull the braid
tight.
2.
Score the outer insulation 7
inches from the end of the cable.
Lightly cut the outer jacket up
the center to the end of heating
cable and remove the outer jack-
et from the cable. WARNING:
DO NOT CUT METAL BRAID.
Note: If using over braid only
cable, skip this step.
5.
Score the inner insulation 6 inch-
es from the end. Lightly cut the
inner jacket up the center to end
of heating cable and remove the
inner jacket from the cable.
3. Move braid back toward the
overjacket, creating a bulge. At
the bulge, separate the braid to
make an opening.
6. Use tin snips or similar tool to
cut excess material from be-
tween the buss wires.
*Separate CWM leads and strip
1/4” from each lead wire.
To Next Page
