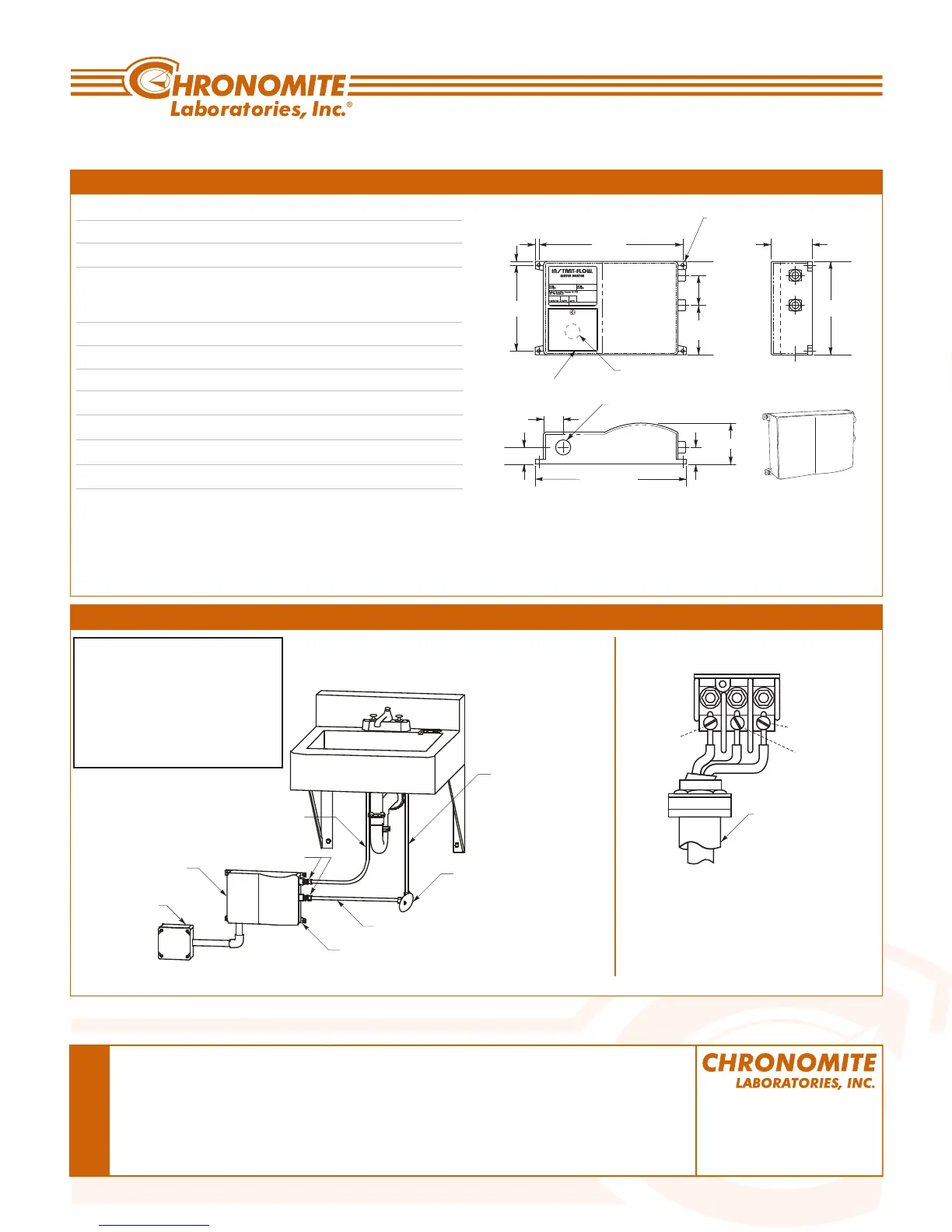

TECHNICAL DIMENSIONS
®
INSTANT-FLOW SR - LOW FLOW
Dimensions: 6-1/4" (H) x 9-5/8" x 2-3/4"
Weight: 5 lbs.
Materials: Rugged cast aluminum housing
Celcon plastic element assembly
with nichrome coils
Housing Color: White
Minimum Operating Flow Rate: 0.35 GPM
Minimum Operating Pressure: 25 PSI
Maximum Operating Pressure 80 PSI
Maximum Pressure: 150 PSI
Maximum Operating Temperature: 160°F
Listing: UL, IAPMO, UPC, ADA, ETL
GENERAL NOTES:
¥ 240V models when operated at 220V will have approximately a 15%
temperature decrease.
¥ 120V models when operated 110V will have approximately a 15%
temperature decrease.
1/4"
9-5/8"
5-3/4"
ø 3/16", 4 Mounting Holes
2-3/4"
2"
3-5/16"
Rear Electrical Knock-Out
ø 1" Access Hole
1-1/8"
2-3/4"
10-1/8"
1-1/8"
1-5/16"
HOT
COLD
6-1/4"
1/4"
Front Service Panel
Chronomite Laboratories, Inc.
City of Industry, CA 91744 U.S.A.
®
INSTANT-FLOW SR - LOW FLOW
IFSR-LF 07/28/16
INSTALLATION DIAGRAM
WIRING CONNECTION
"GRD" is
earth
ground.
Conduit
Refer to local
code for wire size
Hot
Hot or
Neutral
ATTENTION:
Unit must be hard wired.
NOTE: Heaters are single phase.
All tests are measured at
the output of the heater.
HOT
COLD
3/8" Hot Water Outlet
Compression
Fittings (2)
Instant-Flow
Heater
J-Box
Mounting Flanges (4)
3/8"
Cold Water
Faucet Feed
5/8" x 3/8" x 3/8"
Three Way Angle
Stop Valve
3/8" Cold Water Inlet
Chronomite Laboratories assumes no responsibility for use of void or suspended data. © Copyright Chronomite Laboratories, Inc.
Member of Morris Group International, City of Industry, CA Please visit www.chronomite.com for most current specifications.
SELECTION SUMMARY
& APPROVAL FOR
MANUFACTURING
Model Number & Options_____________________________________________________________________Quantity_______________
Company_______________________________________________________________________________________________________
Contact_________________________________________________Title____________________________________________________
Signature
(Approval for
Manufacturing)__________________________________________________________________Date ____________________________
PH. 800-447-4962
626-937-4270
FAX 626-937-4279
www.chronomite.com
Notes:
1. Heater to be installed below
the level of all hot water
outlets serviced by the heater
2. Diagram shown with standard
3/8” compression fitting.
Optional 1/2” male NPT water
connections available.
