Cavity
Cartridge
Fuse
Mini
Fuse
Description
1
40 Amp
Green
—
Power Top Module –
If Equipped
2—
20 Amp
Yellow
AWD Module
Cavity
Cartridge
Fuse
Mini
Fuse
Description
3—
10 Amp
Red
Center High
Mounted Stop Light
(CHMSL)/Brake
Switch
4—
10 Amp
Red
Ignition Switch
5—
20 Amp
Yellow
Trailer Tow – If
Equipped
6—
10 Amp
Red
Power Mirror
Switch/Climate Con-
trols
7—
30 Amp
Green
Ignition Off Draw
(IOD) Sense 1
8—
30 Amp
Green
Ignition Off Draw
(IOD) Sense 2

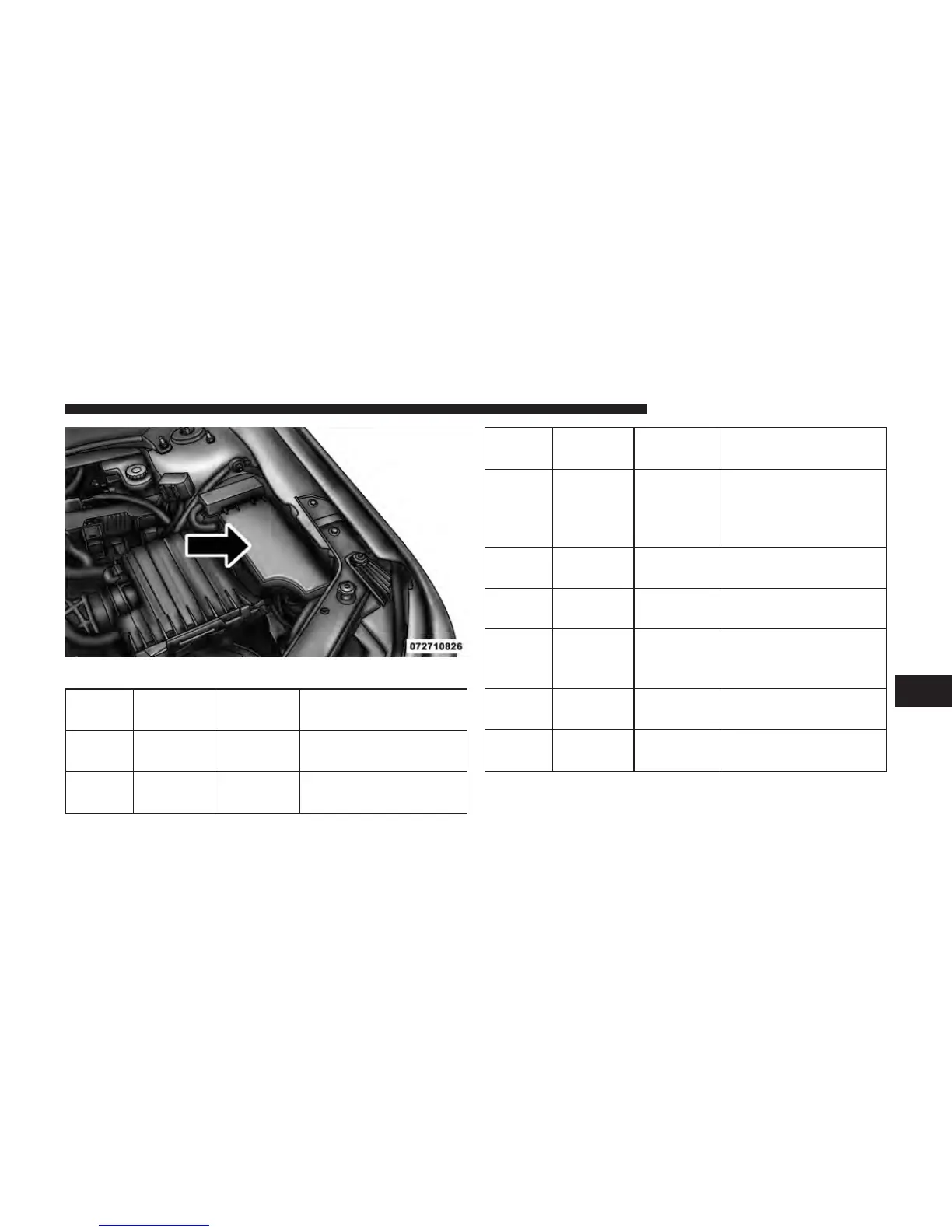

Totally Integrated Power Module
7
MAINTAINING YOUR VEHICLE 429
