Fuses (Integrated Power Module)

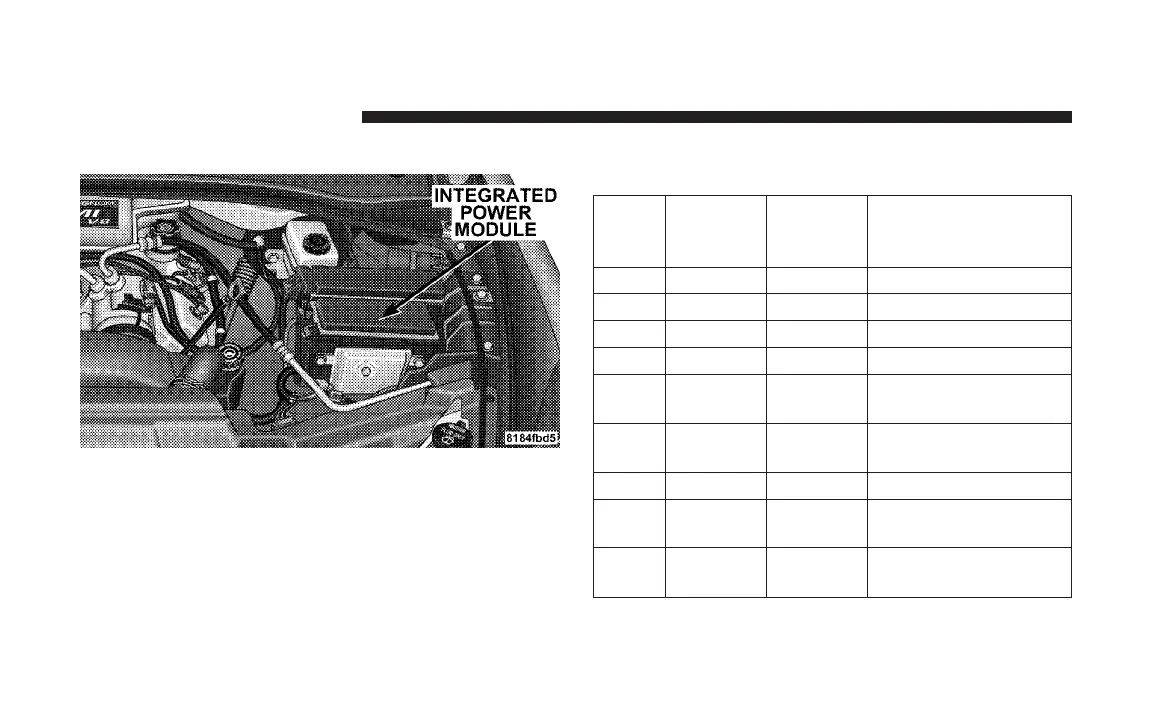

An integrated power module is located in the left side of
the engine compartment. This center contains cartridge
fuses, mini fuses and relays. A description of each fuse
and component may be stamped on the inside cover,
otherwise the cavity number of each fuse is stamped on
the inside cover that corresponds to the following chart.
Cavity
Cartridge
Fuse /
Relay
Mini
Fuse
Description
1 Relay Wiper On/Off Rly
2 Relay Wiper Hi/Lo Rly
3 Relay Horn Rly
4 Relay Rear Wiper Rly
5 Relay Lt Trailer-Tow Stop/
Turn Rly
6 Relay Rt Trailer-Tow Stop/
Turn Rly
7 Relay Park Lamps Rly
8 10 Amp
Red
Lt Park Lamps
9 10 Amp
Red
Trailer-Tow Park
Lamps
Integrated Power Module
426 MAINTAINING YOUR VEHICLE
