Fog Lights
To replace the left foglamp bulb:
1. Remove the three wheel liner screws
2. Remove the far left air dam screw at the bottom of the
fascia.
3. Peel back the liner and access the fog light.
4. Rotate the socket and connector 1/4 turn counter-
clockwise and pull straight reward to disengage from the
light.
5. Remove the bulb from the socket and replace.
The right fog light can be accessed from below the
vehicle. Follow the previous Steps 4 and 5 of the left fog
light to replace the bulb.
NOTE: These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat build-up, which reduces bulb
life.

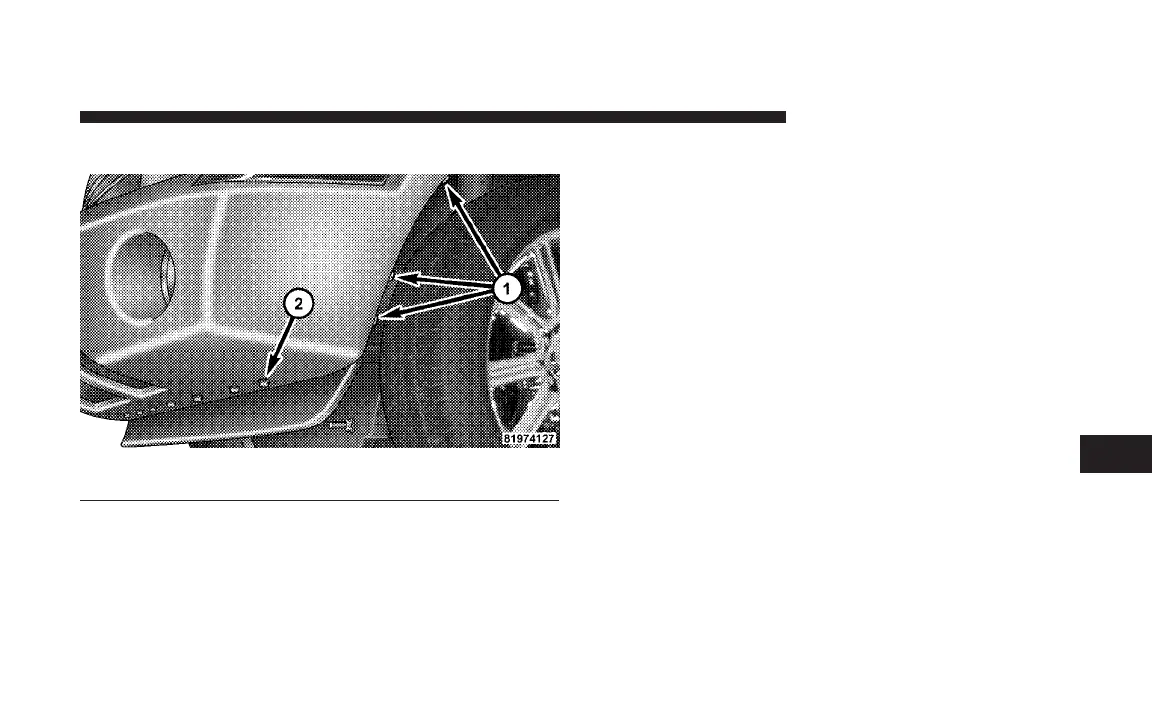

1 - Wheel Liner Screws
2 - Far Left Air Dam Screw
MAINTAINING YOUR VEHICLE 435
7
