Chrysler Prowler (PR) 2002 - Page 9

1 6502 697 4 NUT, Hex Flange Lock, M12x1.75
2 6504 800 4 SCREW
3 ARM, Control
4865 320AA 1 Upper Right
4865 321AA 1 Upper Left
-4 4815 306 2 BUSHING, Pivot, Upper Control Arm
-5 6030 099 1 FITTING, Ball Joint, Zirc, Upper
Control Arm
-6 4695 673 1 SEAL, Upper Control Arm
7 ARM, Control
4865 322AA 1 Lower Right
4865 323AA 1 Lower Left
-8 4786 580 1 BUSHING, Lower control Arm to
Pushrod Lower
9 6101 994 4 SCREW
10 6504 751 2 NUT AND RETAINER, Hex Flange
Locking, M14 x 2.00
11 6504 751 4 NUT AND RETAINER, Hex Flange
Locking, M14 x 2.00
12 6502 698 2 NUT, Hex Flange Lock
13 4786 578 2 PUSH ROD, FRONT SUSPENSION
14 6101 993 2 SCREW, and Washer Hex Hd Wa
Hd Pt M14x2.00x85.00
15 ROCKER ARM, front suspension
4865 284AA 1 Right
4865 285AA 1 Left
16 4897 344AA 2 BUSHING PKG, FRONT SHOCK
UPPER, CONTROL ARM
17 4815 307 1 BUSHING, Rocker, Arm to Pushrod
Front Suspension
18 4865 031AA 2 CAP, Ball Joint
19 6101 994 4 SCREW, and Washer Hex Hd Cone
Wa Hd Pt M14x2.00x110.00
20 6504 843AA 2 NUT AND RETAINER, m8x1.25
21 6504 989AA 2 SCREW AND WASHER, Hex Head,
M14-2x95
22 6101 993 2 SCREW, and Washer Hex Hd Wa
Hd Pt M14x2.00x85.00
23 4626 762AB 2 CLAMP, Stabilizer Bar
24 6101 980 2 SCREW AND WASHER, Hex Head,
M8x1.25x45
25 4626 368 2 CUSHION, Sway Eliminator
26 6505 593AA 2 NUT, Hex Flange
27 6504 668 2 NUT
Front Suspension

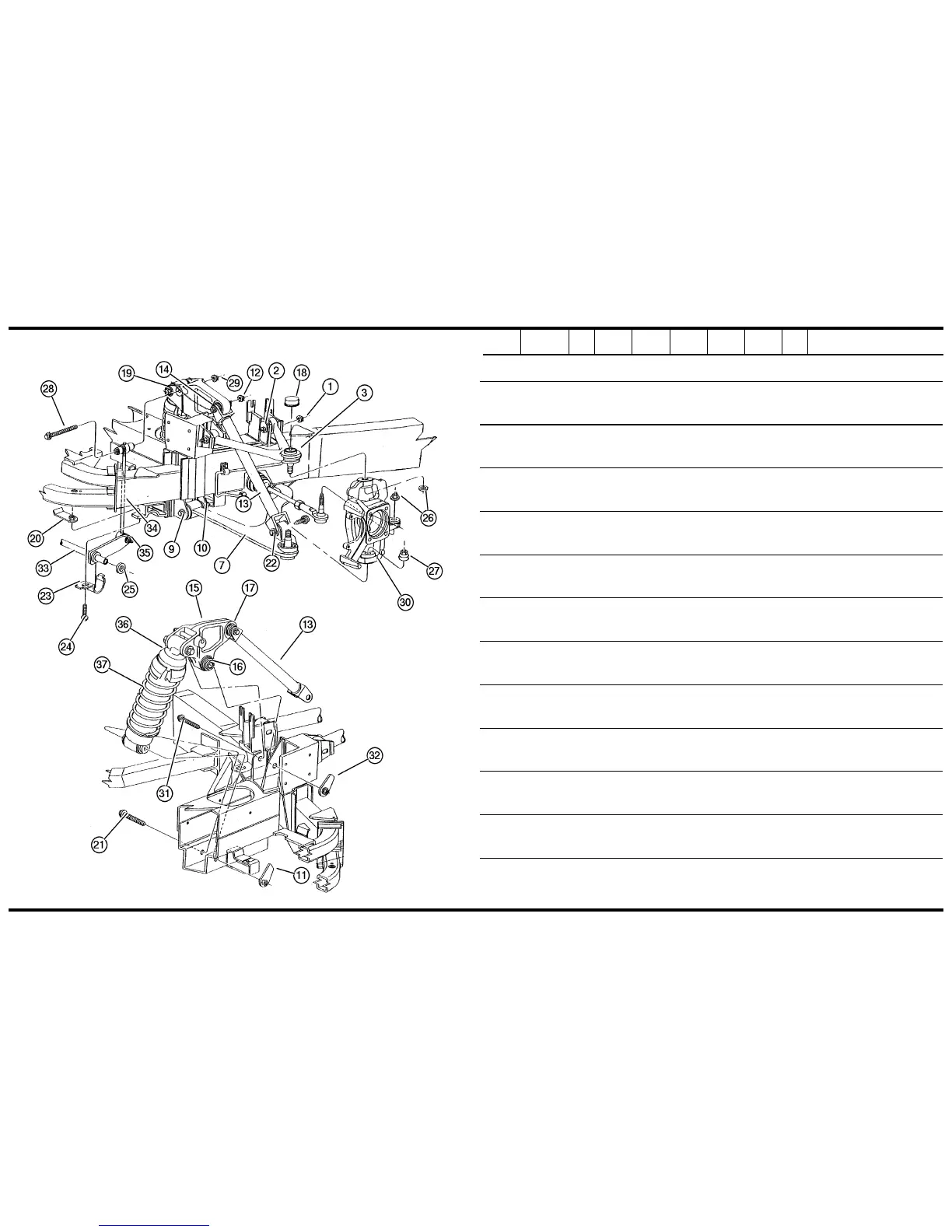

Figure 002-105
January 8, 2003
CHRYSLER PROWLER (PR)————————————————————————————————————————————————————————————
SERIES LINE BODY ENGINE TRANSMISSION
S = Special P = Premium 27=Convertible EGG = 3.5L 6 cyl 24V DGX = 4 spd. Automatic
PART
ITEM NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
AR = Use as required - = Non illustrated part # = New this model year
«
RETURN TO GROUP INDEX
»
