EN-4
EN
Installation recommendations
● If the human, environmental or financial consequences of
failure are significant, take appropriate steps to limit the effects.
● Check that the unit complies with the safety rules
applicable to the site where it is being used (explosive
atmosphere, for example).
Vibration isolator
Anti-vibration mounts must be installed beneath the chiller for
applications that generate extremely low vibrations. The
mounts must be placed at the locations illustrated below.
Weight (kg)
Sizes
LDC LDH
Empty In operation Empty In operation
702V 3103 3234 3253 3884
800V 3143 3274 3293 3924
900V 3198 3329 3348 3979
1000V 3238 3369 3388 4019
1100V 3368 3499 3488 4119
1200V 5763 6123 5888 6741
1500V 6266 6657 6391 7275
1650V 6996 7335 7034 7953
1800V 6996 7441 7121 8059

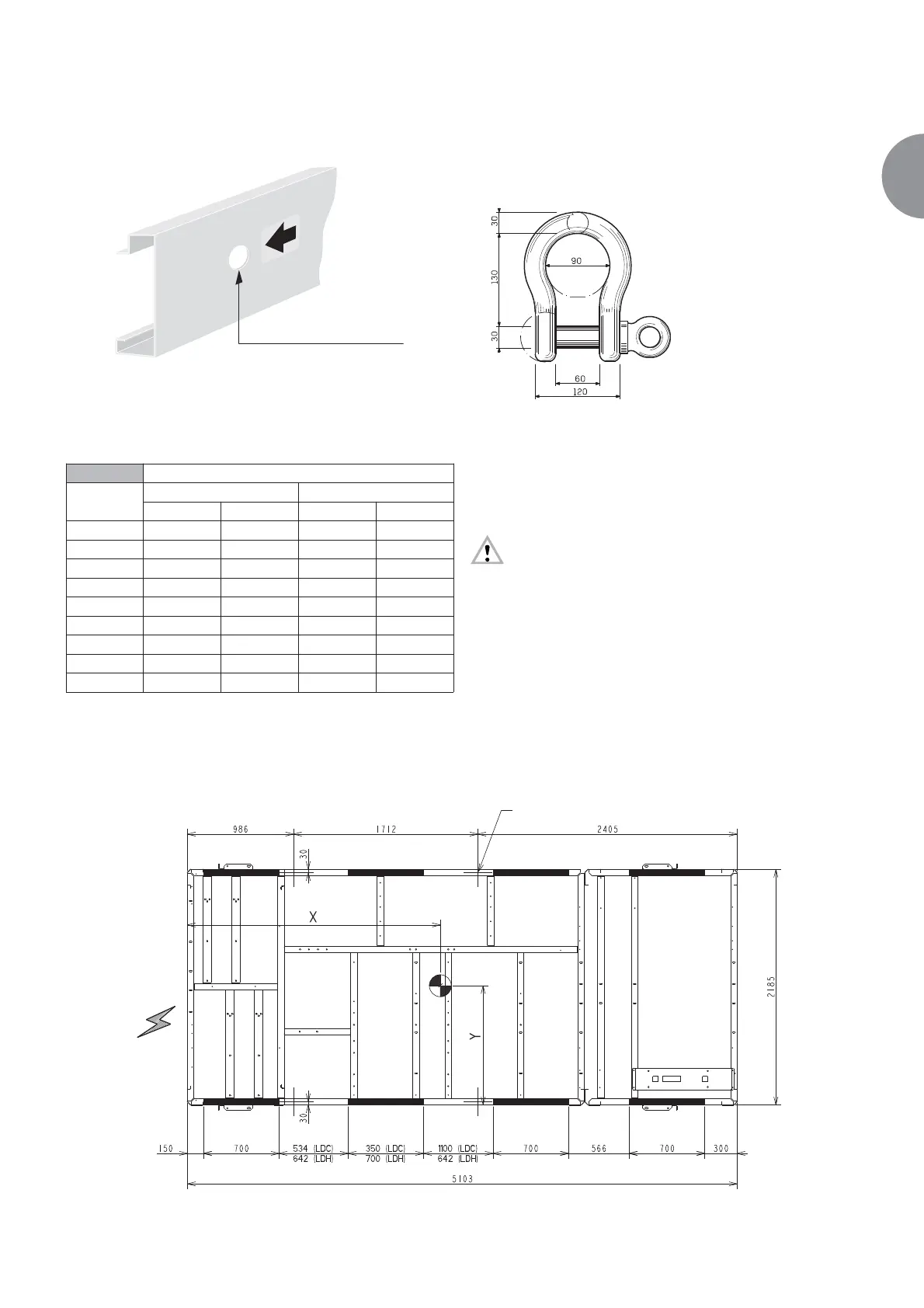

Floor mounting
LDC - LDH
702V - 1100V
- We recommend that shackles be used for handling these units.
- These machines must be unloaded and positioned by a
specialist handling company using the appropriate,
standardised tools.
STAS forged steel
screw loop shackle
- STAS code: 130 M
- Maximum working load: 4000 kg
Detailed view of the anchorage point
for handling
Type of shackle recommended for handling
Holes for handling dia.
50.2 mm
