Step 17:

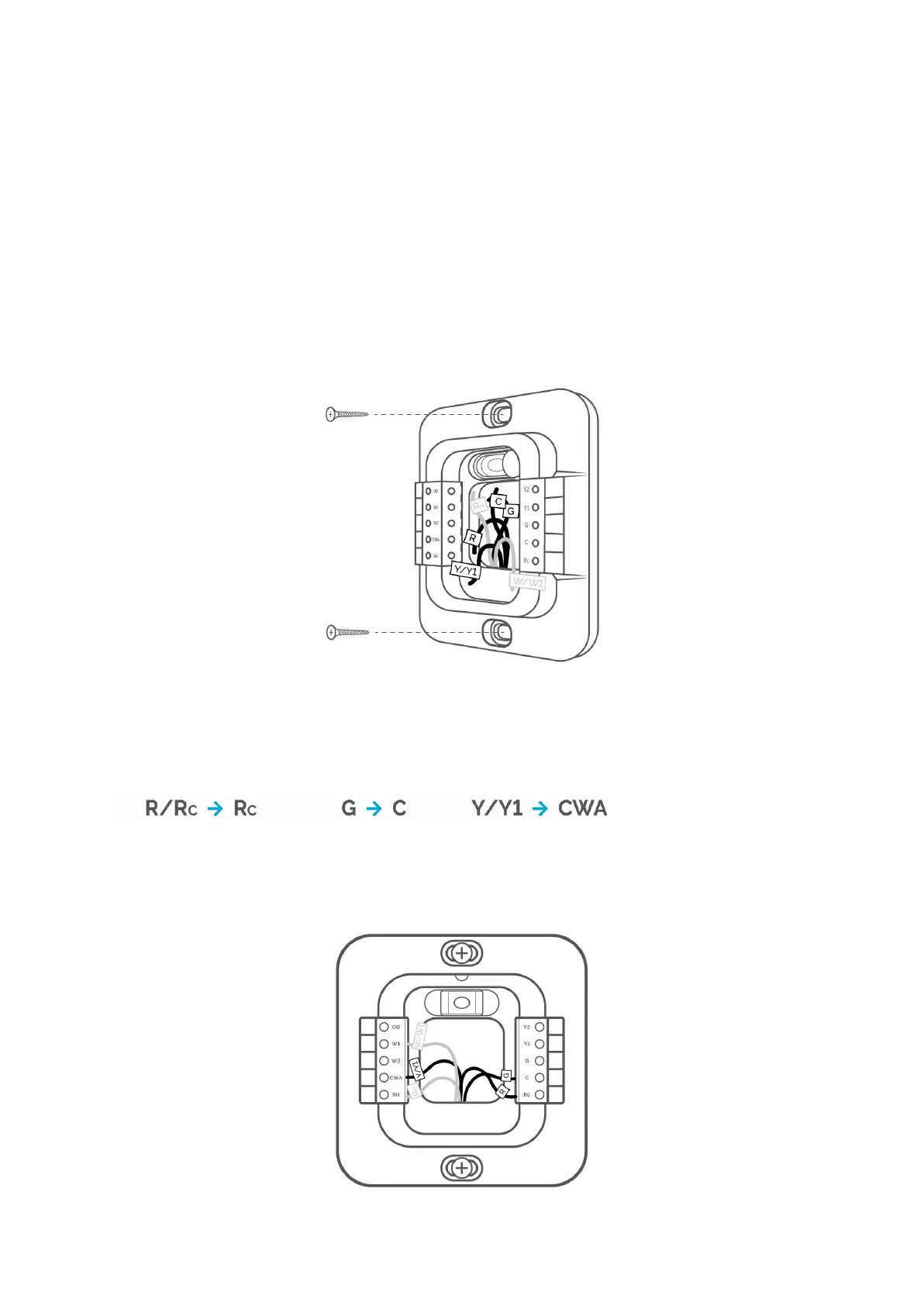

1. Take out the labeled wires through the hole in the middle of the Cielo Smart Thermostat
backplate.
2. Screw in the backplate using the provided pair of drywall anchors and screws.
Step 18: First, connect these 3 wires as shown:
Then, connect the remaining wires to their corresponding terminals (press terminal block
buttons for ease of insertion).
