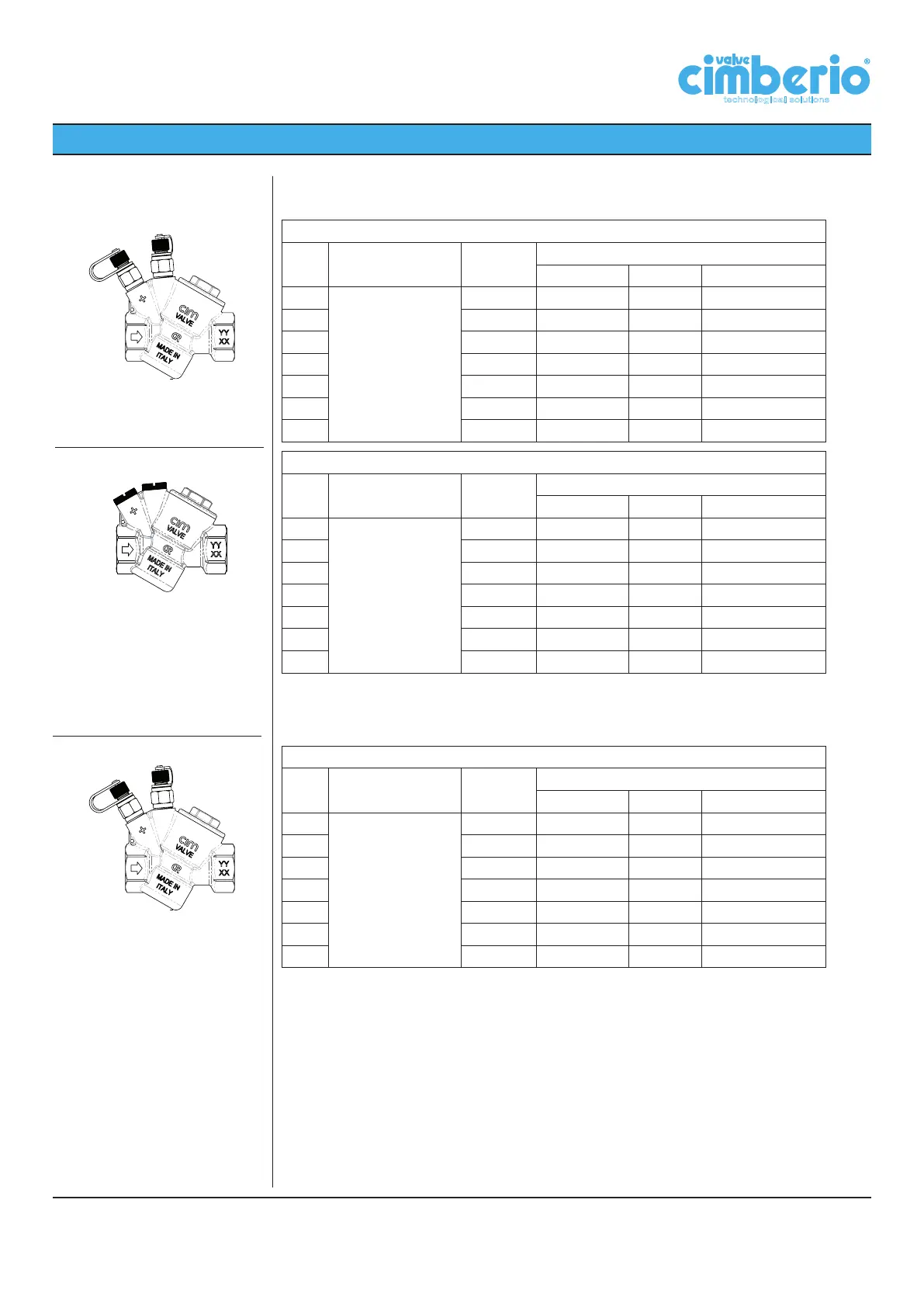

Cimberio Cim 790 - Product Models

technological solutions
TECHNICAL DATA SHEET
Cav. Uff. Giacomo Cimberio S.p.A.
Models:
2
Cim 790 - Automatic balancing valve - PN 25 - “CR” Brass*
DN Material Thread
Flow rate range
(l/s) (l/h) (GPM)
15
CR Brass
EN 12165-CW602N-M
G. 1/2” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78
20 G. 3/4” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78
25 G. 1” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78
25L G. 1” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
32 G. 1”1/4 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
40 G. 1”1/2 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
50 G. 2” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
Cim 790/2P - Automatic balancing valve - PN 25 - “CR” Brass - without test points*
DN Material Thread
Flow rate range
(l/s) (l/h) (GPM)
15
CR Brass
EN 12165-CW602N-M
G. 1/2” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78
20 G. 3/4” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78
25 G. 1” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78
25L G. 1” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
32 G. 1”1/4 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
40 G. 1”1/2 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
50 G. 2” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
* The valve is supplied with the cartridge already installed. For orders specify the
code of the required cartridge in accordance with the attached tables.
Cim 790B - Automatic balancing valve - PN 25 - “CR” Brass - without cartridge
DN Material Thread
Flow rate range
(l/s) (l/h) (GPM)
15
CR Brass
EN 12165-CW602N-M
G. 1/2” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78
20 G. 3/4” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78
25 G. 1” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78
25L G. 1” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
32 G. 1”1/4 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
40 G. 1”1/2 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
50 G. 2” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00
