Cincinnati Fan PB Operating & Maintenance Instructions

8

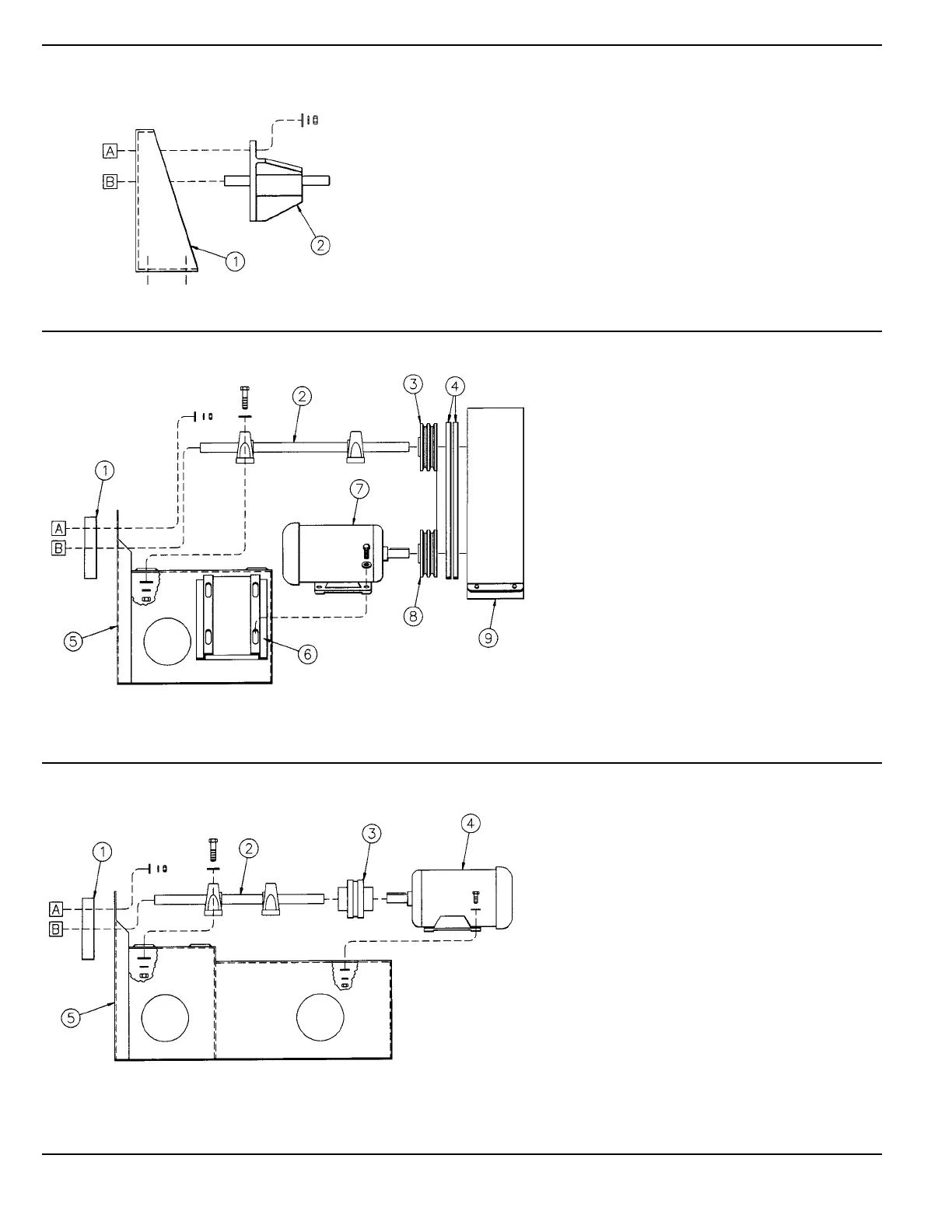

Arrangement 2
BASE COMPONENTS
1. Upright base.
2. Shaft/bearing assembly.
Arrangements 1 & 9
BASE COMPONENTS
1. Spacer ring (not required for
PBS blowers).
2. Shaft/bearing assembly.
3. Fan sheave. (Arr. 9 only).
4. Belt(s). (Arr. 9 only).
5. Bearing base.
6. Motor slide base. (Arr. 9 only)
7. Motor. (Arr. 9 only)
8. Motor sheave. (Arr. 9 only).
9. Belt guard. (Arr. 9 only).
Arrangement 8
BASE COMPONENTS
1. Spacer ring (not required
for PBS blowers).
2. Shaft/bearing assembly.
3. Shaft coupling.
4. Motor.
5. Base.
7M - 3/02, ADV
