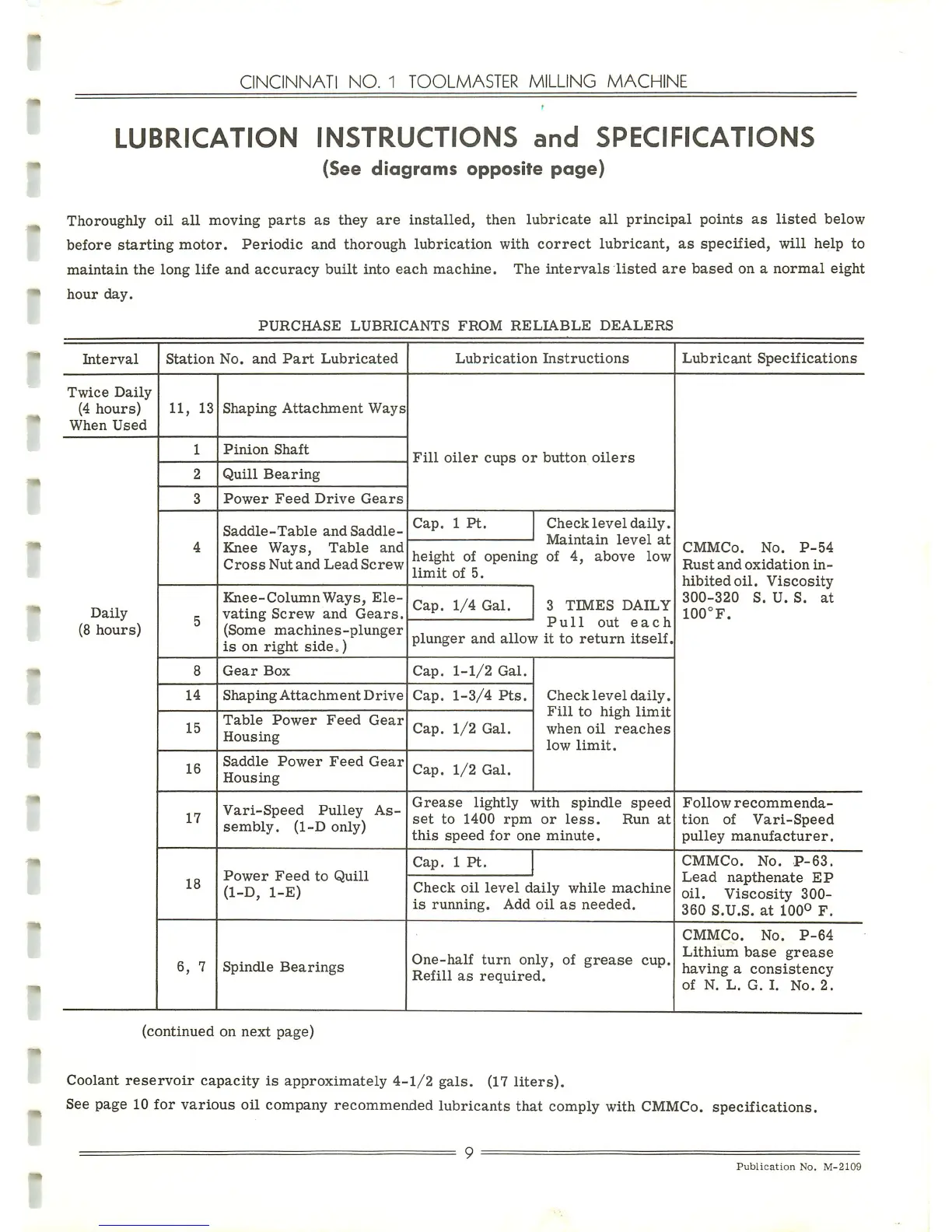

CINCINNATI NO. 1 TOOLMASTER MILLING MACHINE
LUBRICATION INSTRUCTIONS and SPECIFICATIONS
(See diagrams opposite page)
Thoroughly oil all moving parts as they are installed, then lubricate all principal points as listed below
before starting motor. Periodic and thorough lubrication with correct lubricant, as specified, will help to
maintain the long life and accuracy built into each machine. The intervals listed are based on a normal eight
hour day.
PURCHASE LUBRICANTS FROM RELIABLE DEALERS
Interval
Twice Daily
(4 hours)
When Used
Daily
(8 hours)
Station No. and Part Lubricated
11, 13
14
15
16
17
18
6, 7
Shaping Attachment Ways
Pinion Shaft
Quill Bearing
Power Feed Drive Gears
Saddle-Table and Saddle-
Knee Ways, Table and
Cross Nut and Lead Screw
Knee-Column Ways, Ele
vating Screw and Gears.
(Some machines-plunger
is on right side „)
Gear Box
Shaping Attachment Drive
Table Power Feed Gear
Housing
Saddle Power Feed Gear
Housing
Vari-Speed Pulley As
sembly. (1-D only)
Power Feed to Quill
(1-D, 1-E)
Spindle Bearings
Lubrication Instructions
Fill oiler cups or button oilers
Cap. 1 Pt. Check level daily.
Maintain level at
height of opening of 4, above low
limit of 5.
Cap. 1/4 Gal.
Cap. 1-1/2 Gal.
Cap. 1-3/4 Pts.
Cap. 1/2 Gal.
Cap. 1/2 Gal.
3 TIMES DAILY
Pull out each
plunger and allow it to return itself.
Check level daily.
Fill to high limit
when oil reaches
low limit.
Grease lightly with spindle speed
set to 1400 rpm or less. Run at
this speed for one minute.
Cap. 1 Pt.
Check oil level daily while machine
is running. Add oil as needed.
One-half turn only, of grease cup,
Refill as required.
Lubricant Specifications
CMMCo. No. P-54
Rust and oxidation in
hibited oil. Viscosity
300-320 S. U. S. at
100°F.
Follow recommenda
tion of Vari-Speed
pulley manufacturer.
CMMCo. No. P-63.
Lead napthenate EP
oil. Viscosity 300-
360 S.U.S. at 100° F.
CMMCo. No. P-64
Lithium base grease
having a consistency
of N. L. G. I. No. 2.
(continued on next page)
Coolant reservoir capacity is approximately 4-1/2 gals. (17 liters).
See page 10 for various oil company recommended lubricants that comply with CMMCo. specifications.
9
Publication No. M-2109
