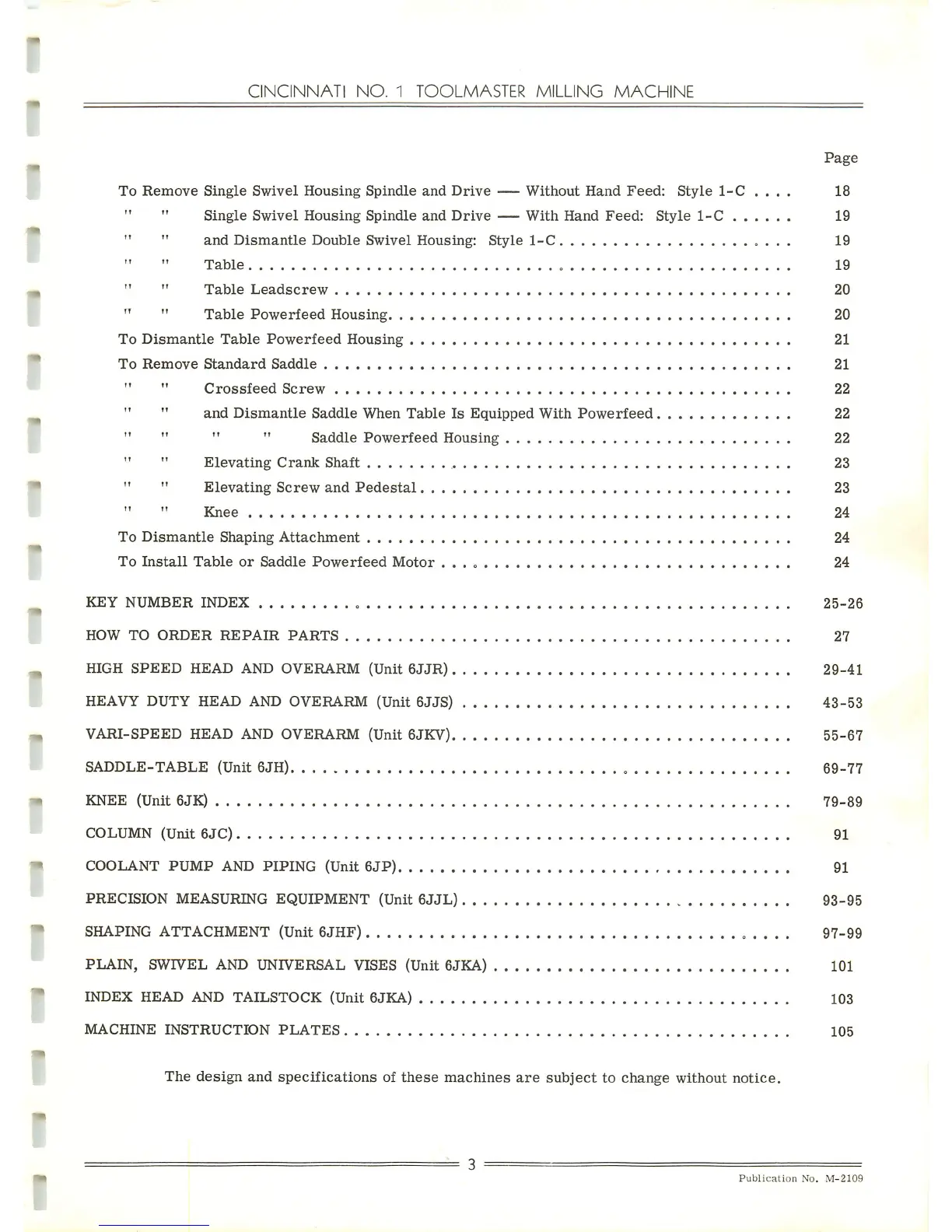

CINCINNATI NO. 1 TOOLMASTER MILLING MACHINE
To Remove Single Swivel Housing Spindle and Drive — Without Hand Feed: Style 1-C
" " Single Swivel Housing Spindle and Drive — With Hand Feed: Style 1-C . .
" " and Dismantle Double Swivel Housing: Style 1-C
Table
" " Table Leadscrew
" " Table Powerfeed Housing
To Dismantle Table Powerfeed Housing
To Remove Standard Saddle
" " Crossfeed Screw
" " and Dismantle Saddle When Table Is Equipped With Powerfeed
" " " " Saddle Powerfeed Housing
Elevating Crank Shaft
" " Elevating Screw and Pedestal
Knee
To Dismantle Shaping Attachment
To Install Table or Saddle Powerfeed Motor
KEY NUMBER INDEX
HOW TO ORDER REPAIR PARTS
HIGH SPEED HEAD AND OVERARM (Unit 6JJR)....
HEAVY DUTY HEAD AND OVERARM (Unit 6JJS) . . .
VARI-SPEED HEAD AND OVERARM (Unit 6JKV). . . .
SADDLE-TABLE (Unit 6JH)
KNEE (Unit 6JK)
COLUMN (Unit 6JC)
COOLANT PUMP AND PIPING (Unit 6JP)
PRECISION MEASURING EQUIPMENT (Unit 6JJL). . .
SHAPING ATTACHMENT (Unit 6JHF)
PLAIN, SWIVEL AND UNIVERSAL VISES (Unit 6JKA)
INDEX HEAD AND TAILSTOCK (Unit 6JKA)
MACHINE INSTRUCTION PLATES
The design and specifications of these machines are subject to change without notice.
Page
18
19
19
19
20
20
21
21
22
22
22
23
23
24
24
24
25-26
27
29-41
43-53
55-67
69-77
79-89
91
91
93-95
97-99
101
103
105
Publication No. M-2109
