pag. 11
The removable steering column allows simultaneous control of the three synchro-
nized steering modes, changing from CONV to ROUND to CRAB.
Insertion / Extraction
Position the steering column in its compartment on the Dolly, tighten the upper
nut -2- until it stops to connect the column to the steering system. Lock the colu-
mn by tightening the knurled knob -3-
To extract the column execute the inverse operation.
Locking of the steering wheel
It is possible to block the steering wheel in central position by locking the lever -1-
Choosing the steering mode
Change of the steering modes can be made by twisting two handles -4- of the ste-
ering wheel, thus choosing the steering mode between CRAB, CONV or ROUND.
In order to change the steering mode it is necessery to bring back the steering to
the initial point i.e. with the steering handles set in the position parallel with the
rear side of the dolly and start twisting the handles. Any change of the steering
mode must be made only when the steering wheel is perfectly centered.
The steering has to be smooth and in case the operator doesn’t manage to steer,
it’s not advisable to force the steering.

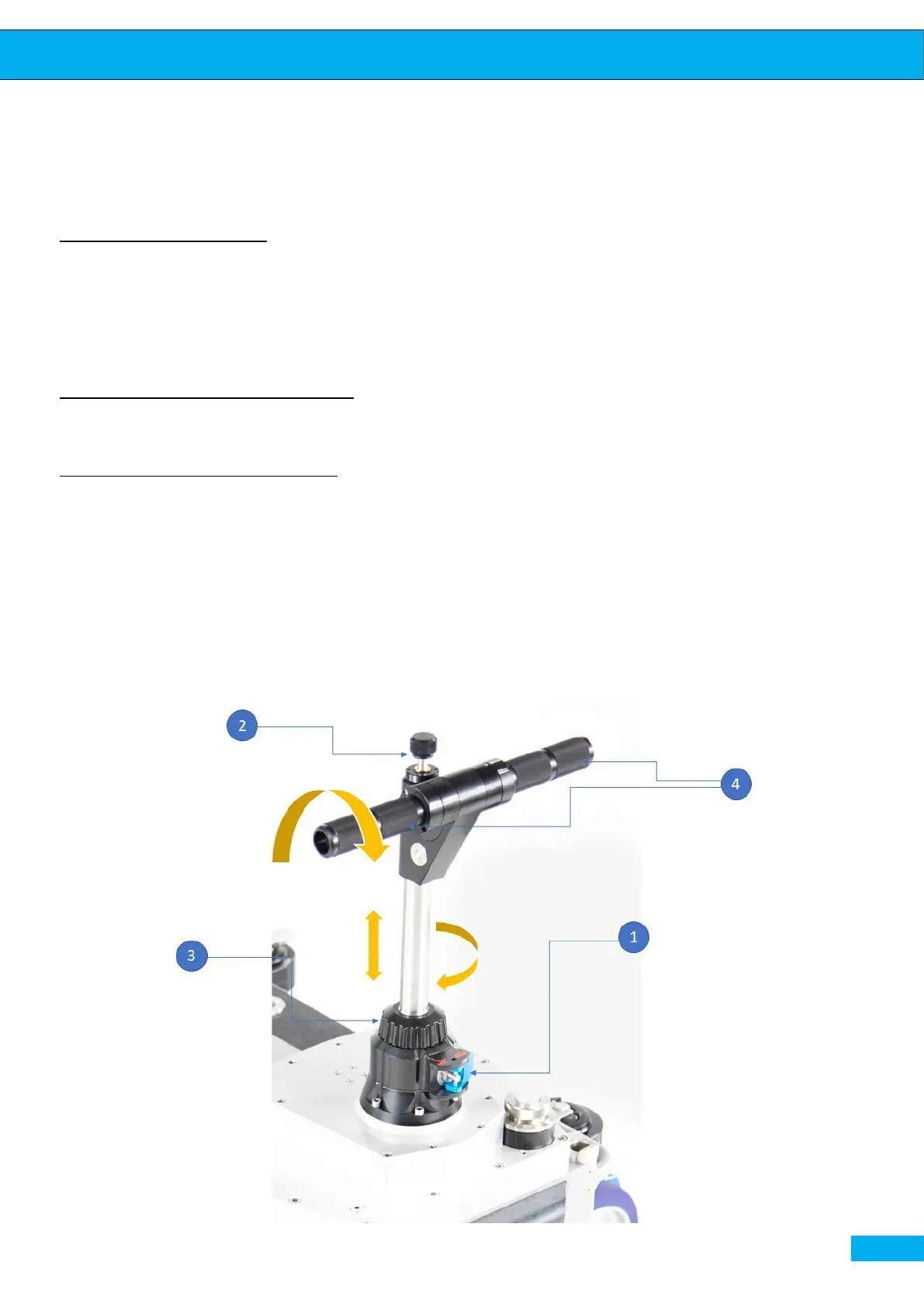

Steering column. Column lock, gear change rings and knurled fixing ring nut
User Guide
