Small arms rotation

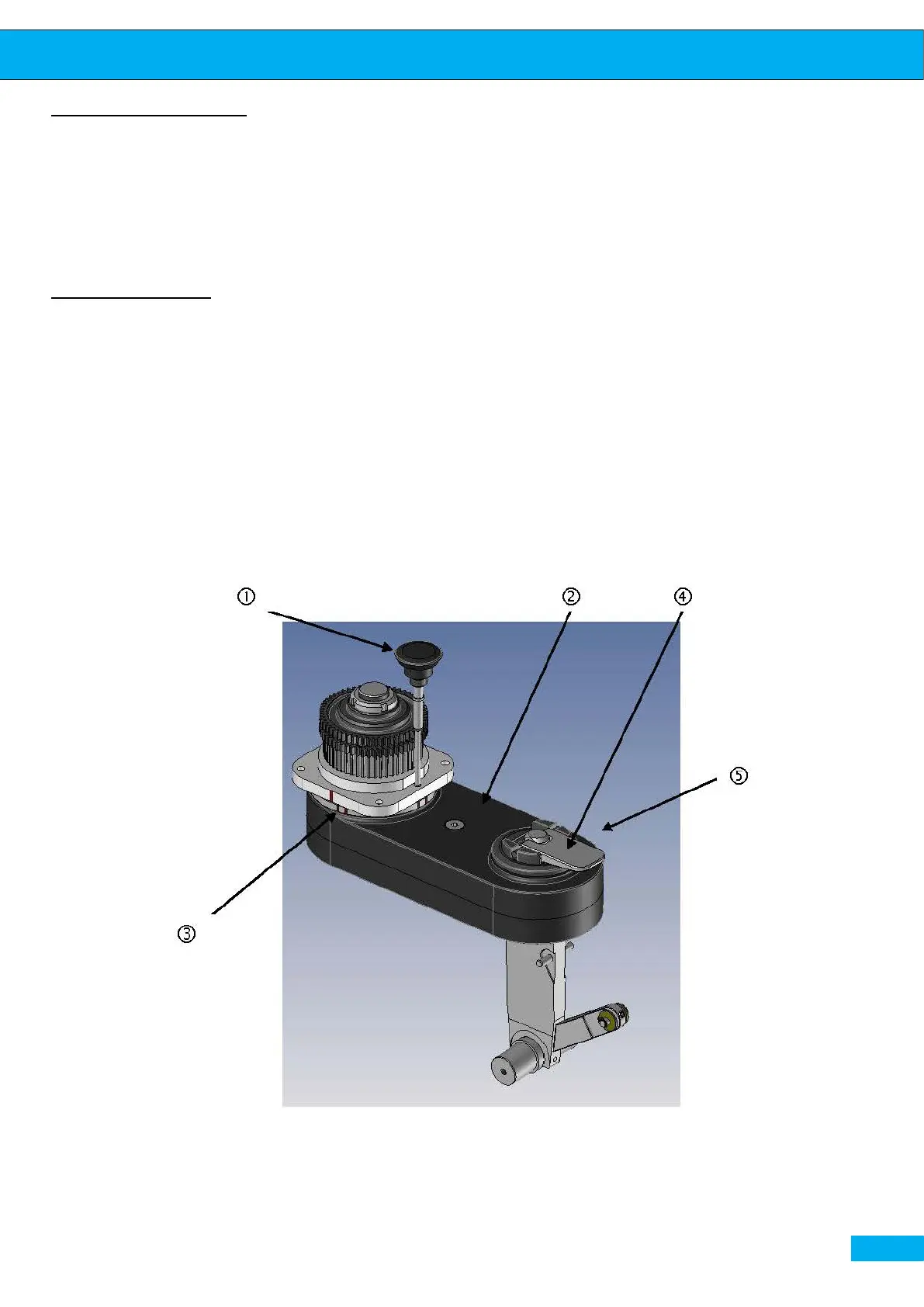

1. Lift the xing pin -1-
2. Rotate the small arm -2- until the desired reference mark -3-.
3. Insert the xing pin -1- again.
4. Repeat the operation on all four arms.
Use on the track
1. Put the small arms into the Position C.
2. Lift the front right and rear left pins 1.
3. Loosen the levers (4) of the four wheel axis.
4. Lock the steering column.
5. Before moving the dolly on the ground, insert the pins 1, lock four levers (4) and
release the steering column. Now the dolly is ready to work on the ground.
