pag. 19
User Guide
Work on the 620mm track transversely

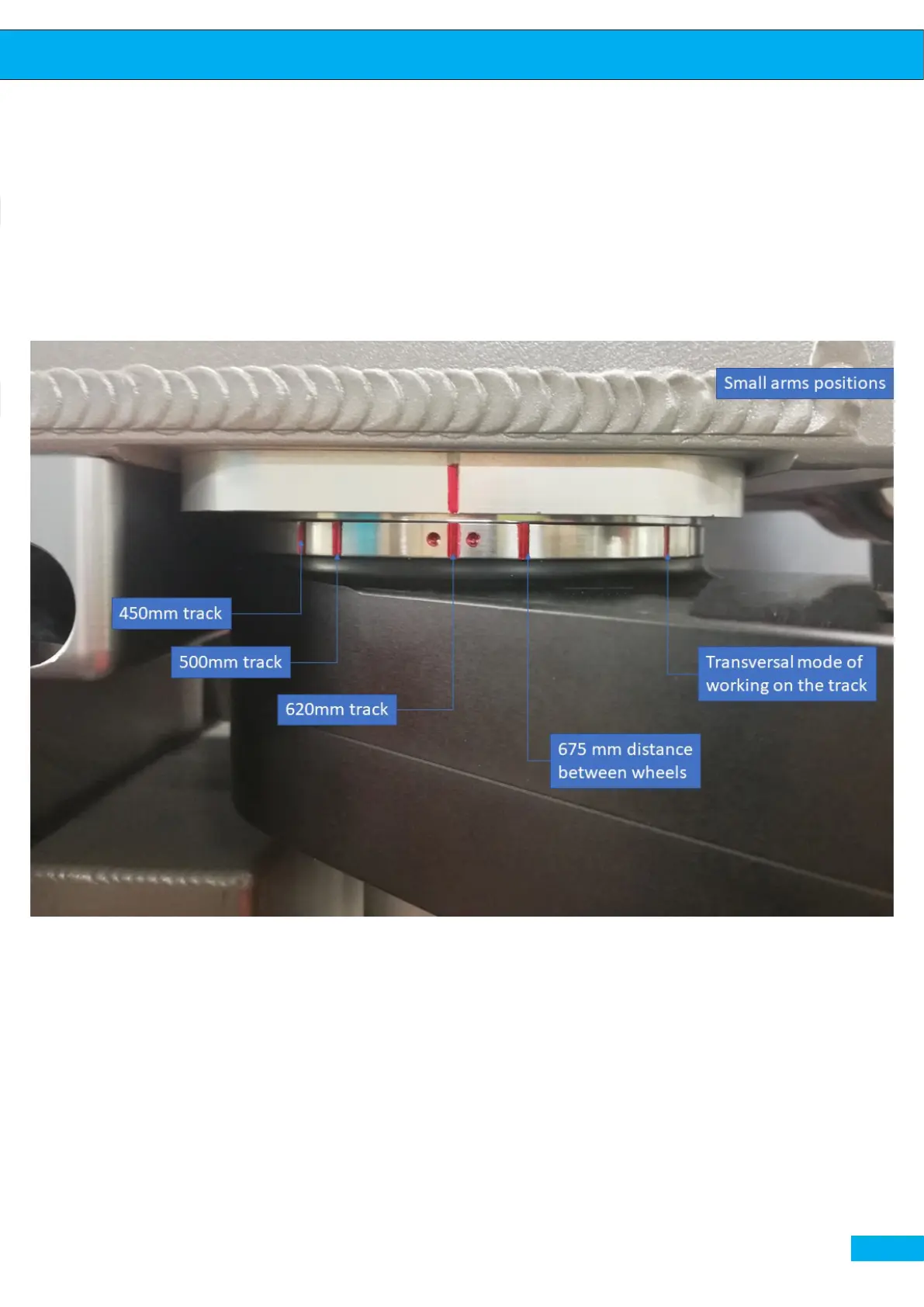

Alignment of the ring nut in the 5 available positions. From left to right, 450mm track, 500mm track, 620mm standard track, 675mm
distance between the wheels, and the final position with the small arms perpendicular to the longitudinal axis of the dolly (transversal
placement of the dolly on 620mm track)
