27

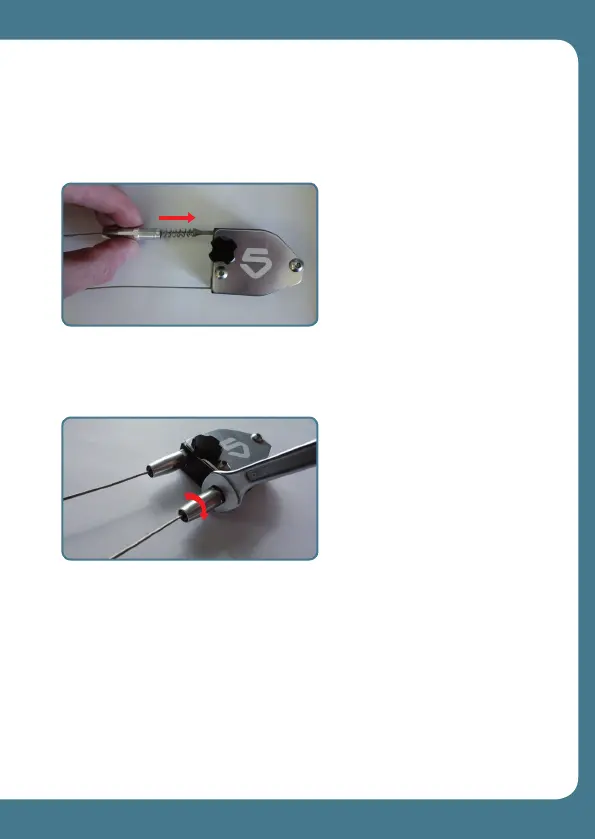

12. Mount the return springs with their thinner, cramped part ahead onto
the shifter cables, followed by the cable retainers with their thread facing
towards the shiftbox.
13. Carefully push the return springs with the cable retainers into
the housing. Tighten the cable retainer with the wrench using a
max. clamping torque of 1 Nm.
14. Test the functionality of the shifting unit by alternately pulling
the shifter cables.
1 Nm
ENGLISH
