CIOKS LINK range power supplies underneath or on top of a Pedaltrain board.
Page 8
MAda – Mains Adapter incl. mounting kit

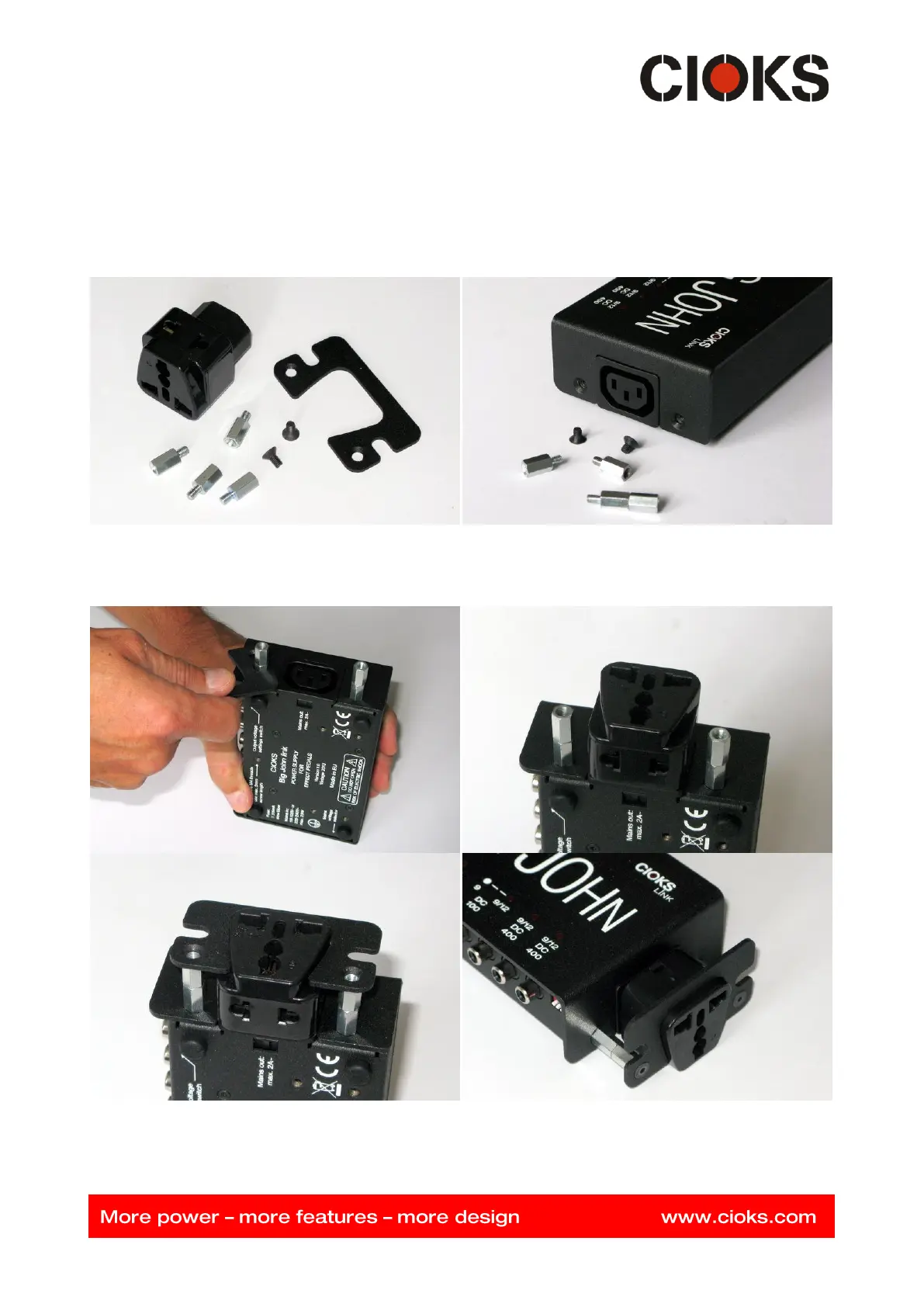

The first picture shows what is included with the MAda – mains adapter incl. the mounting kit.
To attach the adapter using the mounting kit you need to remove the two screws on the same side of the
power supply where the AC mains courtesy outlet is located. Screw the four stand-offs together into two
pairs as shown.
Then attach the pairs of stand-offs to the power supply and tighten using the bracket as a wrench. Plug in
the adapter and fasten the bracket on top of it using the included two screws.
