CIOKS LINK range power supplies underneath or on top of a Pedaltrain board.
Page 9

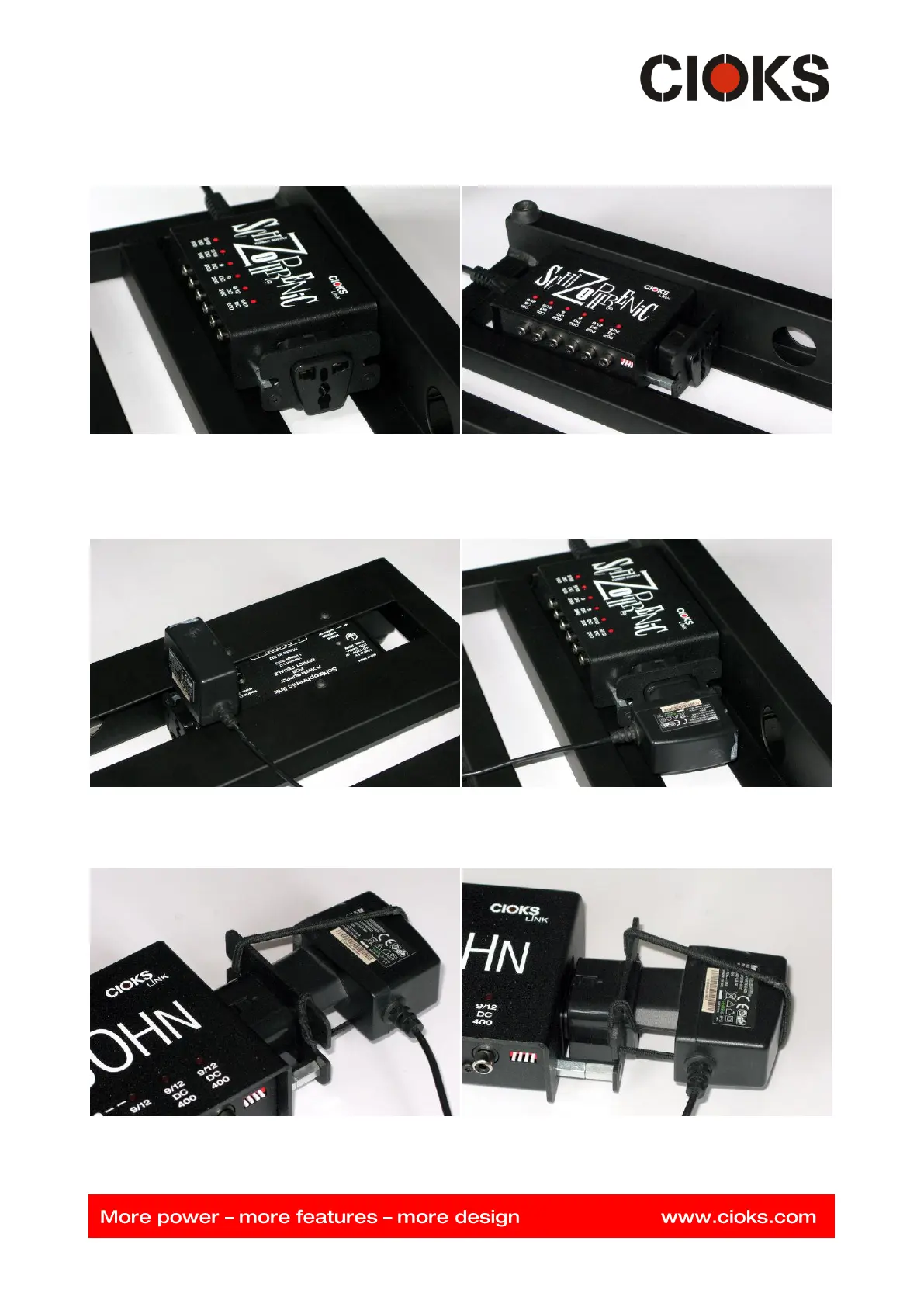

The next two pictures show the mains adapter attached to the Schizophrenic link power supply underneath
a Pedaltrain Junior board.
When the link range power supply is mounted underneath the Pedaltrain board as described earlier in this
document, the adapter allows powering of two different devices like ex. a plug-on adapter – one plugged in
from the top and one placed underneath the board as shown on following two pictures.
To secure the connection you can use a rubber band or a cable tie to fix the adapter to the bracket as
shown below.
