Einbau- und Betriebsanleitung
Installation and Operating Instructions
Instructions de montage et de service
REact 30 - 80180
10/2018
RElog
REtrans
Bild 14
Bild 15

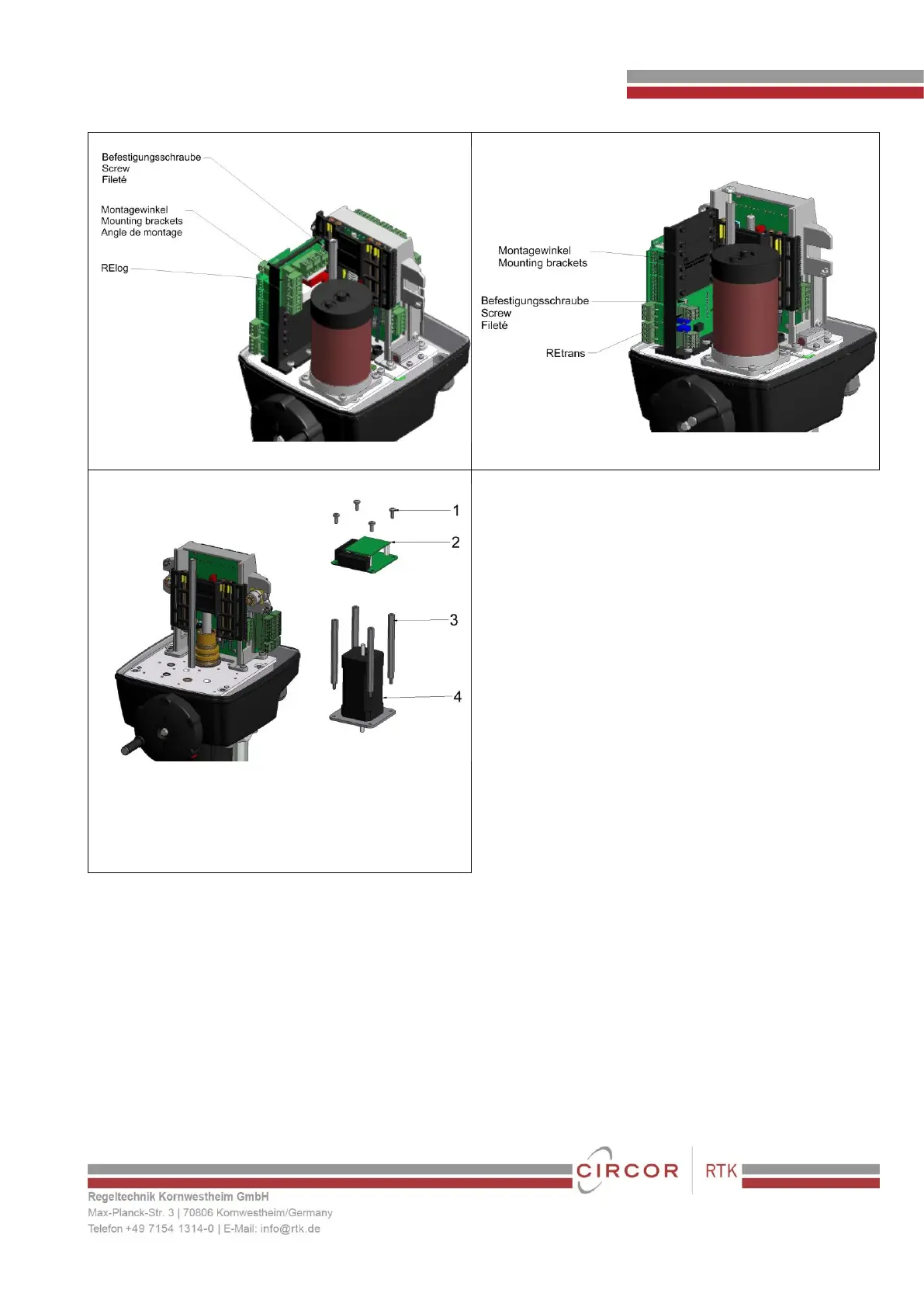

Montage der BLDC-Motorgruppe
Bild 16
1. 4x Linsenschraube / screw / vis M4x10
2. BLDC-Controller / contrôleur
3. 4x Abstandsbolzen / distance bolts / boulons d'écartement M4x65
SW7
4. BLDC-Motor
