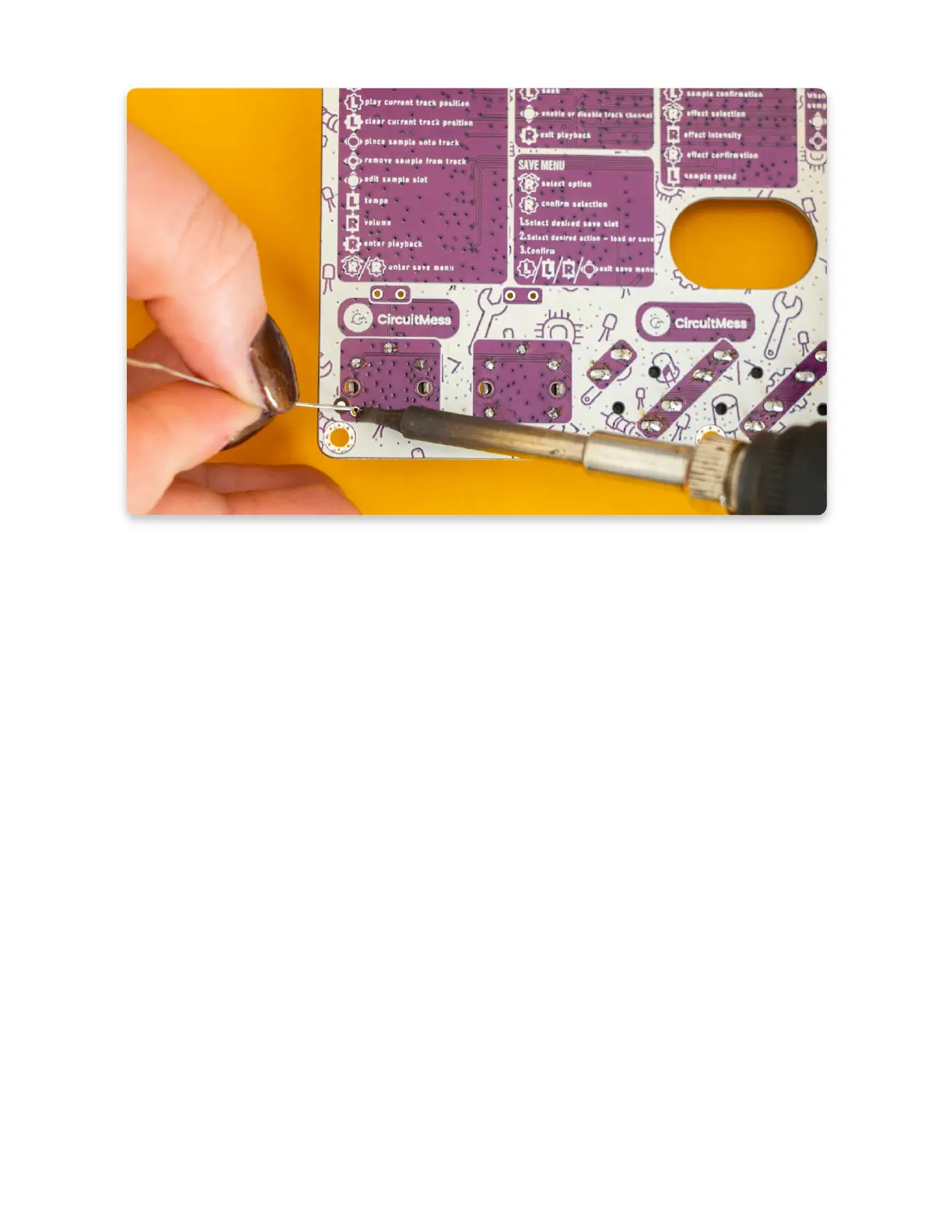

If everything seems alright, start soldering!
Part five - sliders
It's time to solder the sliding potentiometers. They are crucial components that will
later be used for playing with sounds.
There are two sliders, and each slider has three pins that need to be soldered to the
board. One pin is on one end of the slider and two on the other, so you don't have
to worry about aligning them the wrong way.
They should be located above the encoders.
