58

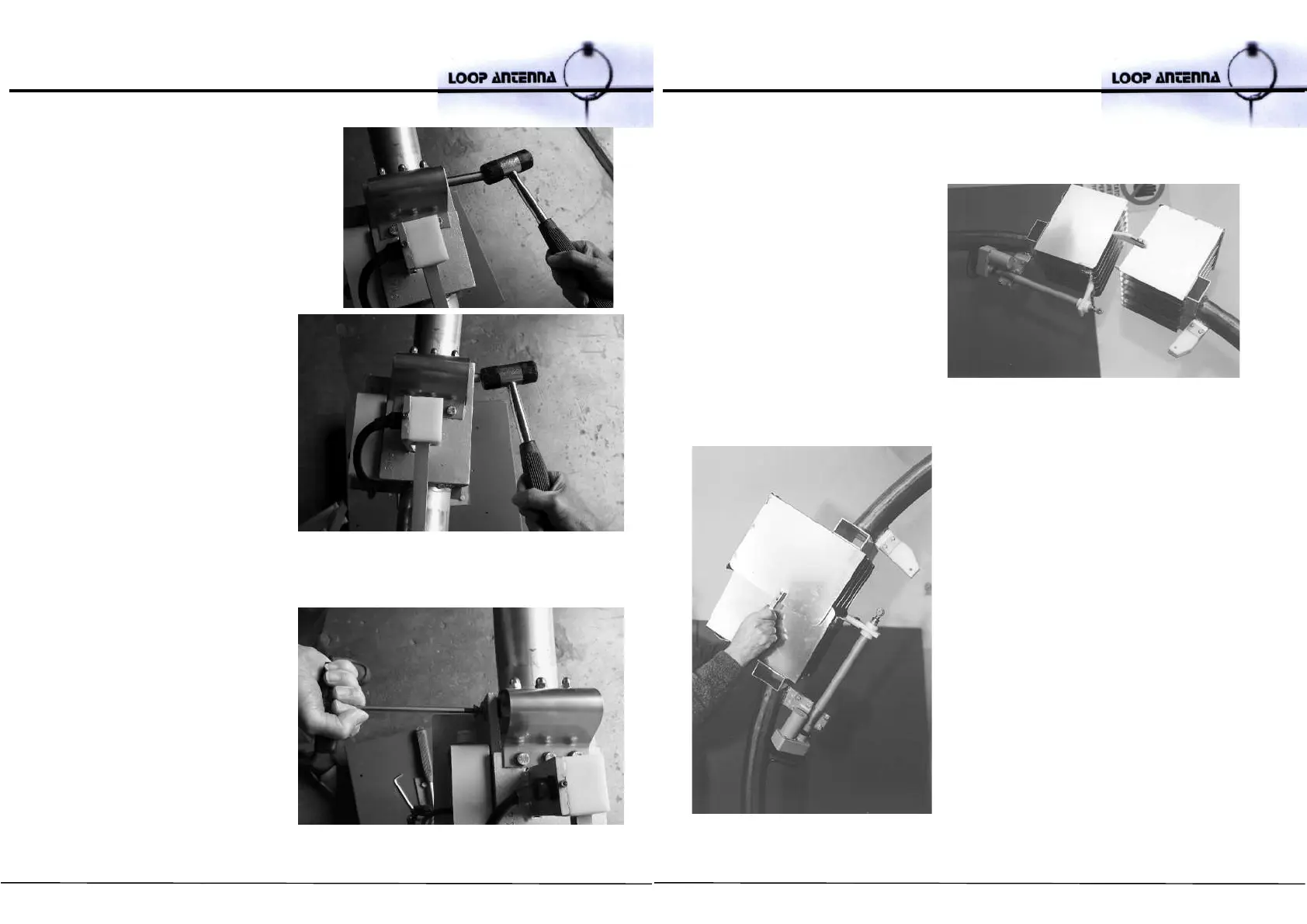

Place the bottom section of the semi-loop
(with the housed friction bearing) on the
base plate. Then insert the steel pin, which
will allow the loop of the semi-loop to
swing a few degrees.
Using a plastic hammer, fully insert
the pin. Do not use excessive force.
If necessary, gently move the semi-
loop until the pin is in place.
When the pin is fully engaged,
install the washer and the bolts.
then tighten them. A 6mm (0.23in)
wrench is provided for this.
DO NOT FORGET THE WASHER!
59
Positioning the teflon guide with
both hands, fully slide the
variable capacitor blades into one
another. Do not bend the blades
in the process.
With the capacitor fully closed, the piston-
head will enter the isolated arm. This arm is
anchored to the semi-loop as shown in the
next picture.
