48

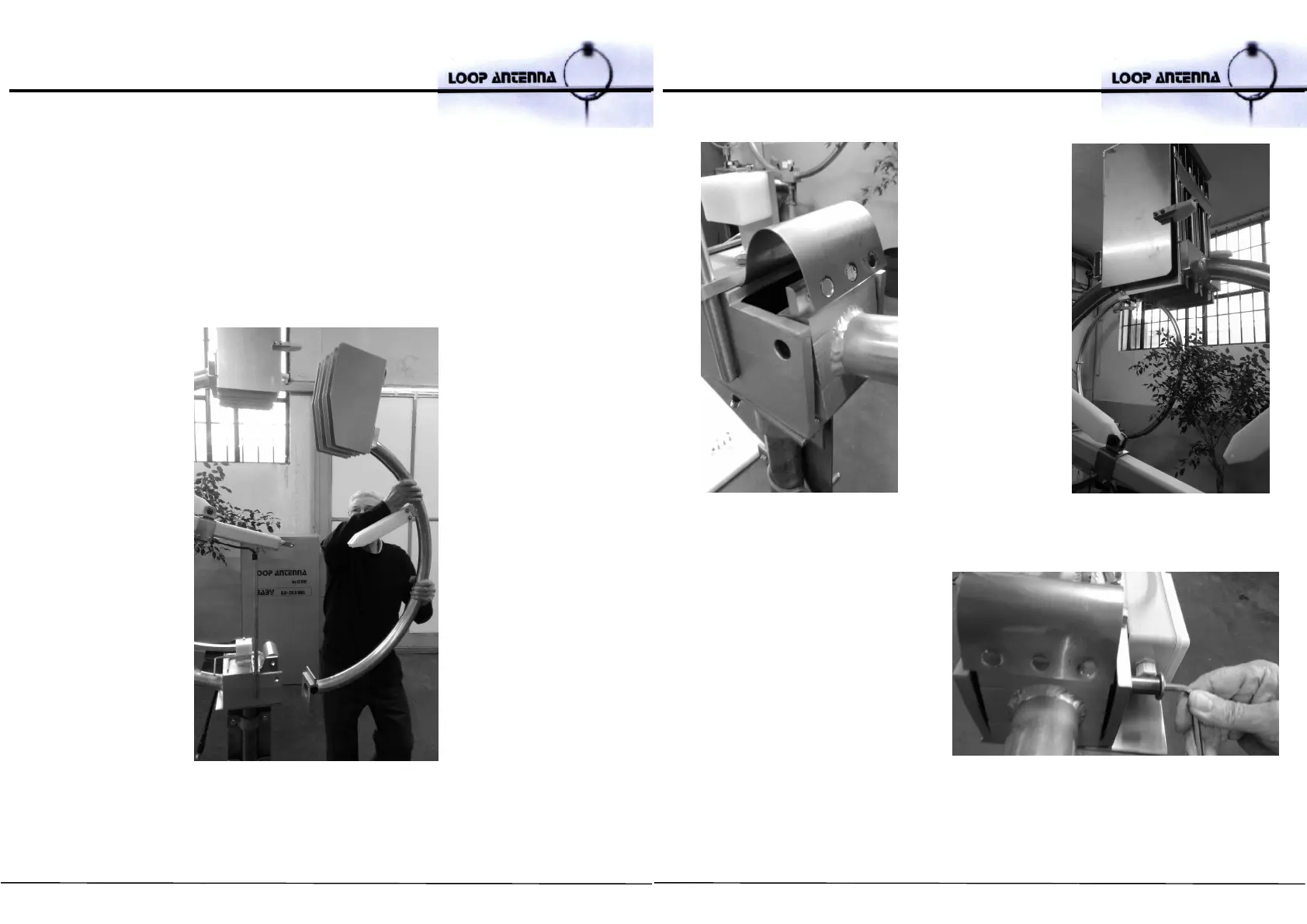

Put it on the mounting clamp.
Carefully slide one of the variable capacitor blades inside the other fully and the
junction blade over the half of the loop.
49
Gently insert the steel pin, using a
plastic hammer to secure it.
When it is fully engaged, fit the
washer and the bolt, then tighten
them.
DO NOT FORGET THE WASHER!!
