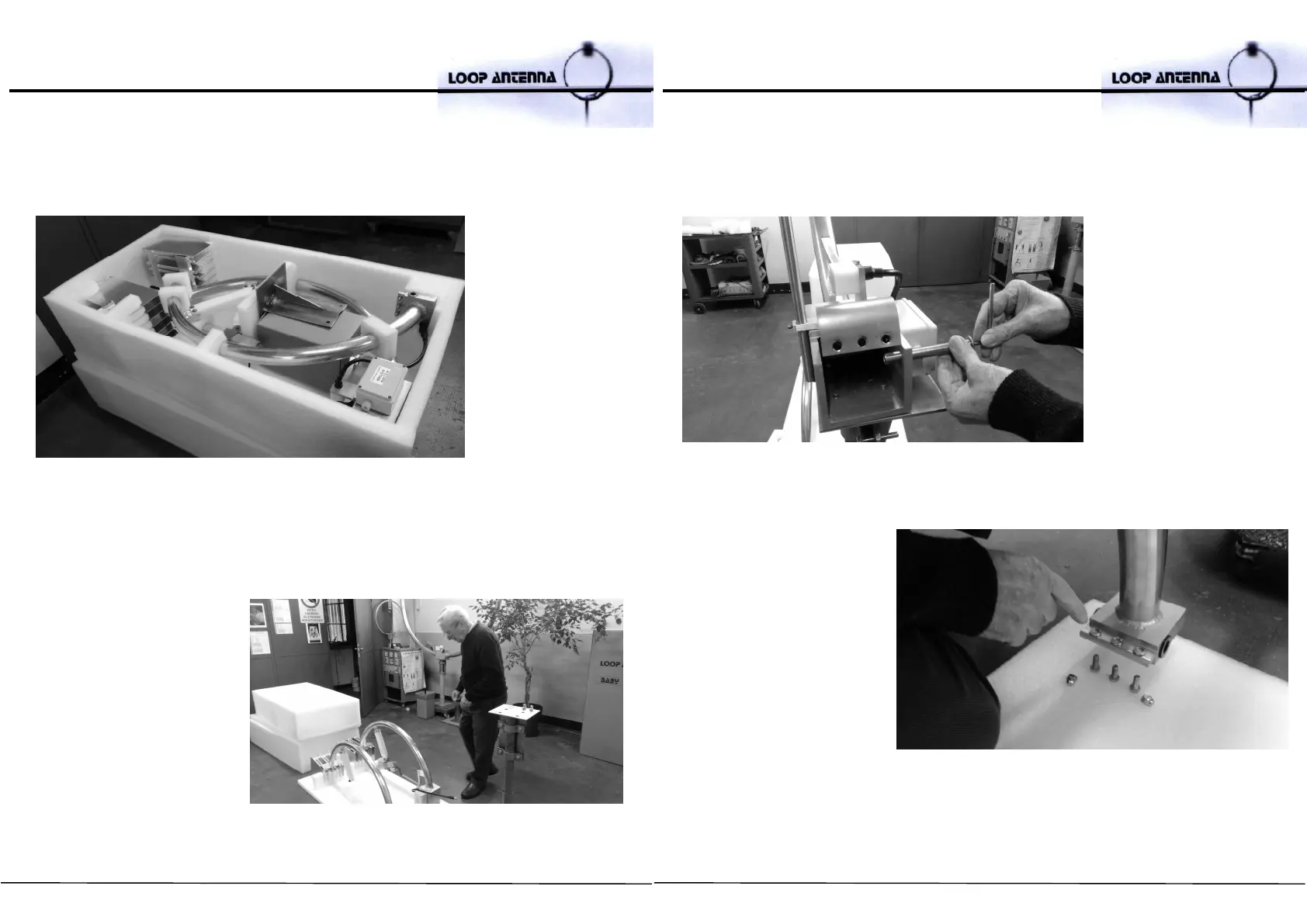

How to assemble the BABY LOOP unassembled
This is the BABY LOOP removed from the cardboard box.
First, remove the mounting clamp and the small cardboard box.
In the box, you will find the ATU loop controller and 2 hexagonal wrenches.
Take the two halves of the
loop and carefully lay them
on lid of the package.
Remove the packaging
holders from the two halves
of the loop and from the
capacitor. Mount the clamp
on a mast
47
Put the half of the loop
with the actuator on the
mounting clamp and
fasten it with the bolts.
Then, remove the steel
pin with the supplied
hexagonal wrench.
Remove the bolts from
the other half of the loop.
