12
Cisco 1721, 1760, 2621XM, 2651XM, 2691, 3725, and 3745 Modular Access Routers and 7206-VXR NPE-400 Router FIPS 140-2 Non-Proprietary
OL-6083-01
The Cisco 1721, 1760, 2621XM, 2651XM, 2691, 3725, 3745, and 7206 VXR NPE-400 Routers

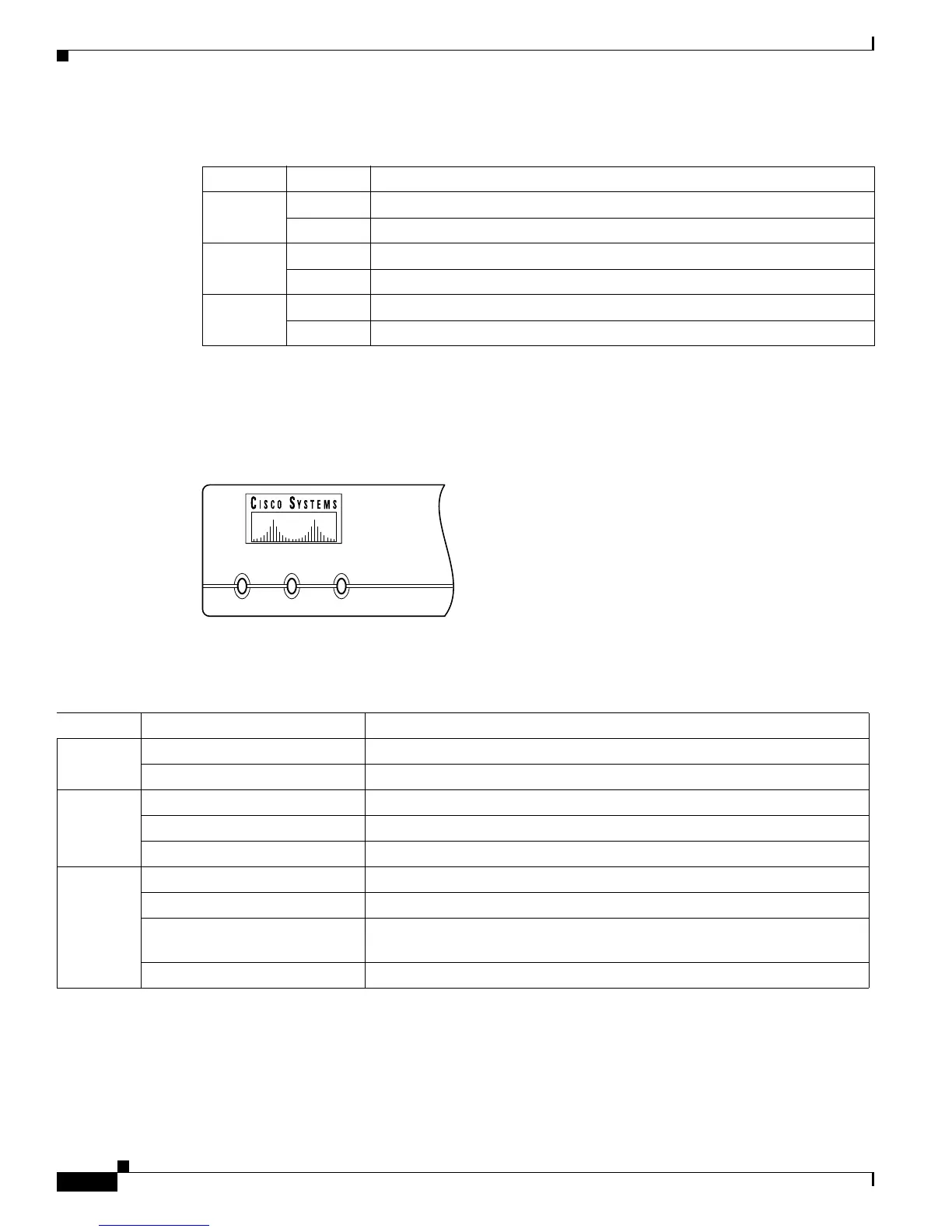

Figure 9 shows the front panel LEDs, which provide overall status of the router's operation. The front
panel displays whether or not the router is booted, if the redundant power is (successfully) attached and
operational, and overall activity/link status.
Figure 9 Cisco 2621XM and Cisco 2651XM Front Panel LEDs
Table 6 provides more detailed information conveyed by the LEDs on the front panel of the router:
All of these physical interfaces are separated into the logical interfaces from FIPS 140-2 as described in
Table 7:
Table 5 Cisco 2621XM and Cisco 2651XM Rear Panel LEDs and Descriptions
LED Indication Description
LINK Green An Ethernet link has been established
Off No Ethernet link established
FDX Green The interface is transmitting data in full-duplex mode
Off When off, the interface is transmitting data in half-duplex mode
100 Mbps Green The speed of the interface is 100 Mbps
Off The speed of the interface is 10 Mbps or no link is established
POWER RPS ACTIVITY
99496
Table 6 Cisco 2621XM and Cisco 2651XM Front Panel LEDs and Descriptions
LED Indication Description
Power Green Power is supplied to the router and the router is operational
Off The router is not powered on
RPS
1
1. RPS = Redundant Power System
Green RPS is attached and operational
Off No RPS is attached
Blink RPS is attached, but has a failure
Activity Off In the Cisco IOS software, but no network activity
Blink (500 ms ON, 500 ms OFF) In ROMMON, no errors
Blink (500 ms ON, 500 ms OFF,
2 sec between codes)
In ROMMON, error detected
Blink (less than 500 ms) In the Cisco IOS software, the blink rate reflects the level of activity
