Cisco 1721, 1760, 2621XM, 2651XM, 2691, 3725, and 3745 Modular Access Routers and 7206-VXR NPE-400 Router FIPS 140-2 Non-Proprietary
OL-6083-01
The Cisco 1721, 1760, 2621XM, 2651XM, 2691, 3725, 3745, and 7206 VXR NPE-400 Routers
Figure 13 shows the front panel LEDs, which provide overall status of the router's operation. The front
panel displays whether or not the router is booted, if the redundant power is (successfully) attached and
operational, and overall activity/link status.

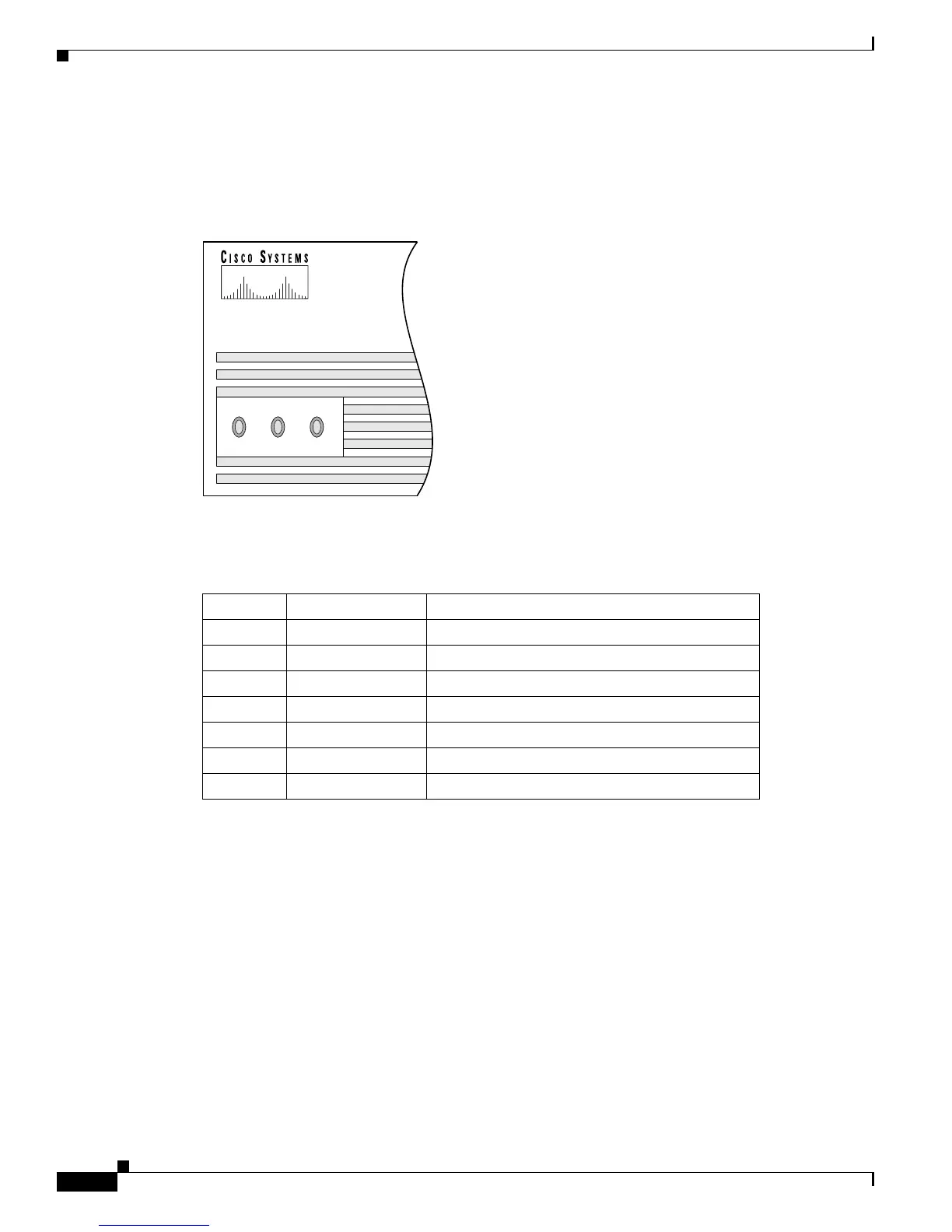

Figure 13 Cisco 2691 Front Panel LEDs
Table 9 provides more detailed information conveyed by the LEDs on the front panel of the router:
All of these physical interfaces are separated into the logical interfaces from FIPS 140-2 as described in
Table 10:
SYS
RPS
PWR ACT
99502
Table 9 Cisco 2691 Front Panel LEDs and Descriptions
LED Indication Description
PWR On Power is supplied to the router
Off The router is not powered on
SYS/RPS Rapid blinking System is booting
Slow blinking System error
On System OK
ACT Off No system activity
Blinking System activity
