Cisco 2811 and Cisco 2821 Integrated Services Router FIPS 140-2 Non Proprietary Security Policy
OL-8663-01
Cisco 2811 and Cisco 2821 Routers
The Cisco 2811 Cryptographic Module Physical Characteristics

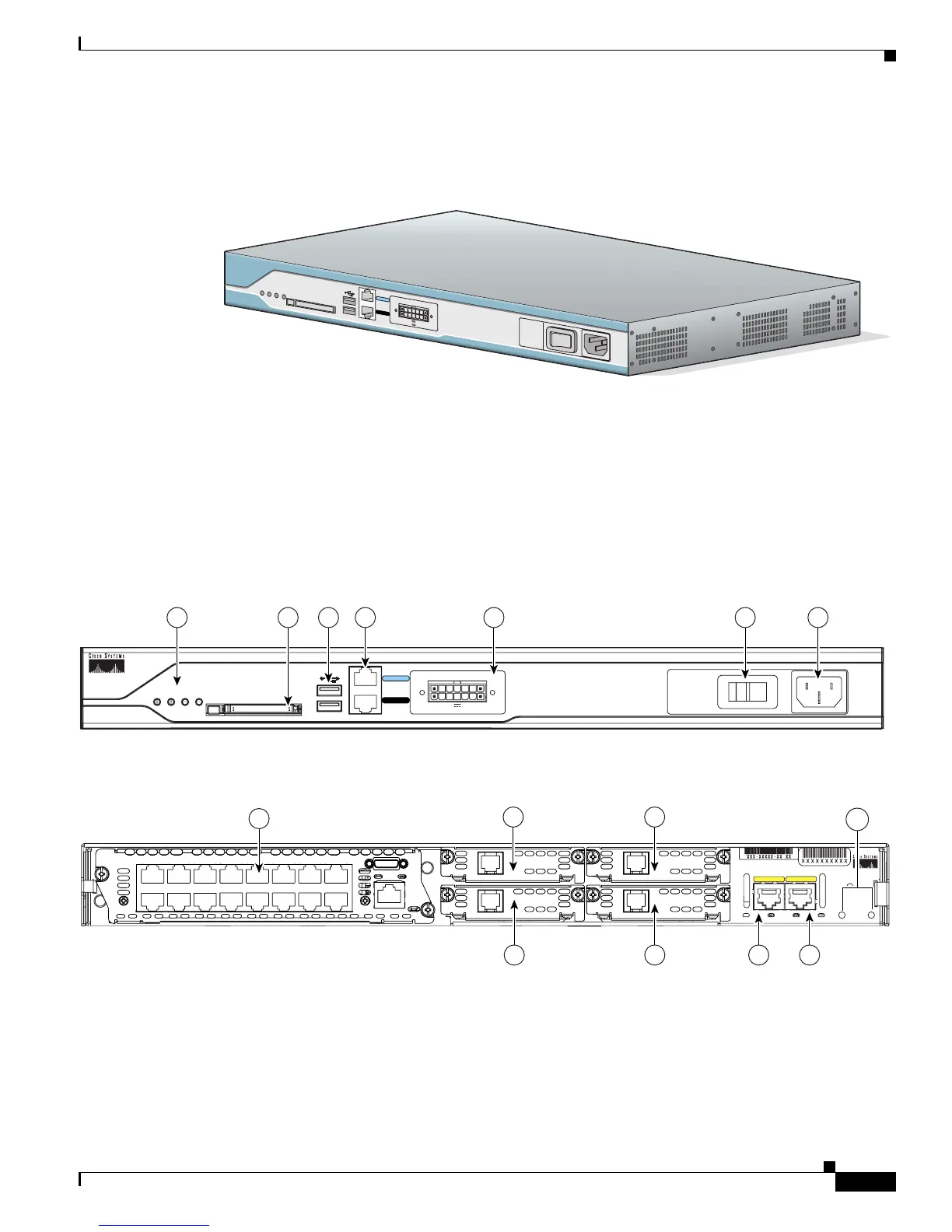

Figure 1 The Cisco 2811 router case
The Cisco 2811 router is a multiple-chip standalone cryptographic module. The router has a processing
speed of 350MHz. Depending on configuration, either the internal NetGX chip or the IOS software is
used for cryptographic operations.
The cryptographic boundary of the module is the device's case. All of the functionality discussed in this
document is provided by components within this cryptographic boundary.
The interface for the router is located on the rear and front panels as shown in Figure 2 and Figure 3,
respectively.
Figure 2 Cisco 2811 Front Panel Physical Interfaces
Figure 3Cisco 2811 Rear Panel Physical Interfaces
The Cisco 2811 router features a console port, an auxiliary port, two Universal Serial Bus (USB) ports,
four high-speed WAN interface card (HWIC) slots, two10/100 Gigabit Ethernet RJ45 ports, an Enhanced
Network Module (ENM) slot, and a Compact Flash (CF) drive. The Cisco 2811 router supports one
single-width network module, four single-width or two double-width HWICs, two internal advanced
integration modules (AIMs)
1
, two internal packet voice data modules (PVDMs), two fast Ethernet
connections, and 16 ports of IP phone power output. The Figure 2 shows the front panel and Figure 3
9
5902
Do Not Remove During Network Operation
COMPACT FLASH
CONSOLE
OPTIONAL RPS INPUT
12V 11A
AUX
SYS
PWR
AUX/
PWR
SYS
ACT
CF
-48V 4A
100-240 V~ 4A
50/60 Hz
0
1
95551
Do Not Remove During Network Operation
COMPACT FLASH
CONSOLE
0
1
OPTIONAL RPS INPUT
12V 11A
AUX
SYS
PWR
AUX/
PWR
SYS
ACT CF
100-240 V~ 2A
50/60 Hz
124567 3
A= ACT
FE 0/1
PVDM1 PVDM0 AIM1 AIM0
FE 0/0
S= SPEED
A= FDX
A= LINK
A
F
S
L
A
F
S
L
H
W
I
C
2
H
W
I
C
0
H
W
I
C
3
H
W
I
C
1
1
23
95556
45
67
1
8

Cisco 2811 Specifications

General

Full duplex	Yes
Networking standards	-
Ethernet LAN data rates	10, 100 Mbit/s
Supports ISDN connection	No
Safety	UL 60950, CAN/CSA C22.2 No. 60950, IEC 60950, EN 60950-1, AS/NZS 60950
Flash memory	128 MB
Internal memory	256 MB
I/O ports	2 x USB\\r 2 x 10/100 Base-T
Ethernet LAN (RJ-45) ports	2
Storage temperature (T-T)	-40 - 70 °C
Firewall security	Cisco IOS
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES
Product color	Blue, Stainless steel
Rack capacity	1U

Weight and Dimensions

Depth	416.6 mm
Width	438.2 mm
Height	44.5 mm
Weight	6400 g
