Installing and Upgrading Fans in the Cisco 2821 and Cisco 2851 Series Routers
78-18643-02
Upgrading the Cisco 2821 and Cisco 2851 Fan Unit
Step 2 Remove the three screws that hold the fan unit to the side of the chassis. (See number 1 in Figure 6.)

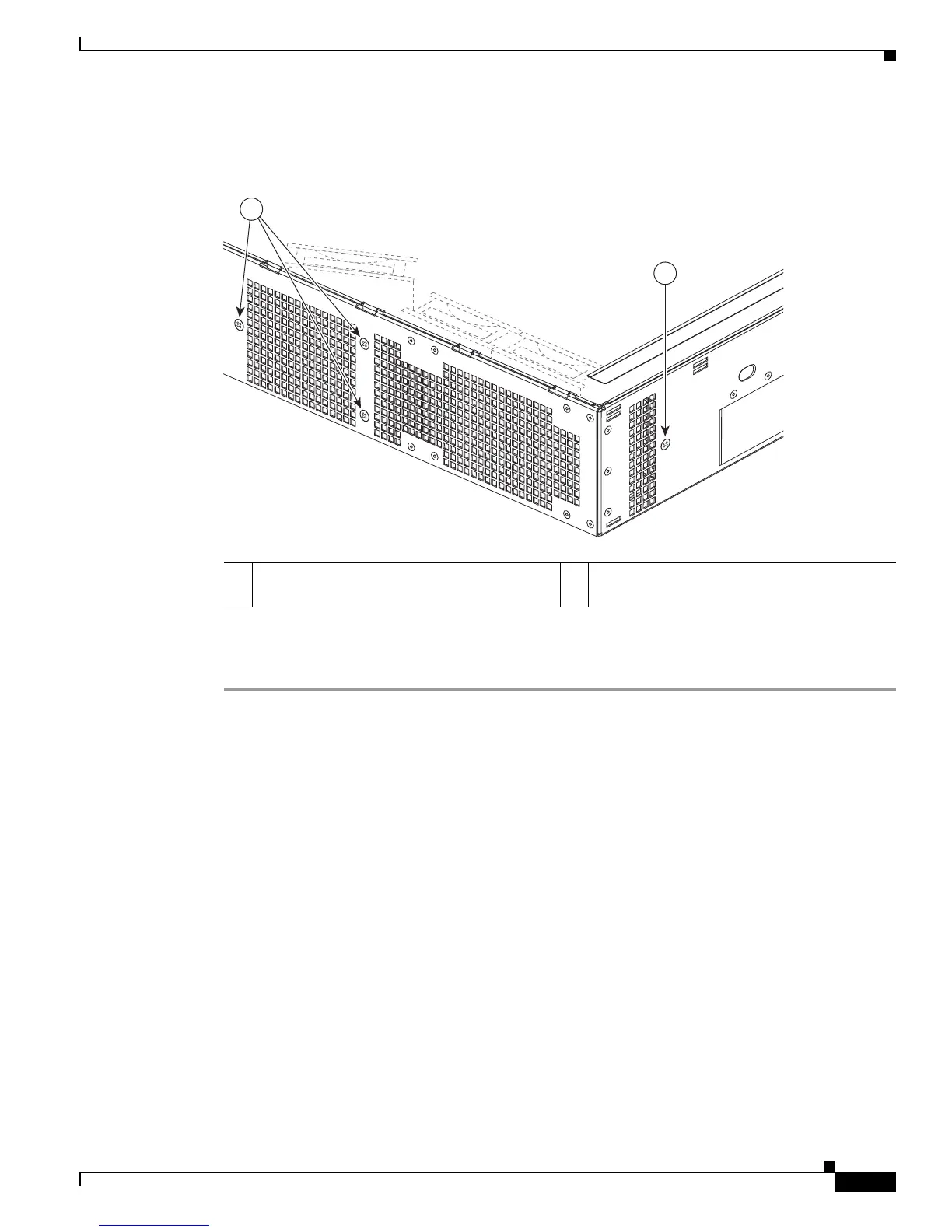

Figure 6 Removing Fan Mounting Screws from the Chassis
Step 3 Remove the one screw that holds the fan unit to the front of the chassis. (See number 2 in Figure 6.)
Step 4 Lift the fan unit out of the chassis.
1 Fan mounting screws on the side of the
chassis
2 Fan mounting screw on the front of the chassis
280571
1
2
