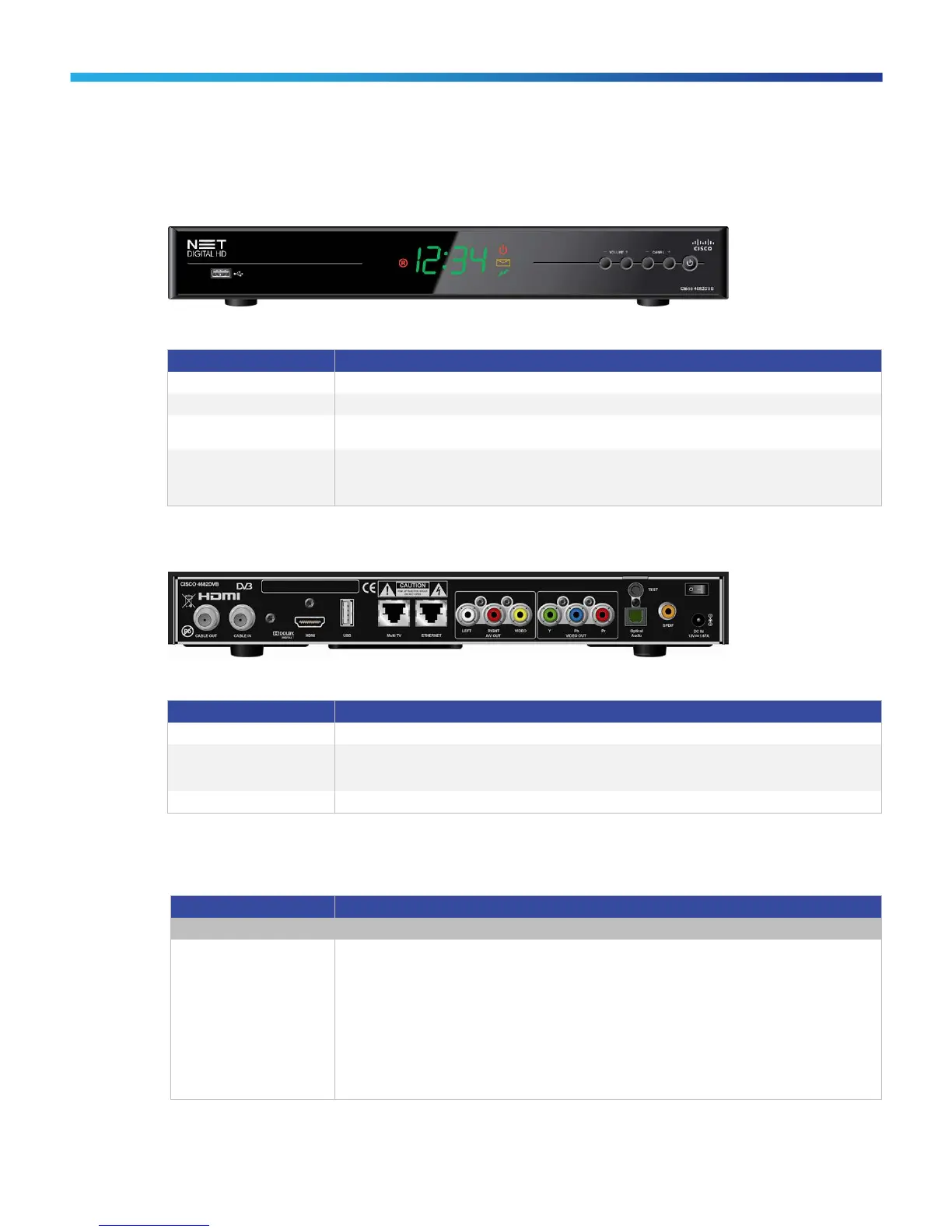

Figure 2. Cisco 4682DVB MPEG-4 HD Interactive Set-Top Front Panel (image may vary from actual product and
specification)
Table 1. Front Panel Features
Feature Description
Controls 5 buttons: ON/STANDBY, CH-, CH+, VOL-, VOL+
Clock Display 4-digit, 7-segment green display
Indicators LED indicators for Power on/standby (green/red), cable modem connection (green), message (yellow), and
recording (red)
Other ISO7816 smartcard (side of unit)
IR Receiver
USB 2.0 Host port
Figure 3. Cisco 4682DVB MPEG-4 HD Interactive Set-Top Back Panel (image may vary from actual product and
specification)
Table 2. Back Panel Connections
Feature Description
Connections In Cable In (75-Ohm female F-type connector)
Connections Out Cable Out RF bypass (75-Ohm female F-type connector), HDMI out, Analog Component (YPbPr) out, Analog
Composite Video, Audio L/R out, SPDIF Digital Audio outputs (coaxial and optical), dual Ethernet 10/100T
Outputs, USB 2.0 Host Port
Power Connector DC Input Connector for external power supply
Product Specifications
Table 3. Product Specifications
Specification Value
Audio/Video Outputs
Inputs and Outputs
●
75-Ohm female F-type connector RF input
●
75-Ohm female F-type connector RF bypass output
●
HDMI (with CEC) output
●
Analog component (YPbPr) outputs
●
Analog Composite Video
●
Audio L/R outputs
●
Dual Digital Audio outputs - optical and coaxial
●
Two 10/100BASE-T Ethernet ports
●
Two USB 2.0 host ports

Cisco 4682DVB Specifications

General

Brand	Cisco
Model	4682DVB
Category	Set-top boxes
Language	English
