4-11
Cisco Secure Router 520 Series Hardware Installation Guide
OL-12892-01
Chapter 4 Router Installation
Connecting an ADSL Line—ADSLoISDN Port
Figure 4-8 shows the ADSLoISDN port on the router connected to a cable wall jack using a splitter.

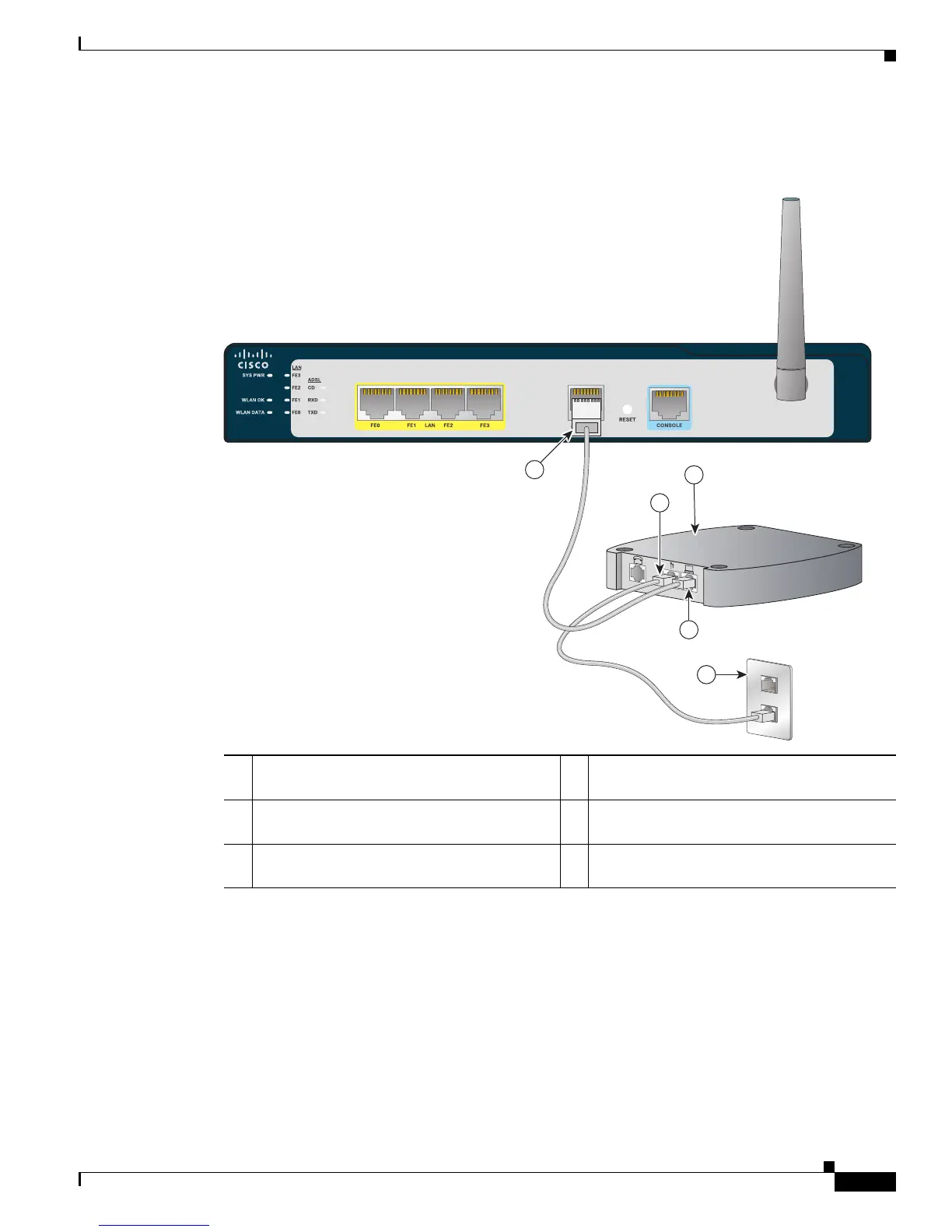

Figure 4-8 Connecting the ADSLoISDN Port to an ADSL Line
Cisco Secure Router 500 Series
231445
2
1
4
3
5
1 ADSL splitter (provided by the DSL service
provider)
2 One end of the ADSL cable connects to the
router
3 Other end of the ADSL cable connects to the
splitter
4 RJ-11 end of an unshielded Category 5 cable
connects to the splitter
5 Other end of the unshielded Category 5 cable
connects to the wall jack
