Cisco ASA 5506-X Mount The Chassis

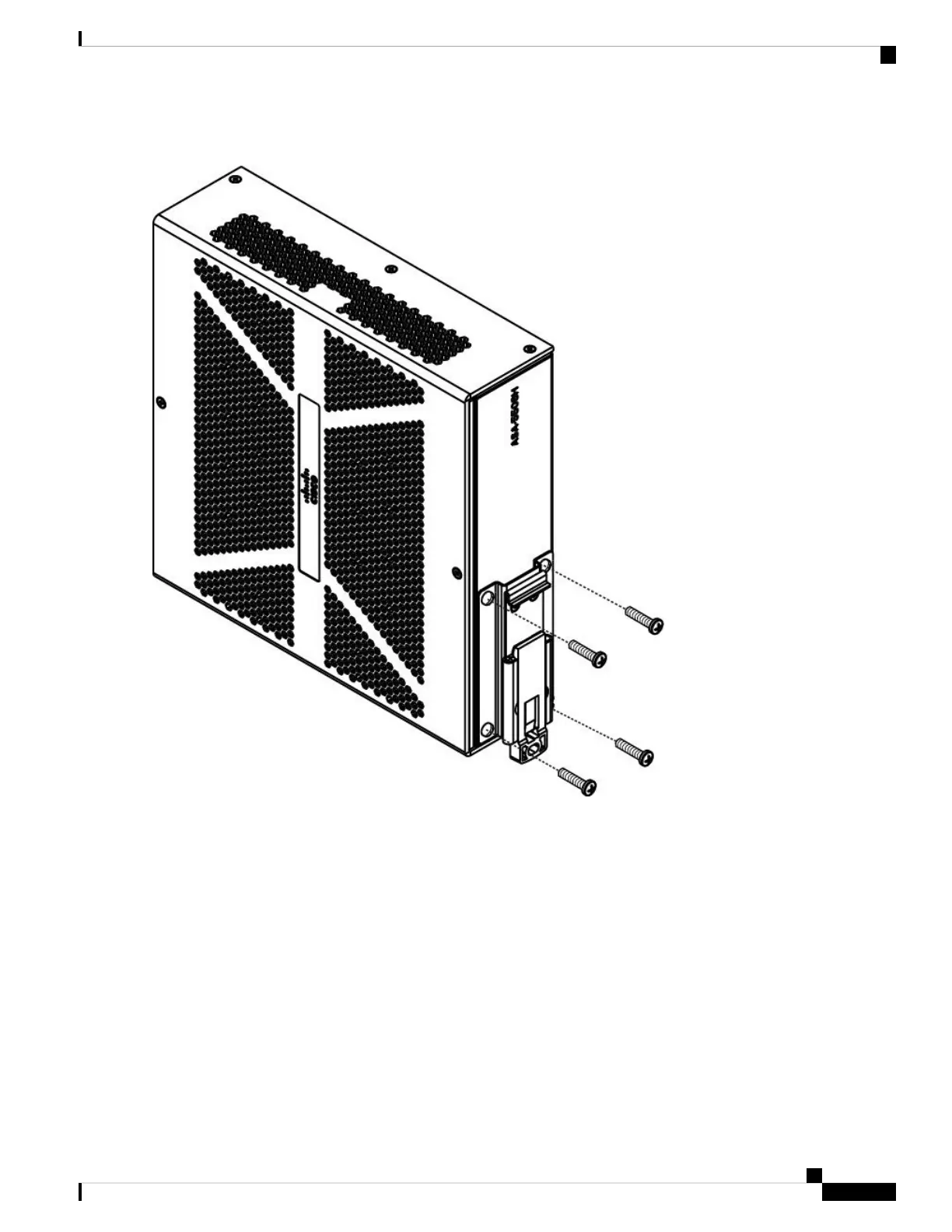

Figure 8: Attach the DIN Rail Bracket to the ASA 5506H-X
Step 2 Locate the plastic tab on the end of the DIN rail bracket that extends past the chassis. Press the tab in and slide the plastic
latch piece out while the tab is pressed down to put it into the locked position.
Step 3 Turn the chassis sideways so that the power connector is near the top.
Step 4 Position the rear edge of the chassis directly in front of the DIN rail making sure that the DIN rail fits in the space between
the plastic latch and the metal hook.
Step 5 Position the chassis so that the hook on the DIN rail bracket hooks onto the top edge of the DIN rail. The weight of the
chassis can rest on the hook temporarily while the DIN rail bracket latches are secured.
Step 6 Push the DIN rail bracket latch up when the chassis is over the DIN rail to secure it. This snaps the latch into the closed
position which locks it onto the DIN rail.
Mount the Chassis
9
Mount the Chassis
Install the ASA 5506H-X in a DIN Rail

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
