4. Deploy the Firepower Threat Defense in Your Network
6
Procedure
1. Connect the GigabitEthernet 1/1 (outside) interface to your ISP/WAN modem or other outside device. By
default, the IP address is obtained using DHCP, but you can set a static address during initial configuration.
2. Connect a local management workstation to GigabitEthernet 1/2 (or another of the inside bridge group
member interfaces).
3. Configure the workstation to obtain an IP address using DHCP. The workstation gets an address on the
192.168.1.0/24 network.
Note: You have a couple of other options for connecting the management workstation. You can also directly
connect it to the Management port. The workstation gets an address through DHCP on the 192.168.45.0/24
network. Another option is to leave your workstation attached to a switch, and attach that switch to one of the
inside ports such as GigabitEthernet1/2. However, you must ensure that no other device on the switch's
network is running a DHCP server, because it will conflict with the one running on the inside bridge group,
192.168.1.1.
Version 6.1

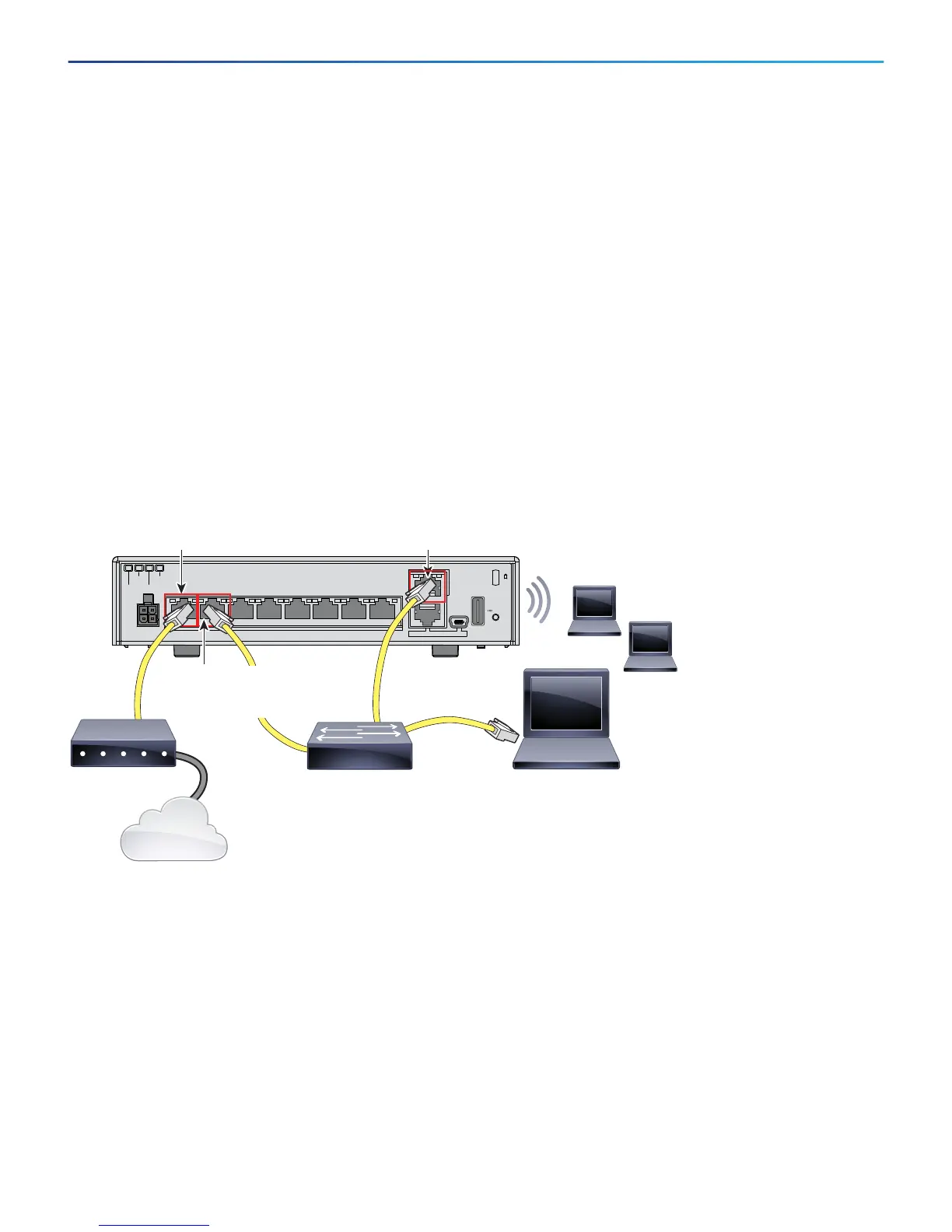

Figure 7 ASA 5506W-X (with Wi-Fi), 5506-X (without Wi-Fi) for Version 6.1.
USB
RESET
GE MGMT
LS
SLS LS LS LS LS LS LS L
Status
Power Active
Powe r
12VDC, 5A
12345678
wLAN
CONSOLE
GigabitEthernet 1/1
outside, DHCP from Modem
Management 1/1
192.168.45.45
Layer 2 Switch
Wireless Clients
(from DHCP)
192.168.10.x
WAN Modem
Management Computer
DHCP from inside:192.168.45.x
GigabitEthernet 1/2
inside, 192.168.45.1
(Gateway)
GigabitEthernet 1/9 (internal)
wifi, Access Point (from DHCP)
192.168.10.2
Internet

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
