Cisco Firepower Threat Defense for the ASA 5506-X Series Using Firepower Device Manager Quick Start Guide
4. Deploy the Firepower Threat Defense in Your Network
5
Connect the Interfaces
The default configuration assumes that certain interfaces are used for the inside and outside networks. Initial
configuration will be easier to complete if you connect network cables to the interfaces based on these
expectations. To cable the above scenario on the ASA 5506-X series, see the following illustrations.
Note: The following illustrations show a simple topology using a management computer connected to the inside
network. Other topologies can be used and your deployment will vary depending on your basic logical network
connectivity, ports, addressing, and configuration requirements.
Version 6.2

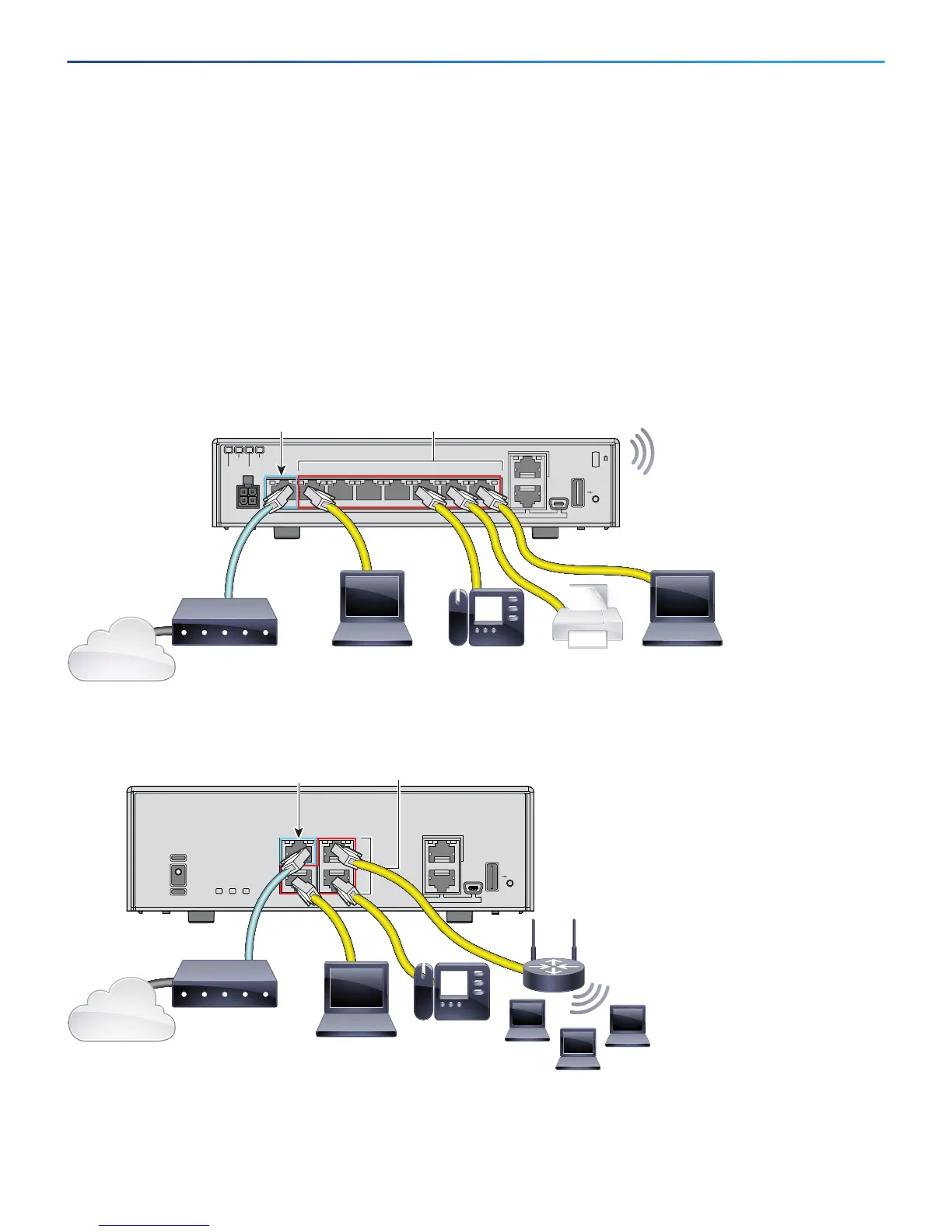

Figure 5 ASA 5506W-X (with Wi-Fi), 5506-X (without Wi-Fi) for Version 6.2.
Figure 6 ASA 5506H-X for Version 6.2.
USB
RESET
GE MGMT
LS
SLS LS LS LS LS LS LS L
Status
Power Active
Power
12VDC, 5A
12345678
wLAN
CONSOLE
GigabitEthernet 1/1
outside, DHCP from Modem
Wifi: See
quick start guide
Internet
WAN Modem
GigabitEthernet 1/2-1/8 Bridge Group
inside, 192.168.1.1
Management Computer
DHCP from inside: 192.168.1.x
Power
12VDC, 5A
Power
Status
Active
USB
RESET
GE MGMT
LS
CONSOLE
4
3
2
1
GigabitEthernet 1/1
outside, DHCP from Modem
GigabitEthernet 1/2-1/4 Bridge Group
inside, 192.168.1.1
Management Computer
DHCP from inside: 192.168.1.x
Internet
WAN Modem
